EN - DPF Monitor PRO – DPF FAP Regeneration Monitor OBD2
DPF Monitor PRO is a standalone touchscreen monitor for DPF/FAP regeneration and engine parameters. Via an OBD2 BLE adapter, the device displays, among other things, soot level, filter temperatures, differential pressure, distance since the last regeneration, and the current regeneration status.
The monitor automatically connects to the vehicle after startup and does not require a phone or an app. Voice notifications inform the driver when DPF/FAP regeneration starts, finishes, or is interrupted. Profiles are available for selected Hyundai, Kia, Volkswagen, Skoda, Audi, SEAT, Peugeot, and Citroën vehicles.
Ceny podane bez kosztów dostawy.
Ceny podane bez kosztów dostawy.
Wybierz wariant produktu:
Poszczególne warianty mogą różnić się ceną
Zapytaj o produkt
Administratorem danych osobowych jest MATWAY ELECTRONICS Mateusz Gawroński. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Kod produktu: A078-768AB_20260805193321
Opis
☰ Sections
Important information before purchase
Due to high demand, the standard order processing time may be extended. Each device is prepared and tested before dispatch.

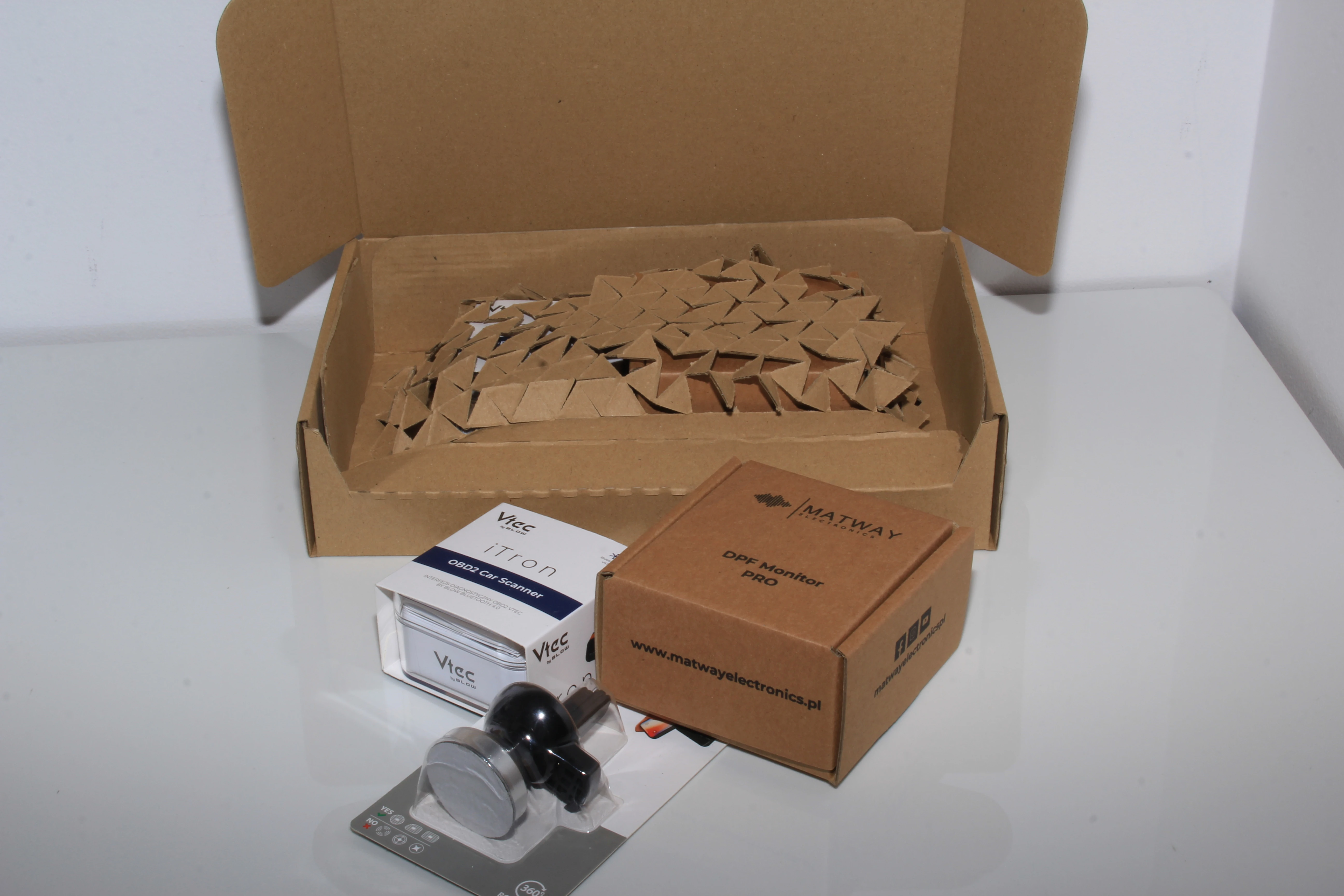

The adapter is optional. If you already have a compatible Bluetooth 4.0 BLE adapter, you do not need to order another one.

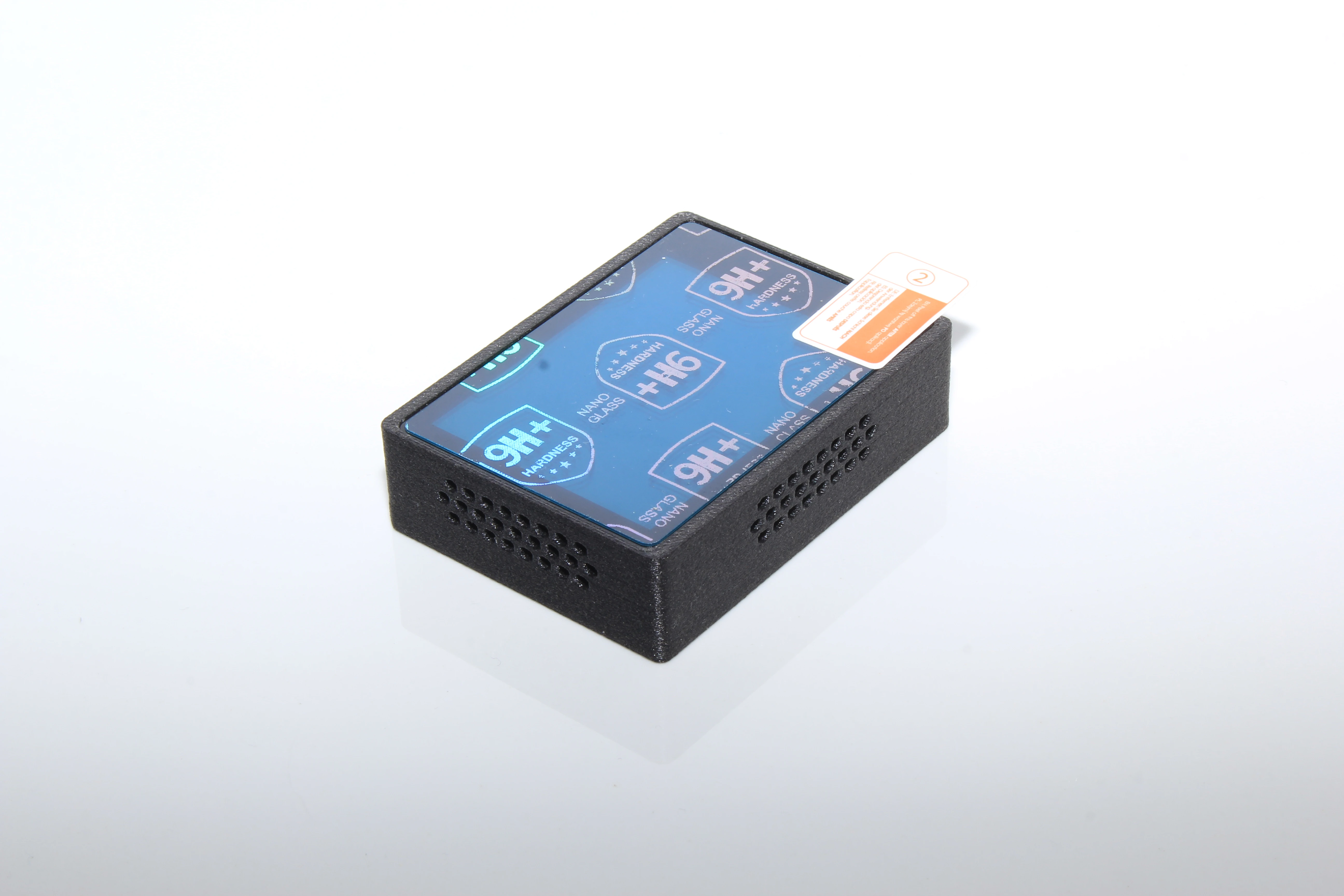

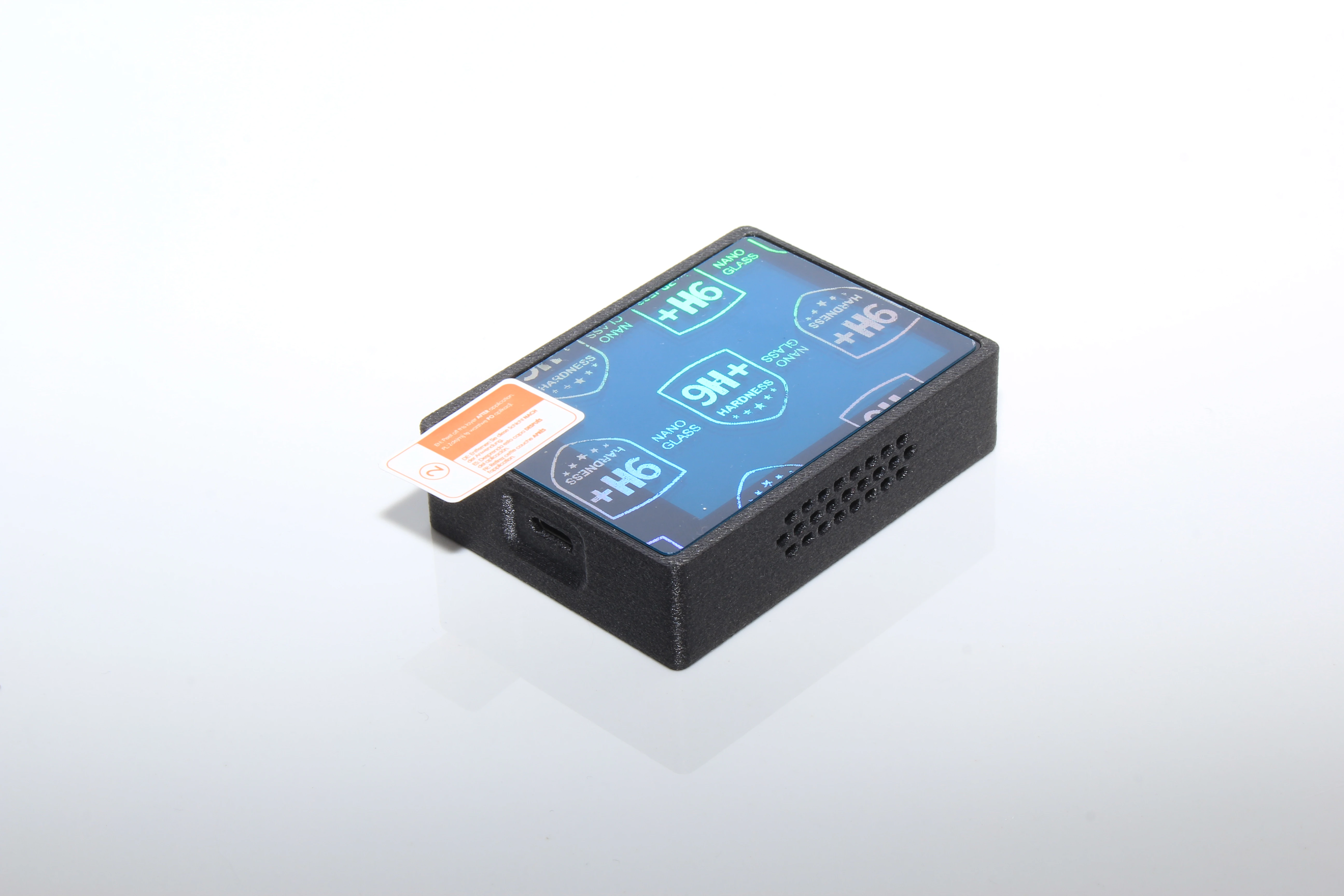

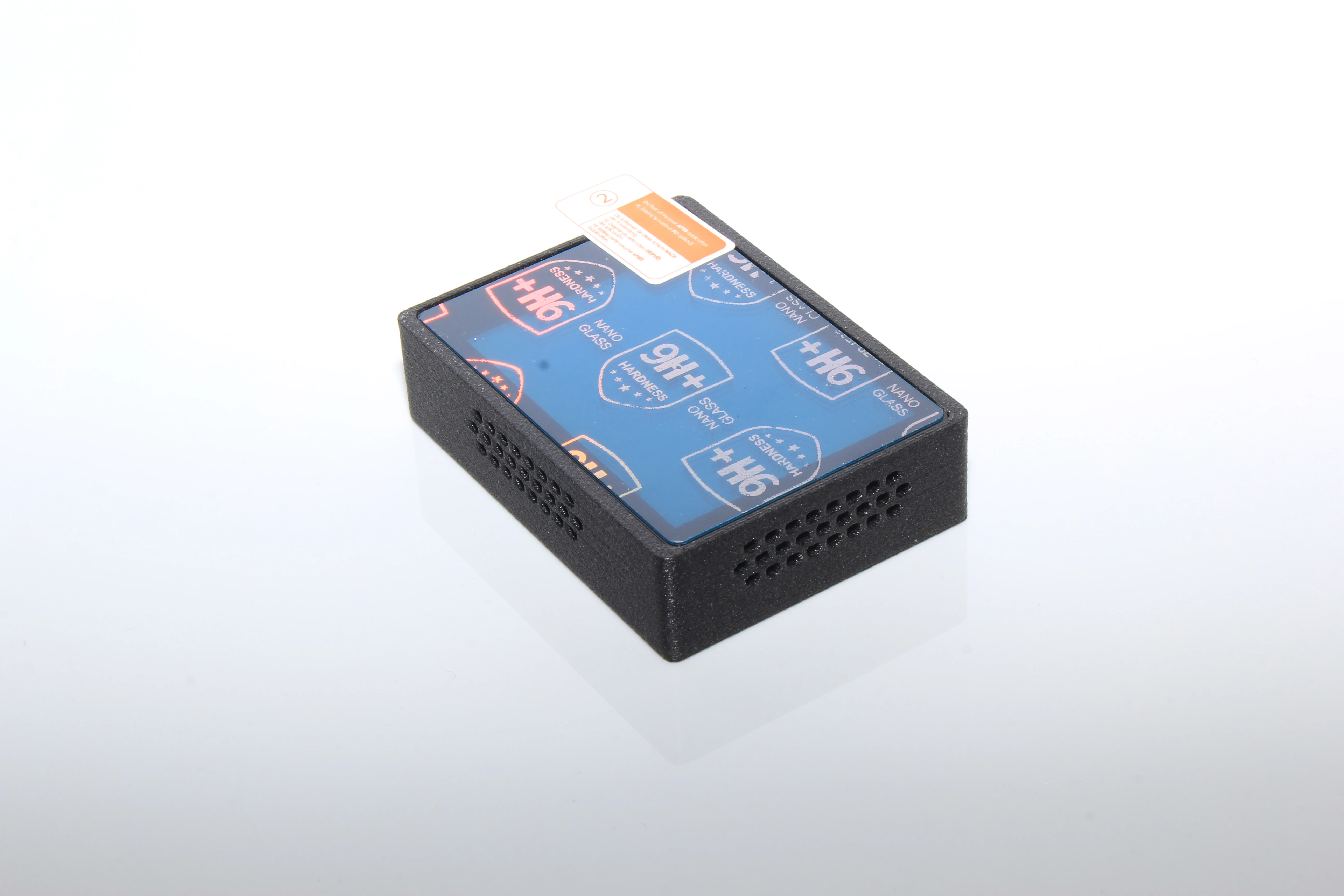

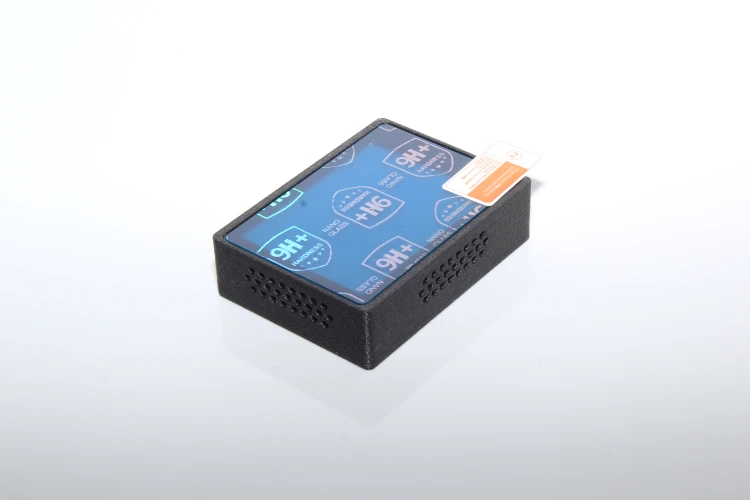

The 8H matte hybrid glass reduces reflections and fingerprints. Standard 9H tempered glass provides maximum image clarity.
Purchasing the device gives you access to all currently available profiles. The profile selected when placing the order is used for statistical purposes, and updates are free.
DPF Monitor PRO – key information at a glance
DPF Monitor PRO is a standalone DPF/FAP OBD2 monitor for real-time monitoring of the diesel particulate filter, engine parameters and — in supported vehicles — the TPMS system.
The device helps identify the start, progress, completion or interruption of regeneration. The screen may display soot level, exhaust gas temperatures, filter differential pressure, distance since the last regeneration and the current regeneration status.
Once an OBD2 BLE adapter has been saved, the monitor connects automatically when the vehicle is started. There is no need to turn on a phone, launch a diagnostic app or establish the connection manually each time.
Follow us on Facebook:
Supported languages
The menu and voice notifications are available in:
Key features of DPF Monitor PRO
Detection of the start, completion and interruption of regeneration.
Soot level, temperatures, differential pressure, distance and regeneration status.
Notifications about the start and completion of regeneration.
Daily view of the basic engine operating parameters.
Direct reading of tyre pressure and temperature in supported versions.
Wireless updates over Wi‑Fi without opening the enclosure.

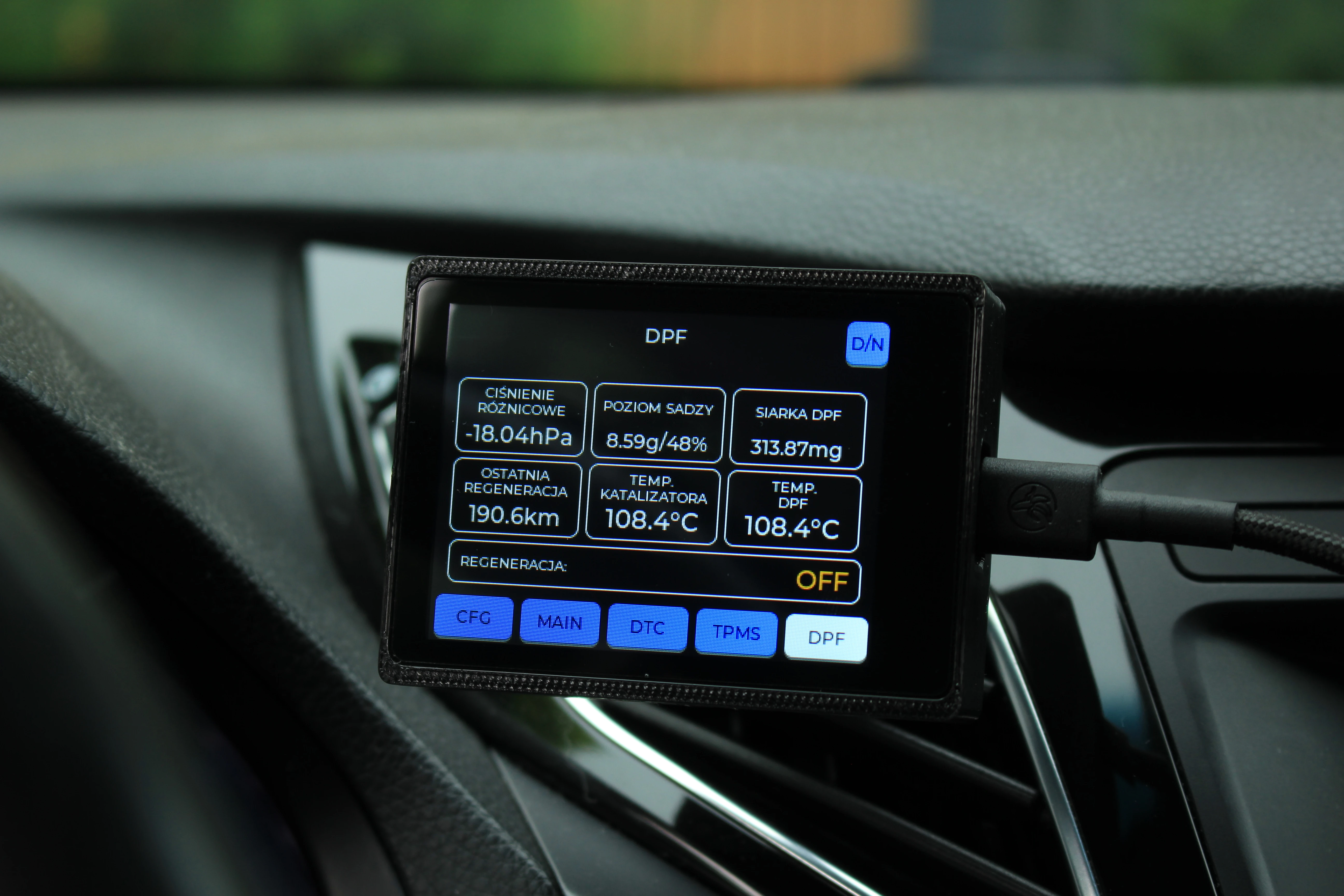

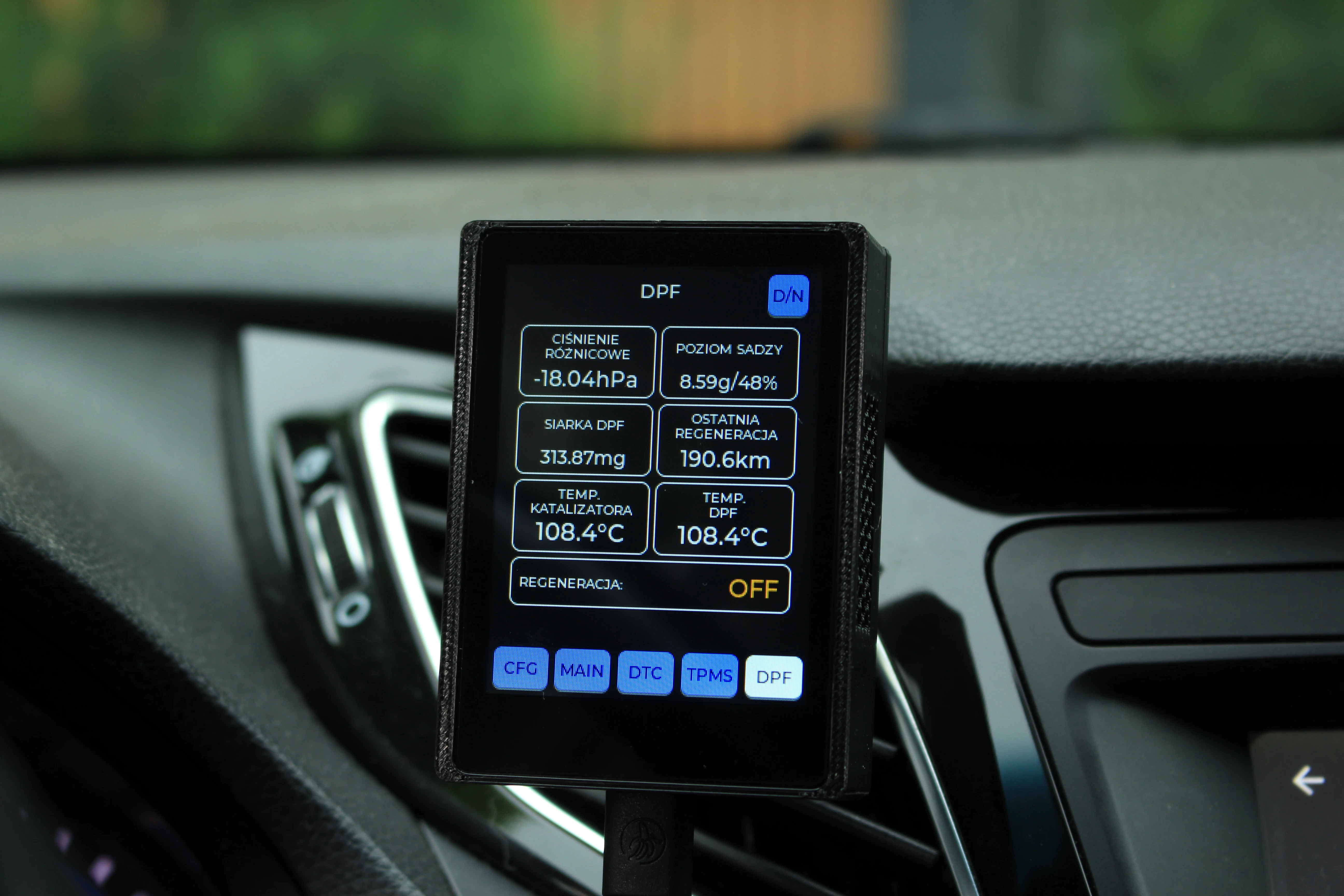

DPF/FAP regeneration monitoring
The DPF/FAP tab brings the most important filter data together in one place. The available parameters depend on the vehicle, ECU and selected profile.
Important: not all parameters are available in every vehicle. The displayed values depend on the data provided by the specific ECU. In PSA profiles, the tab name changes from DPF to FAP.
Regeneration start notification
When active regeneration is detected, the DPF/FAP button starts flashing alternately between the colour selected by the user and red.
If automatic LCD dimming is enabled, the start of regeneration wakes the display and automatically switches the monitor to the DPF/FAP tab.
For safety, the voice notification is played twice — with a 1-minute interval for both the start and completion of regeneration.
The monitor helps prevent the engine from being switched off accidentally during active filter regeneration.

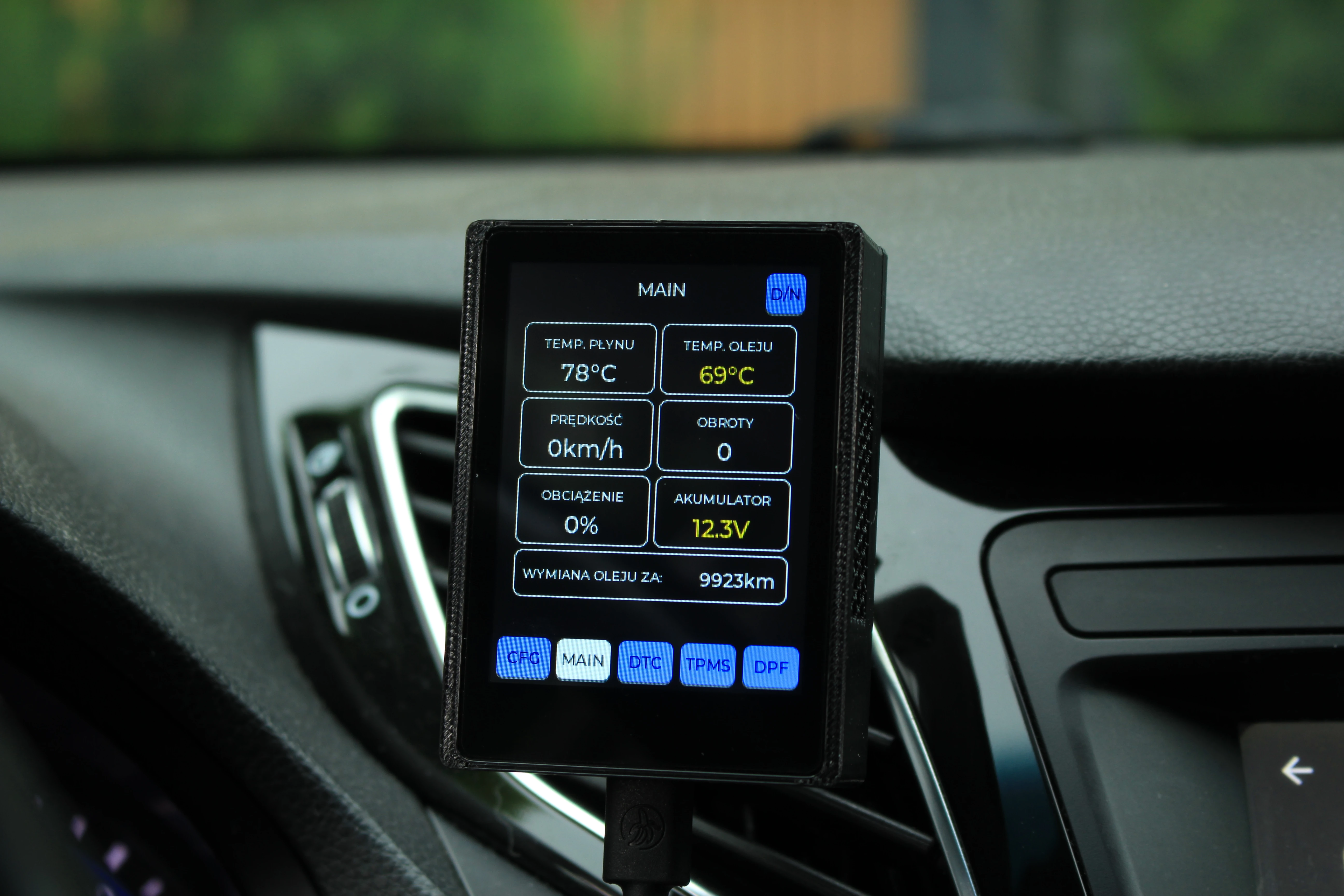

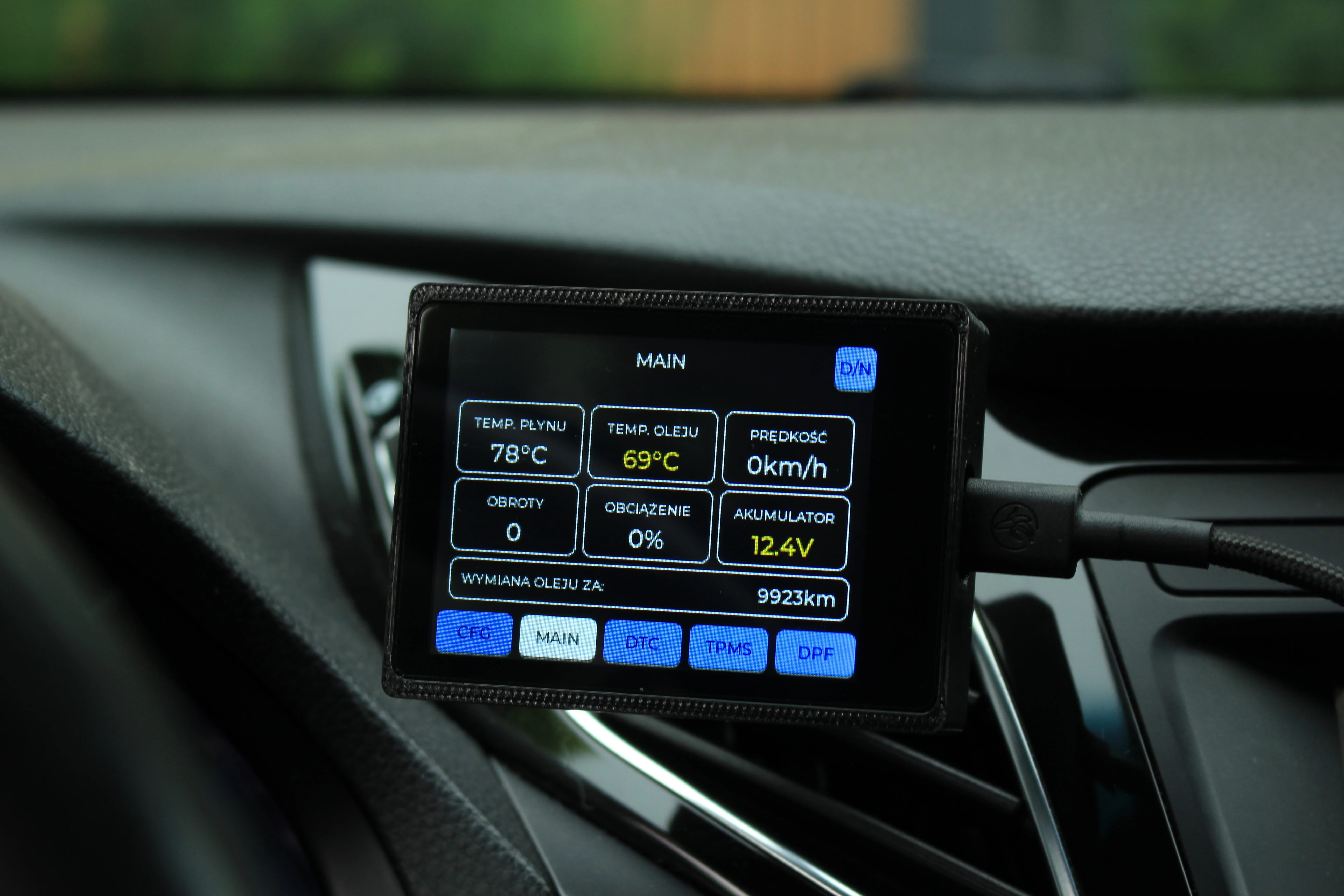

MAIN screen – basic engine parameters

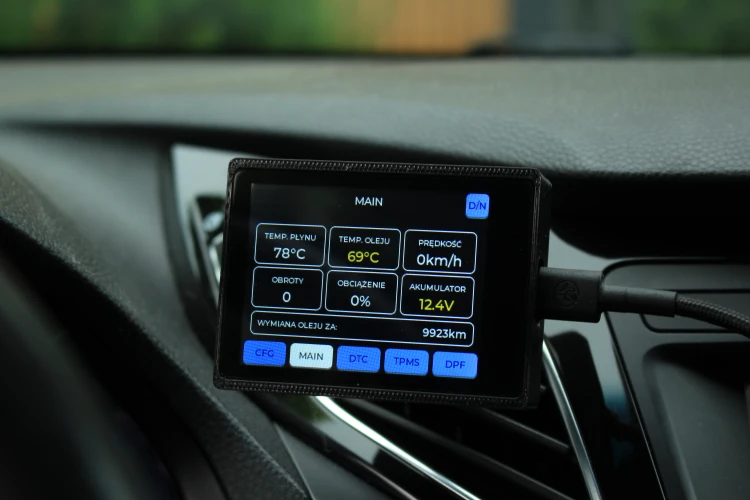

The MAIN screen provides a daily view of the vehicle's basic operating parameters. Depending on the profile, it can display temperatures, speed, engine RPM, engine load, system voltage and the oil service counter.
After the set interval is exceeded, the counter may display a negative value — indicating the number of kilometres driven beyond the scheduled service point.

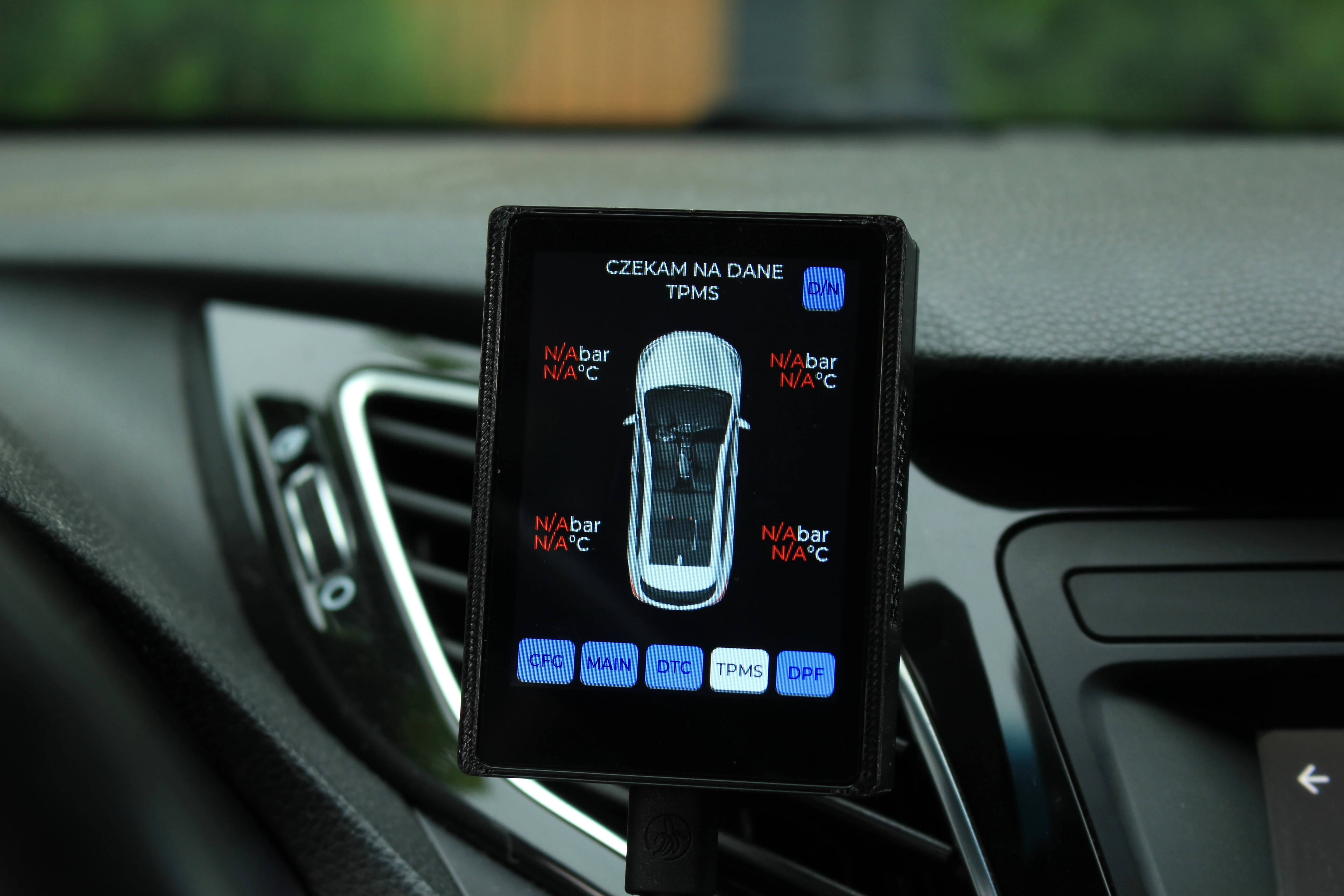

Direct TPMS reading
In supported Hyundai and Kia vehicles, DPF Monitor PRO can read data directly from the TPMS control unit.
In the Hyundai i40 2016–2019 profile, the device automatically checks the communication variant used in the i40. If it does not receive a valid response, it switches to the variant used, among others, in the Kia Optima.
The TPMS module is periodically woken up to reduce loss of readings while driving.
Support for other models depends on the system, control unit and communication method used. If a vehicle is not currently supported, its logs can be checked and support may be added in a later update.
Supported vehicle profiles

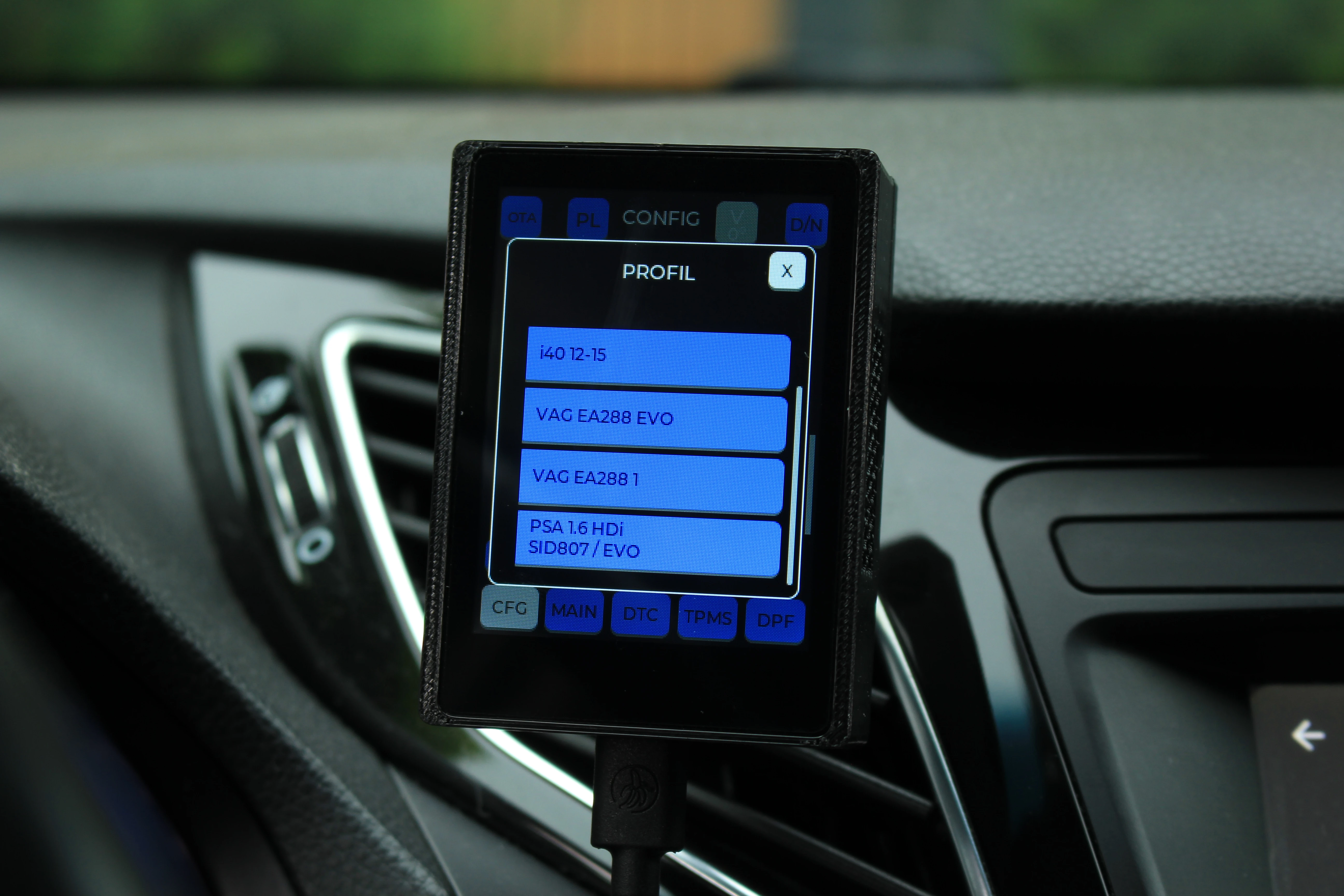

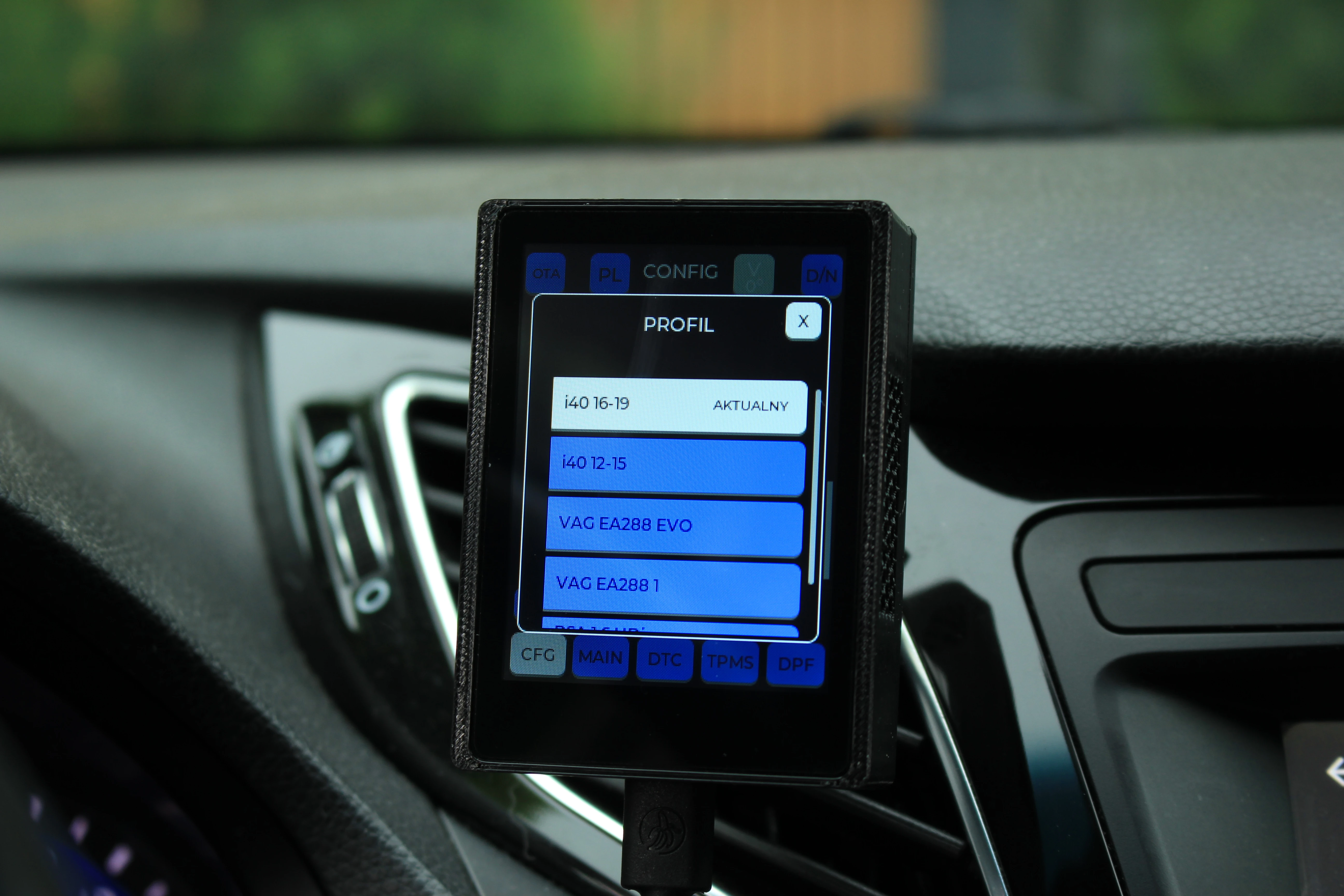

Select the profile that matches the ECU and vehicle generation. The model list is for guidance only — final compatibility depends on the ECU and the available diagnostic commands.
Hyundai i40 1.7 CRDi 2011–2015 DPF monitor
This profile is intended primarily for:
- Hyundai i40 1.7 CRDi 2012–2015 (pre-facelift),
- Kia Ceed 2009–2015 1.6 CRDi
- Kia Carens/Rondo RP 1.7 CRDi 2013–2014 with a compatible ECU,
- Kia Optima TF 1.7 CRDi 2014 with a compatible ECU.
The profile may display, among other things:
- DPF differential pressure,
- soot level,
- distance since the last regeneration,
- temperature before the DPF,
- intercooler temperature,
- vehicle mileage recorded during the last regeneration,
- direct TPMS data in supported versions.
Hyundai i40, Tucson and Kia DPF monitor
Profile for facelifted Hyundai i40 vehicles and selected Hyundai and Kia models equipped with compatible ECUs.
Basic list of supported models:
- Hyundai i40 1.7 CRDi 2015–2019 (facelift),
- Hyundai i30 2015–2022 CRDi
- Kia Carens/Rondo RP 1.7 CRDi 2015–2021,
- Kia Ceed CRDi 2016–2018 (including 1.4 CRDi),
- Kia Optima 1.7 CRDi 2016–2018,
- Hyundai Tucson 1.7 CRDi 2015–2018,
- Kia Sportage 1.7 CRDi 2016–2018.
In addition, the profile has been successfully used in selected versions of:
- Hyundai Tucson 2.0 CRDi 2016,
- Kia Sorento III 2.2 CRDi 2019,
Support depends on the ECU version and the set of diagnostic commands made available by the vehicle.
Hyundai/Kia 1.6 CRDi DPF monitor
Profile for Hyundai and Kia vehicles equipped with the newer SIM2K-510 (U3) ECU.
Basic list of supported models:
KIA:
- Kia Ceed III CD (approx. 2018–2024),
- Kia Ceed Sportwagon III CD (approx. 2018–2024),
- Kia ProCeed III CD (approx. 2019–2024),
- Kia XCeed CD (approx. 2019–2024),
- Kia Optima IV JF facelift (2018–2020),
- Kia Sportage IV QL (2018–2021),
- Kia Stonic YB (2018–2020).
Hyundai:
- Hyundai i30 III PD (approx. 2019–2023),
- Hyundai i40 VF (2018–2019),
- Hyundai KONA I OS (approx. 2018–2021),
- Hyundai Tucson III TL facelift (2018–2020, selected 2021 versions),
- Hyundai Tucson IV NX4 (approx. 2021–2025).
Support depends on the ECU version and the set of diagnostic commands made available by the vehicle.
VAG EA288 and EA288 EVO DPF monitor
DPF Monitor PRO supports selected VAG Group vehicles equipped with EA288 and EA288 EVO diesel engines. The profiles are designed for Volkswagen, Škoda, Audi and SEAT vehicles fitted with a compatible engine ECU and a supported set of diagnostic parameters.
The device can be used as a DPF regeneration monitor in selected versions of the following models, among others:
Skoda DPF monitor
- Skoda Superb III 3V 1.6 TDI and 2.0 TDI,
- Skoda Octavia III and IV 1.6 TDI and 2.0 TDI,
- Skoda Kodiaq I 2.0 TDI,
- Skoda Karoq 1.6 TDI and 2.0 TDI,
- Skoda Scala 1.6 TDI.
Volkswagen DPF monitor
- Volkswagen VW Golf VII and VIII 1.6 TDI and 2.0 TDI,
- Volkswagen VW Passat B8 1.6 TDI and 2.0 TDI,
- Volkswagen VW Tiguan II 2.0 TDI,
- Volkswagen VW Touran II 1.6 TDI and 2.0 TDI,
- Volkswagen VW Arteon 2.0 TDI,
- Volkswagen VW T-Roc 1.6 TDI and 2.0 TDI,
- Volkswagen Caddy with an EA288 engine.
Audi DPF monitor
- Audi A3 8V and 8Y 1.6 TDI and 2.0 TDI,
- Audi A4 B9 2.0 TDI,
- Audi A5 F5 2.0 TDI,
- Audi A6 with selected 2.0 TDI EA288 engines,
- Audi Q2 1.6 TDI and 2.0 TDI,
- Audi Q3 with selected 2.0 TDI engines.
SEAT and CUPRA DPF monitor
- SEAT Leon III and IV 1.6 TDI and 2.0 TDI,
- SEAT Ateca 1.6 TDI and 2.0 TDI,
- SEAT Tarraco 2.0 TDI,
- SEAT Alhambra with selected EA288 engines.
The model list is for guidance only. The same model and model year may use different engines, ECUs and sets of diagnostic parameters. Final compatibility depends primarily on the engine code.

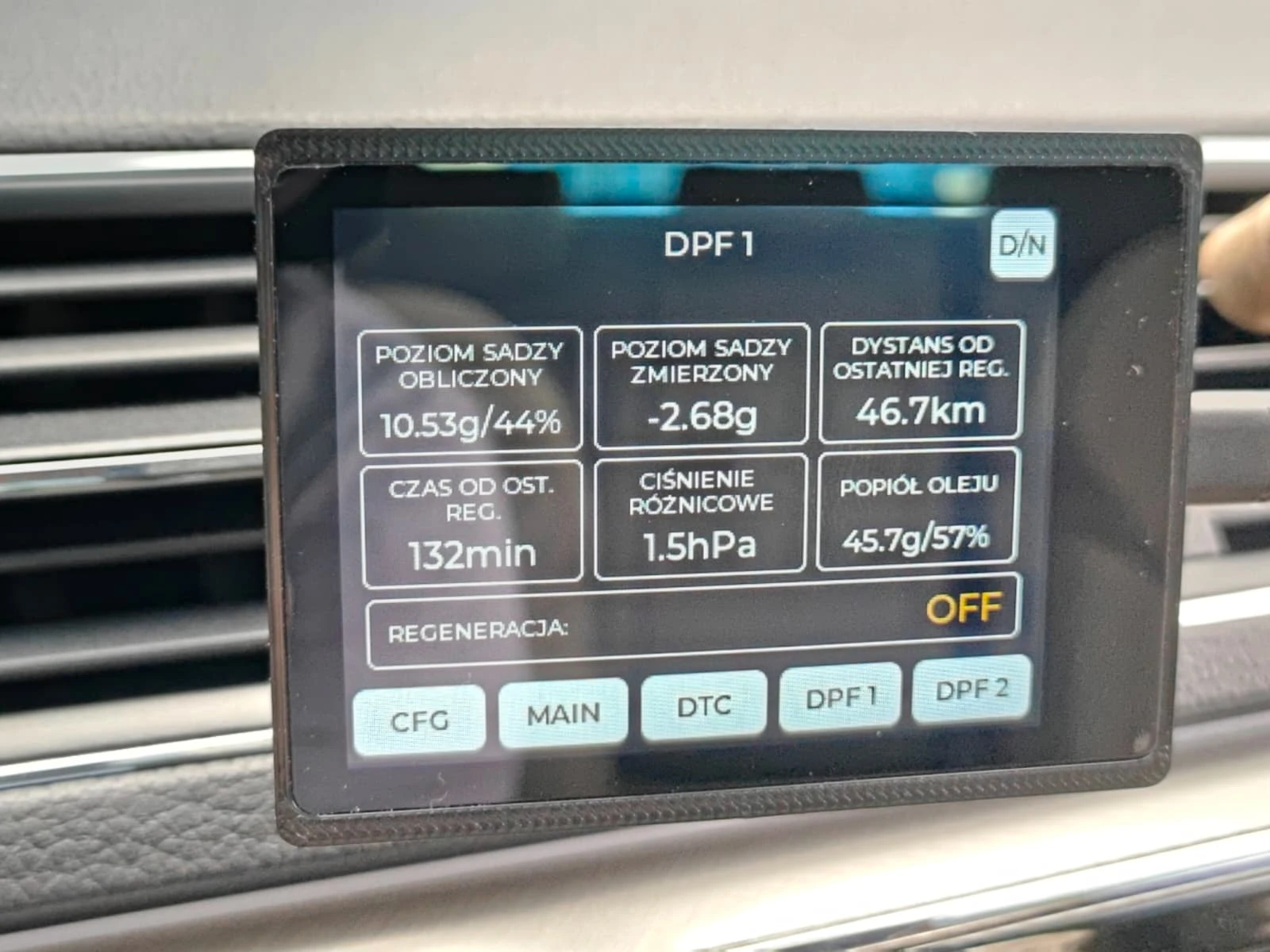

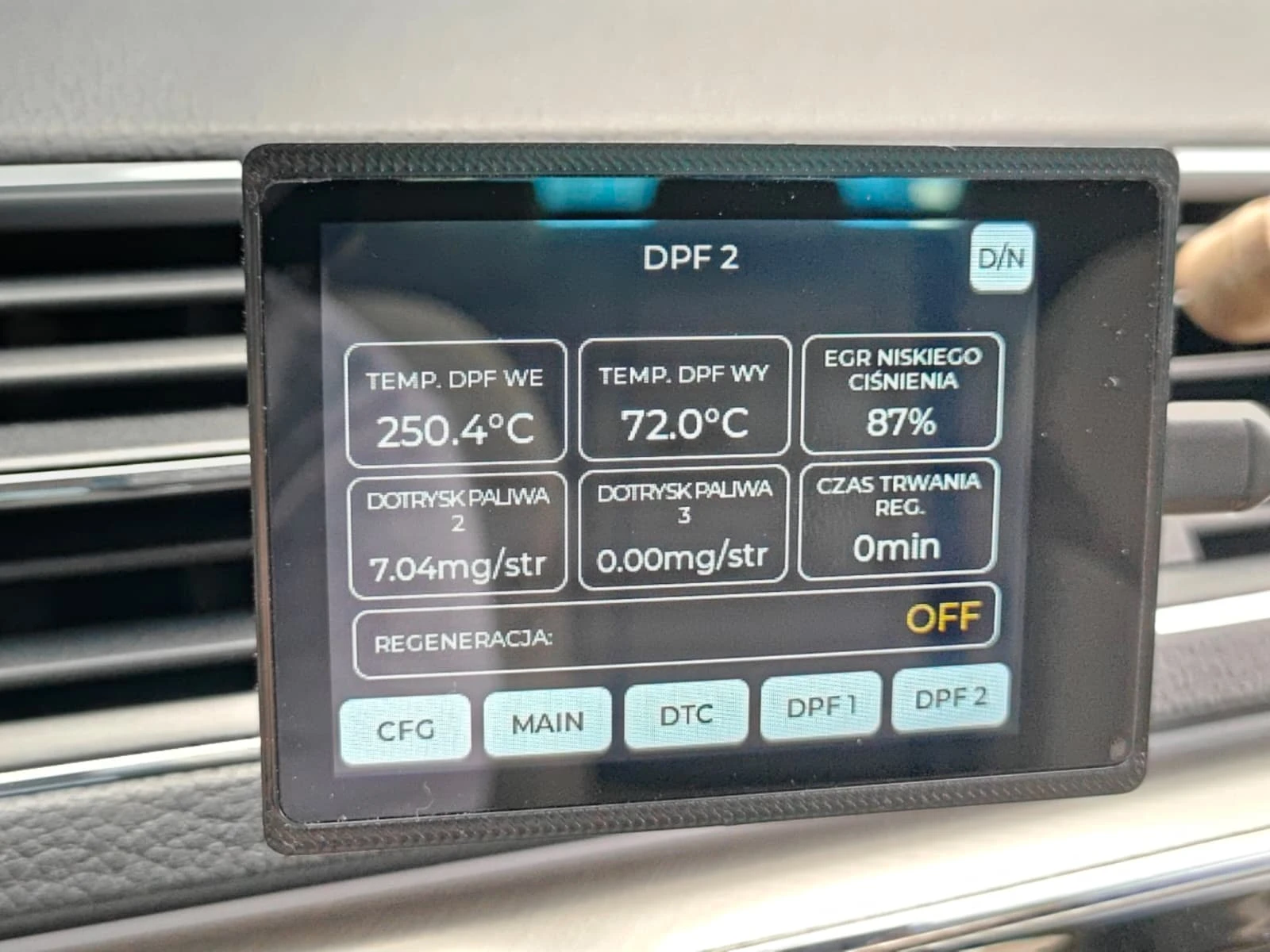

VAG EA288 EVO profile
The EA288 EVO profile is designed for newer diesel engine versions used in Volkswagen, Skoda, Audi and SEAT vehicles.
Depending on the vehicle, DPF Monitor PRO may display:
- calculated soot mass,
- measured soot mass,
- DPF differential pressure,
- exhaust gas temperature before and after the filter,
- distance since the last regeneration,
- time since the last regeneration,
- regeneration duration,
- oil ash quantity,
- EGR closing percentage,
- post-injection quantities,
- current DPF regeneration status.
Supported engine codes:
DTRB, DSUD, DTRD, DTTA, DTTC, DSTB, DTRA, DSRA, DTSA, DSRB, DTSB, DTUA, DFBA.
VAG EA288 EVO 29-bit profile (29-bit)
The EA288 EVO profile is designed for newer diesel engine versions used in Volkswagen, Skoda, Audi and SEAT vehicles.
Depending on the vehicle, DPF Monitor PRO may display:
- calculated soot mass,
- measured soot mass,
- DPF differential pressure,
- exhaust gas temperature before and after the filter,
- distance since the last regeneration,
- time since the last regeneration,
- regeneration duration,
- oil ash quantity,
- EGR closing percentage,
- post-injection quantities,
- current DPF regeneration status.
Supported engine codes:
DXPA, DXPB, DTUA, DSUD, DXNB, DTTC
Support depends on the ECU version and the set of diagnostic commands made available by the vehicle.
VAG EA288 1 profile
The alternative VAG EA288 profile uses a different set of diagnostic parameters and is intended for older engine versions from this family.
The profile may display, among other things:
- soot mass in the DPF,
- distance since the last regeneration,
- differential pressure,
- exhaust gas temperature before and after the filter,
- oil ash quantity,
- engine oil temperature,
- time since the last regeneration,
- regeneration duration,
- measured soot mass,
- post-injection quantities.
Supported engine codes:
CRBC, CLHA, CFFB, CFGC, CJCA, CJCB, CJCD, CSHA, CLAB, CGLC, CGLB, CFGB, CFHD, CFHC, CFHA, CUNA, CRMB, CUPA, CRLB, DCXA, DFSB, DFGA, DFLA, DCYA, DBGC, CUUB, CUAA, DFSF, CNHA, DLUB, CFCA, CFGB, CFJB, CRUA, DFFA, DFCA, CRKB, DBGC.
Before purchasing, check the vehicle's engine code. If it is not on the list, send us the model, model year, engine capacity, power output and engine code — we will check whether support is possible or whether a suitable profile can be prepared.
VAG EA288 2 profile
The alternative VAG EA288 2 profile uses a different set of diagnostic parameters and is intended for older engine versions from this family.
The profile may display, among other things:
- soot mass in the DPF,
- distance since the last regeneration,
- differential pressure,
- exhaust gas temperature before and after the filter,
- oil ash quantity,
- engine oil temperature,
- time since the last regeneration,
- regeneration duration,
- measured soot mass,
- post-injection quantities.
Supported engine codes:
DFHA, DETA, DEUA, DFGA, DGDA, DGDB, DFFA, DJGA, DCZA.
Before purchasing, check the vehicle's engine code. If it is not on the list, send us the model, model year, engine capacity, power output and engine code — we will check whether support is possible or whether a suitable profile can be prepared.
Peugeot and Citroën FAP monitor
PSA/FAP profiles are intended for selected vehicles with HDi/BlueHDi engines and a compatible ECU. The same engine code may be paired with a different ECU depending on model year, power output and emissions standard — it is worth confirming the ECU before purchase.

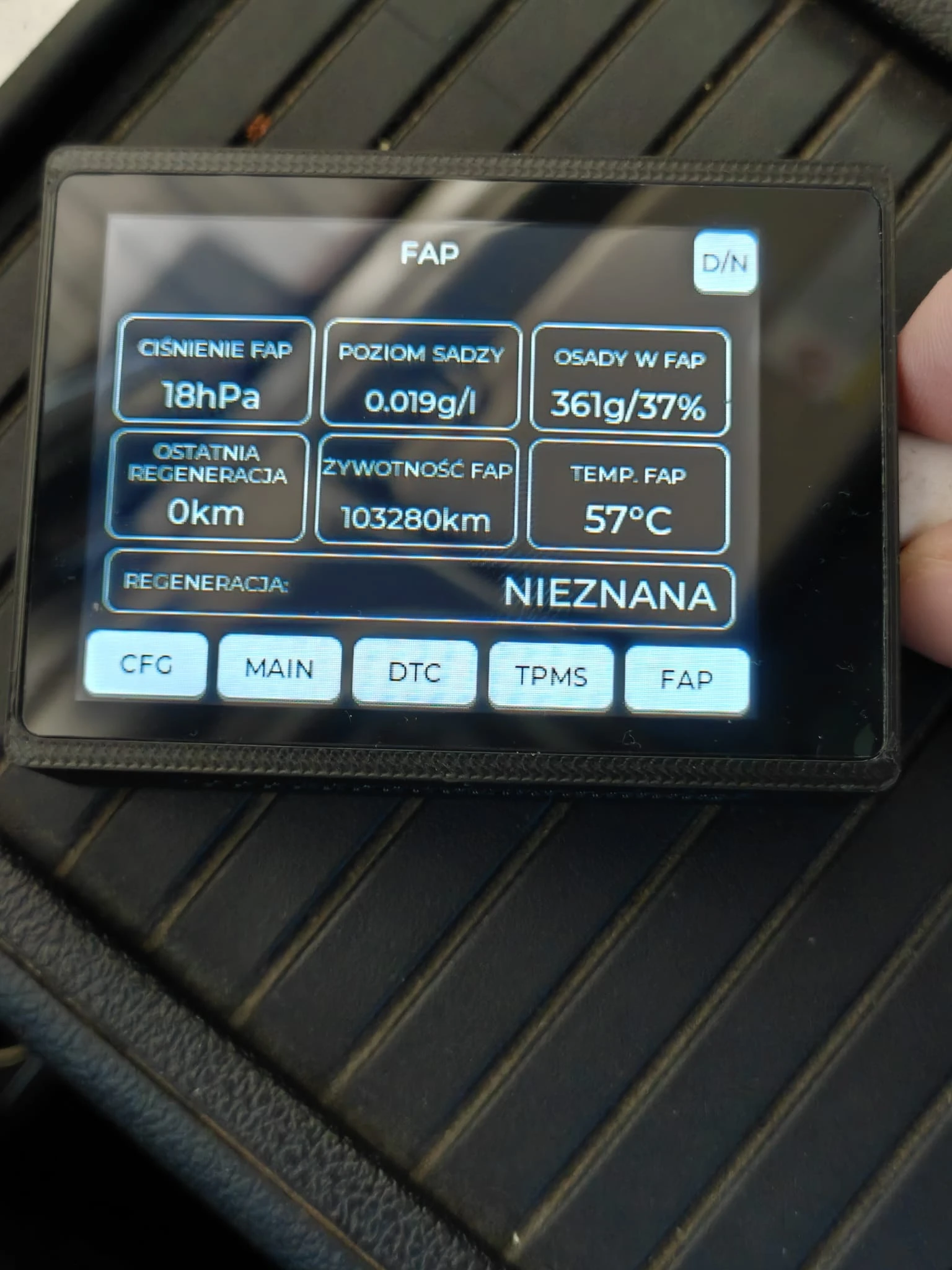

PSA profiles include the INJEC tab: correction values for four injectors, plus target and measured fuel pressure. The available data depends on the ECU.
1.6 HDi / e-HDi — SID807 / SID807 EVO
The profile displays FAP parameters, regeneration status and the INJEC tab.
Supported engine families and codes:
DV6C, DV6CTED, DV6DTED; 9HR, 9HD, 9HP, 9HJ — selected versions with the SID807/SID807 EVO ECU.
List of compatible vehicles
Peugeot: 207, 208 I, 2008 I, 308 I and early 308 II, 3008 I, 5008 I, 508 I, Partner II — selected 1.6 HDi/e-HDi versions from approximately 2010–2015.
Citroën/DS: Berlingo II, C3 II, C3 Picasso, C4 II, C4 Picasso/Grand, C5 X7, DS3, DS4, DS5 — selected 1.6 HDi/e-HDi versions.
2.0 HDi — DCM3.5 BR2
Profile for selected 2.0 HDi vehicles; FAP parameters, regeneration status and the INJEC tab.
Supported engine families and codes:
DW10C, DW10CTED4, DW10CD; RHH, RHE, RHF — selected versions with the DCM3.5 BR2 ECU.
List of compatible vehicles
Peugeot: 308 I, 3008 I, 5008 I, 508 I, RCZ, Expert II, 807 — selected 2.0 HDi 150/163 hp versions.
Citroën/DS: C4 II, C4 Picasso/Grand, C5 X7, C8, Jumpy II, DS4, DS5 and DS5 Hybrid4 — selected 2.0 HDi versions.
2.0 BlueHDi — DCM6.2 / DCM7.1
The profile includes FAP parameters, regeneration status, INJEC and AdBlue status on the MAIN screen.
Supported engine families and codes:
DW10F, DW10FC, DW10FD, DW10FE; AHW, AHX, AHR — selected versions with DCM6.2A/DCM7.1.
>>2400 km: white; 501–2400 km: orange with the MAIN button flashing every 5 s; 101–500 km: red and flashing every 5 s; 0–100 km: red and flashing every 1 s.
List of compatible vehicles
Peugeot: 308 II, 3008 I/II, 5008 I/II, 508 I/II, Expert III, Traveller, Boxer — selected 2.0 BlueHDi 110–180 hp versions.
Citroën/DS: C4 II, C4 Picasso/SpaceTourer, C5 X7, C5 Aircross, Jumpy III, SpaceTourer, Jumper, DS4, DS5, DS7 — selected 2.0 BlueHDi versions.
Related models: Toyota ProAce/ProAce Verso, Opel Vivaro C/Zafira Life/Grandland X, Fiat Scudo/Ulysse — selected 2.0 diesel versions compatible with PSA.
1.5 BlueHDi — MD1CS003
The profile includes FAP parameters, regeneration status, the INJEC tab and AdBlue status on the MAIN screen.
Supported engine families and codes:
DV5R, DV5RC, DV5RD, DV5RE; YHZ, YHY, YHW — selected versions with the Bosch MD1CS003 ECU.
>>2400 km: white; 501–2400 km: orange with the MAIN button flashing every 5 s; 101–500 km: red and flashing every 5 s; 0–100 km: red and flashing every 1 s.
List of compatible vehicles
Peugeot: 208 II, 2008 II, facelifted 308 II and 308 III, 3008 II, 5008 II, 508 II, Partner III/Rifter, Expert III/Traveller 1.5 BlueHDi.
Citroën/DS: C3 III, C3 Aircross, C4 Cactus, C4 III, C4 SpaceTourer/Grand, C5 Aircross, Berlingo III, Jumpy III/SpaceTourer 1.5, DS3 Crossback, DS4 II, DS7.
Related models: Toyota ProAce City/City Verso and selected ProAce 1.5 versions, Opel Corsa F, Mokka B, Astra L, Crossland, Grandland, Combo E, Vivaro C/Zafira Life, Fiat Doblo/Scudo/Ulysse — selected 1.5 diesel versions compatible with PSA.
1.6 BlueHDi — EDC17C60
The profile includes FAP parameters, regeneration status, the INJEC tab and AdBlue status on the MAIN screen.
Supported engine families and codes:
DV6F, DV6FC, DV6FD, DV6FE; BHZ, BHY, BHW — selected versions with the Bosch EDC17C60 ECU.
>>2400 km: white; 501–2400 km: orange with the MAIN button flashing every 5 s; 101–500 km: red and flashing every 5 s; 0–100 km: red and flashing every 1 s.
List of compatible vehicles
Peugeot: 208 I, 2008 I, 308 II, late 3008 I and early 3008 II, late 5008 I and early 5008 II, facelifted 508 I, Partner II, early Expert III — selected 1.6 BlueHDi 75/100/120 hp versions.
Citroën/DS: C3 II/III, C3 Aircross, C4 II, C4 Cactus, C4 Picasso II/Grand, C5 X7, Berlingo II and early III, early Jumpy III, DS3, DS4, DS5 — selected 1.6 BlueHDi versions.
Related models: Toyota ProAce II 1.6 D-4D 95/115 hp and selected Opel/Vauxhall versions with the PSA 1.6 diesel engine.
Note: this list is for guidance only. Compatibility is determined by the ECU and the available diagnostic commands, not solely by engine capacity or the commercial engine name.

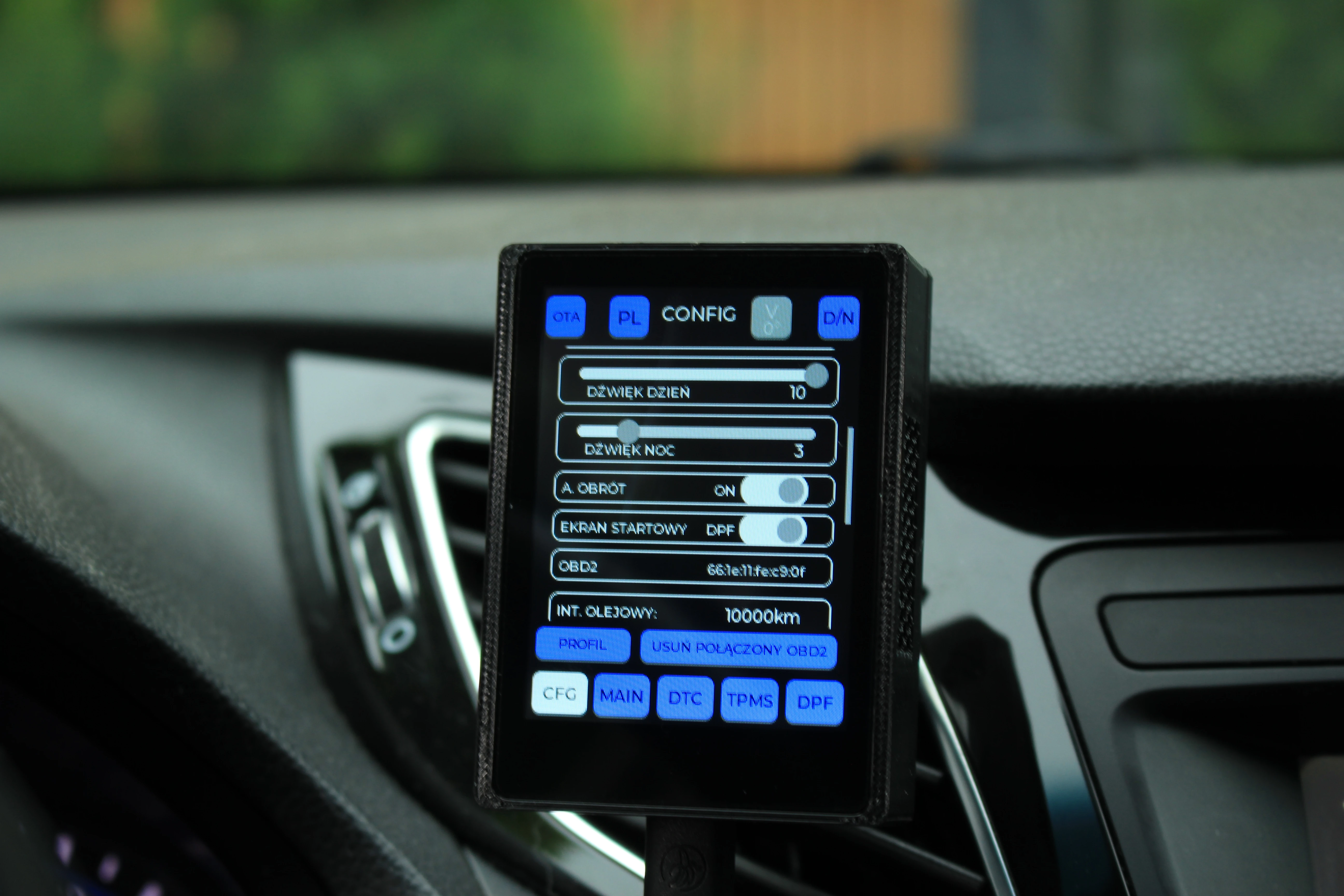

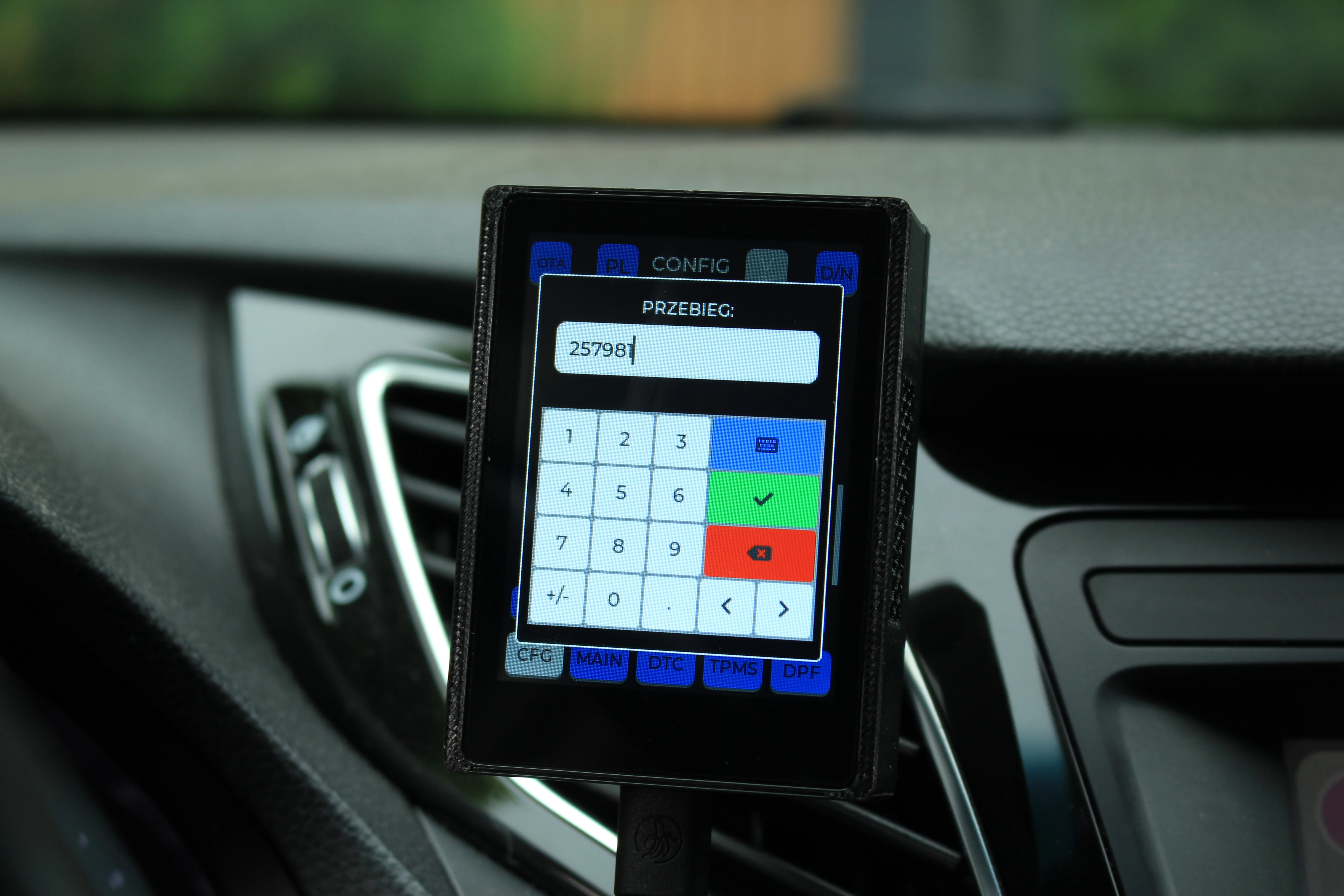

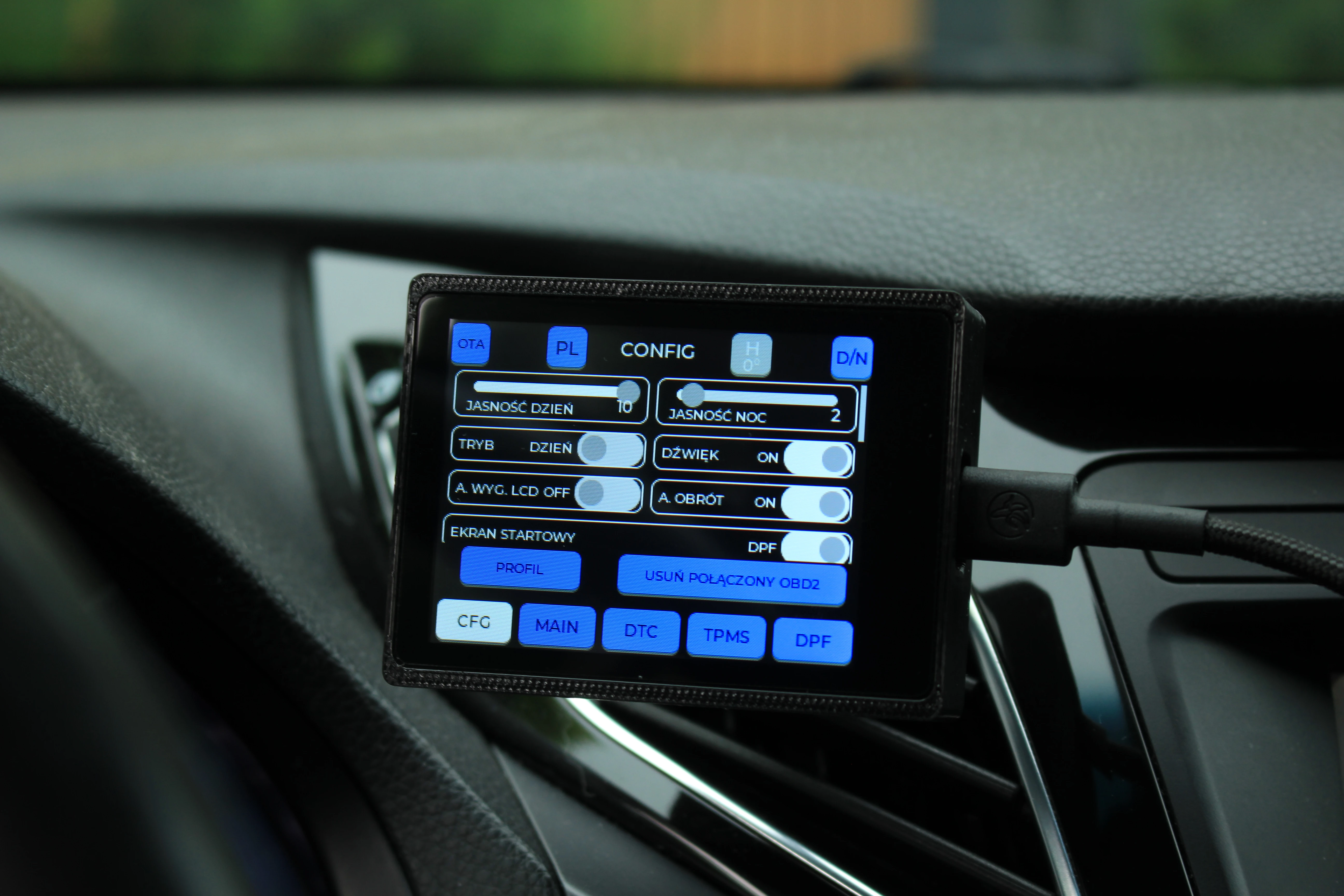

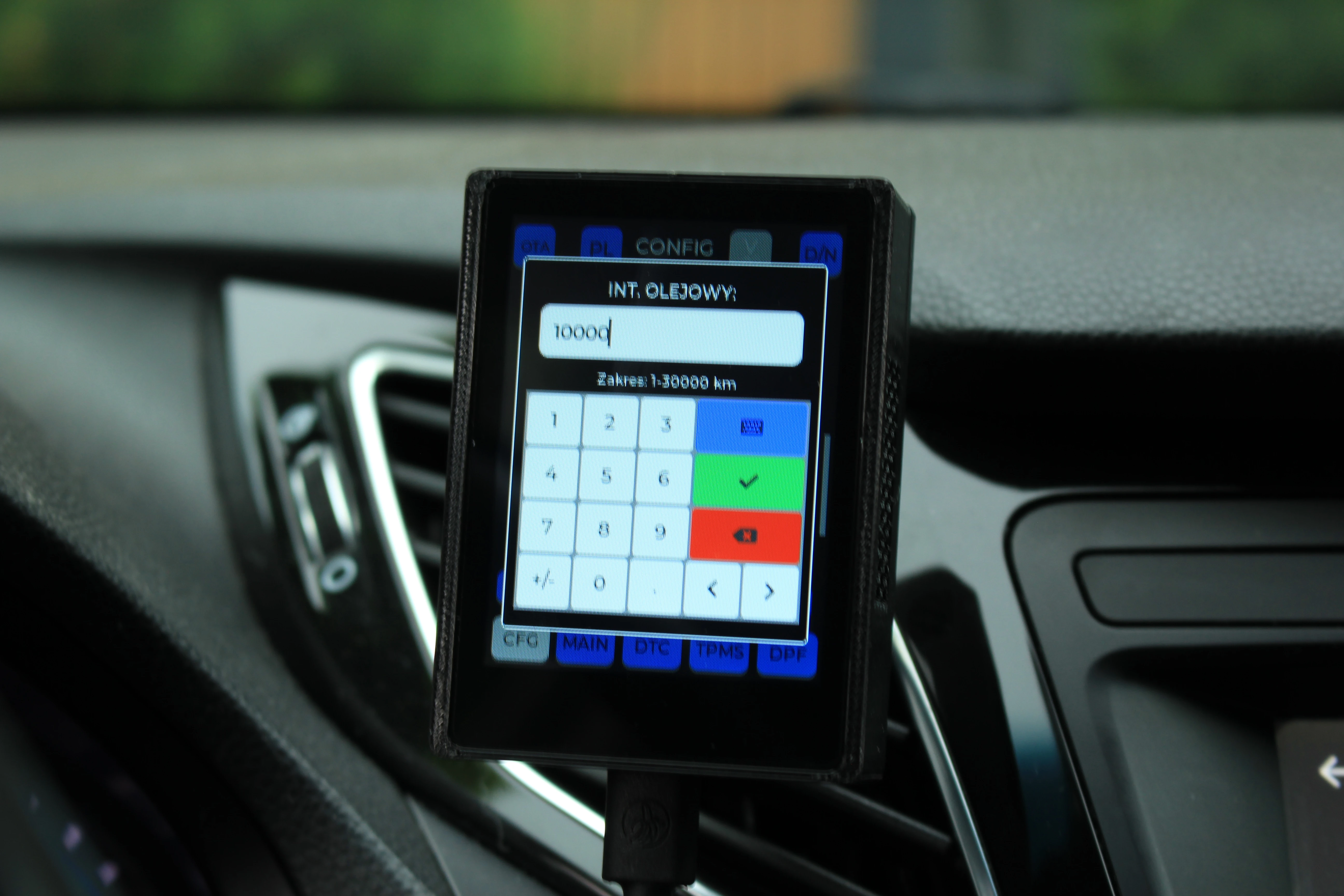

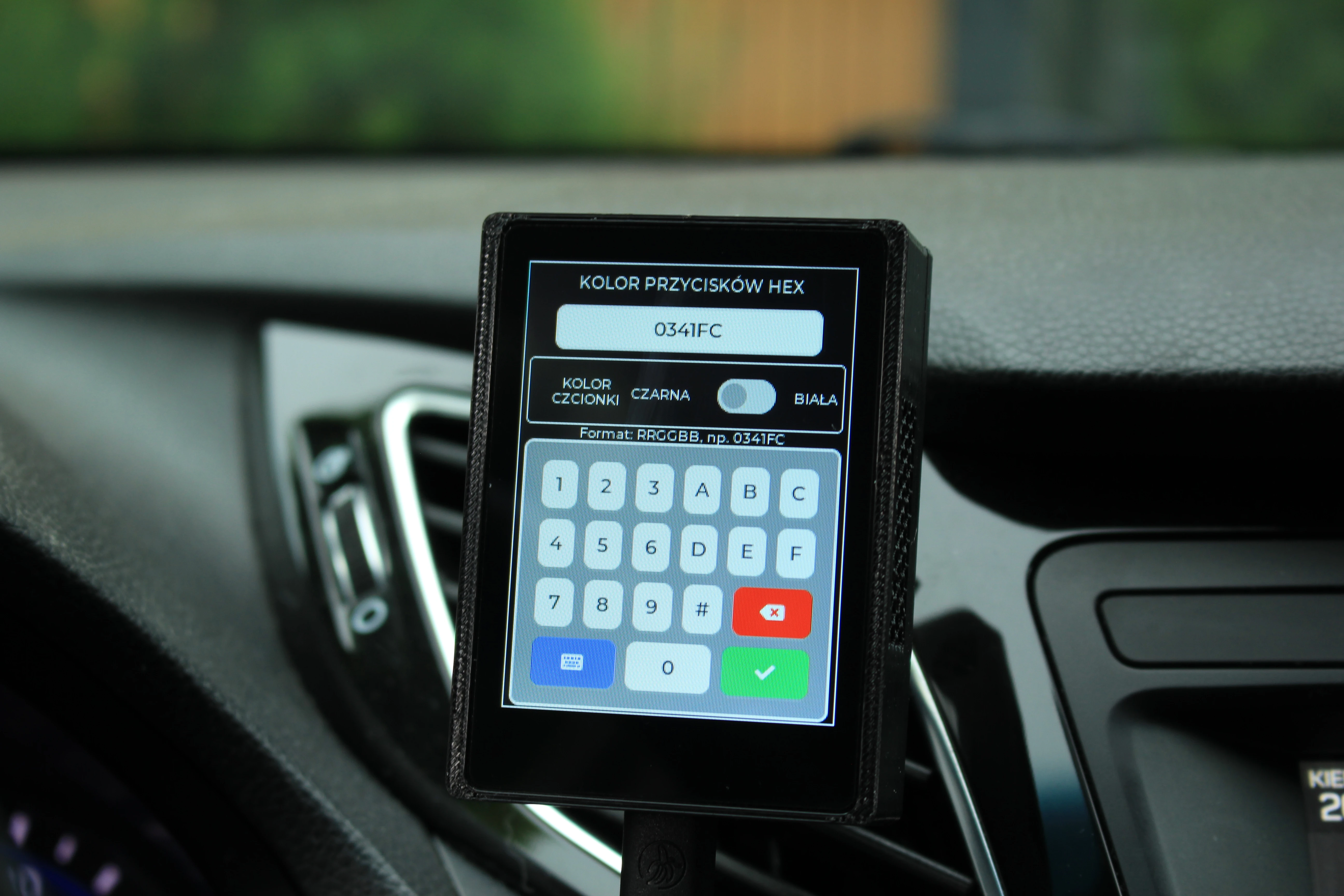

Appearance and operation customisation

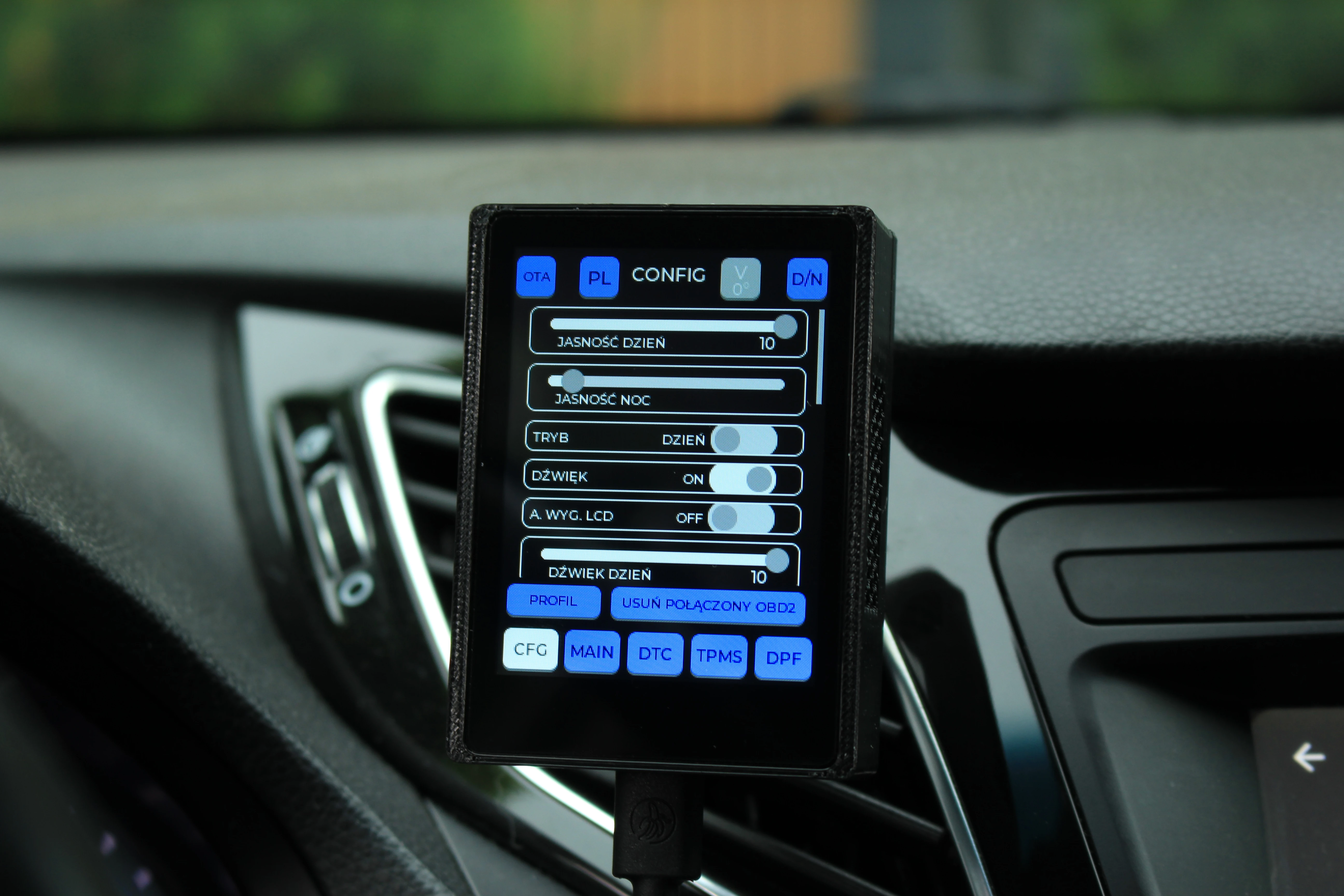

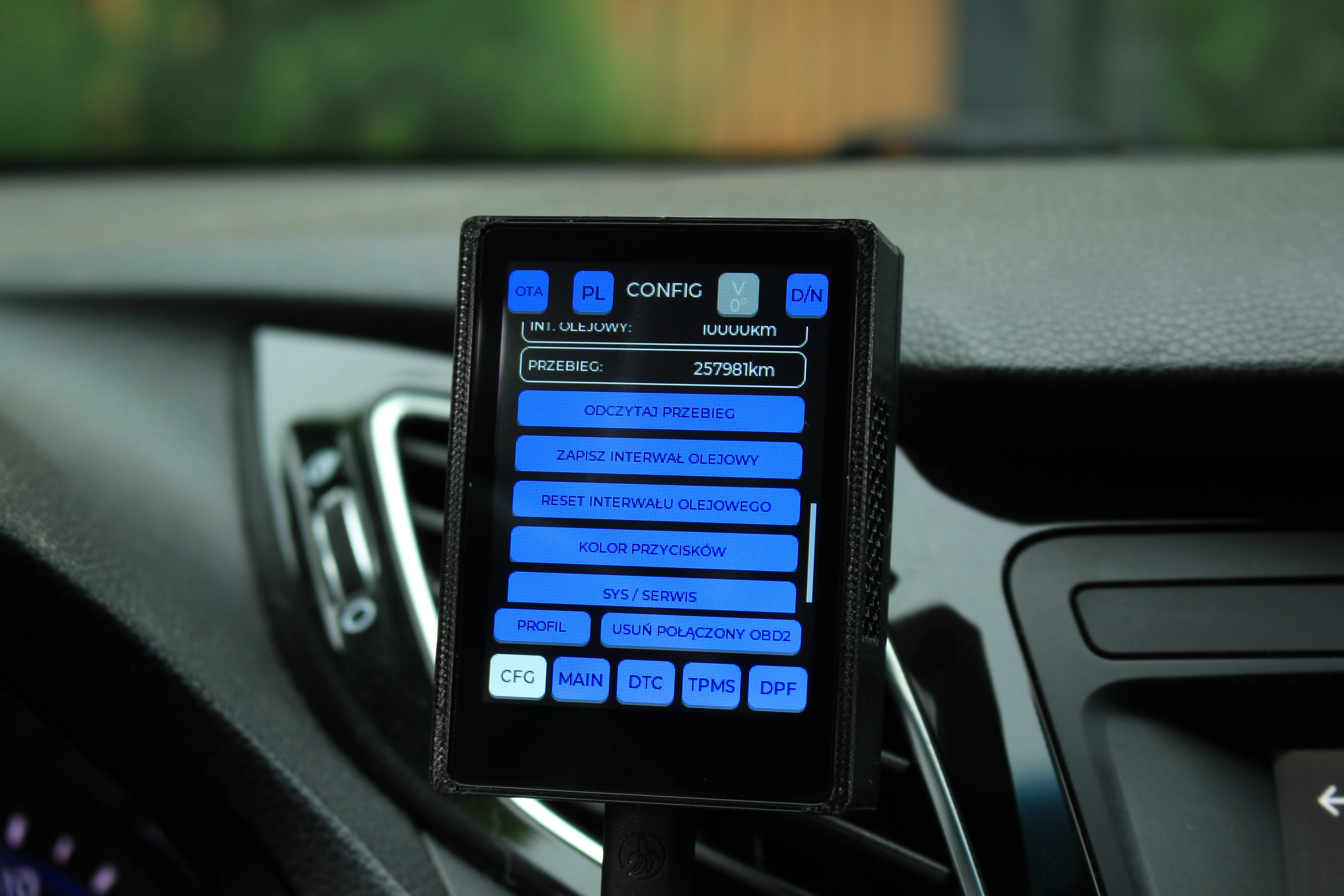

Adjust the monitor to your vehicle and personal preferences. Settings are saved in the device memory, so after restarting, the monitor returns to the selected appearance and operating mode.
Free updates via Wi‑Fi OTA
DPF Monitor PRO software can be updated wirelessly without opening the enclosure or connecting the device to a computer with a service cable.

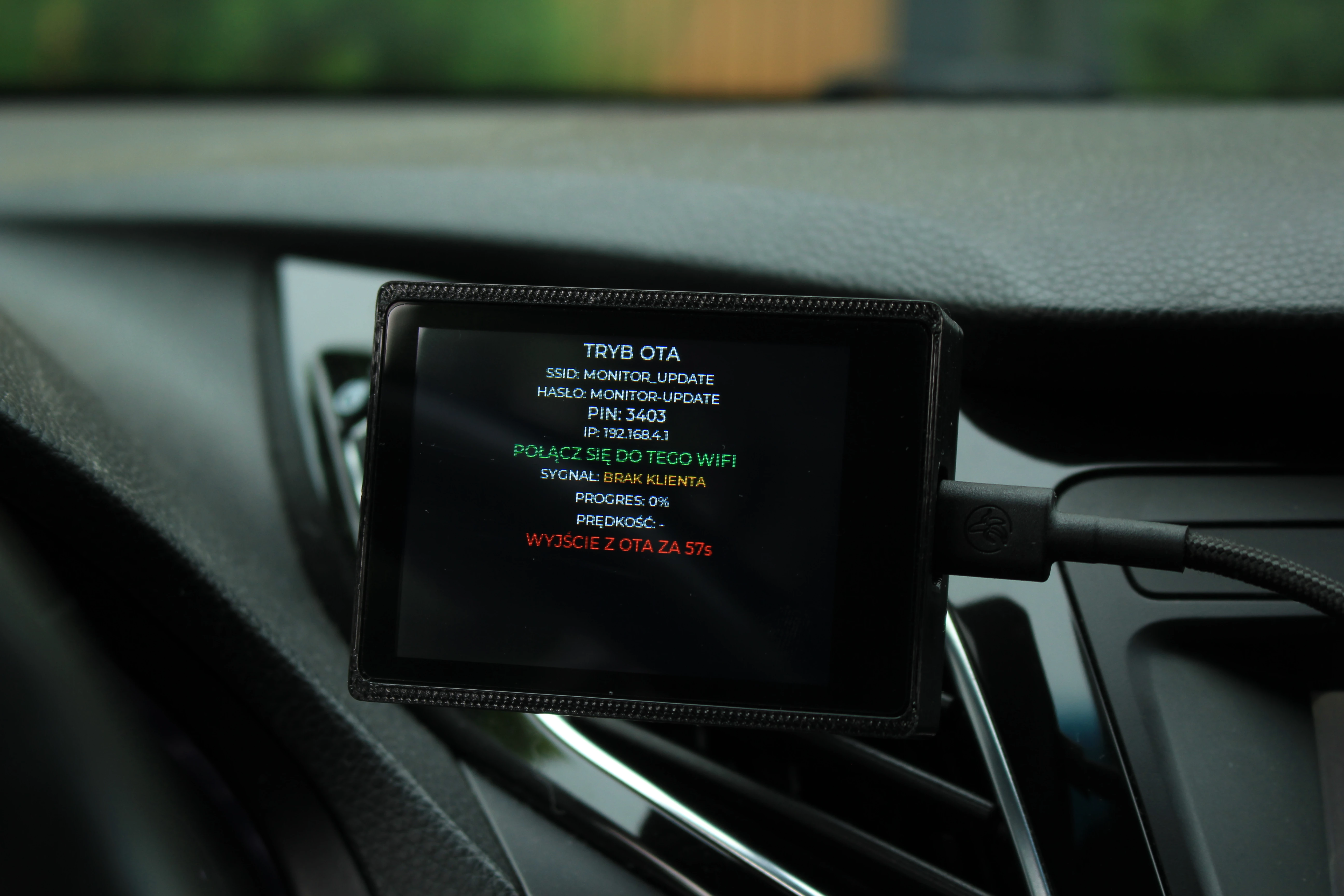

After update mode is started, the monitor creates its own Wi‑Fi network and displays the PIN required to begin installation.
Software updates are free. New versions may include:
- support for additional models and ECUs,
- additional parameters,
- communication improvements,
- new features,
- interface changes,
- stability improvements.
Update files and information about changes will be published on the product page.

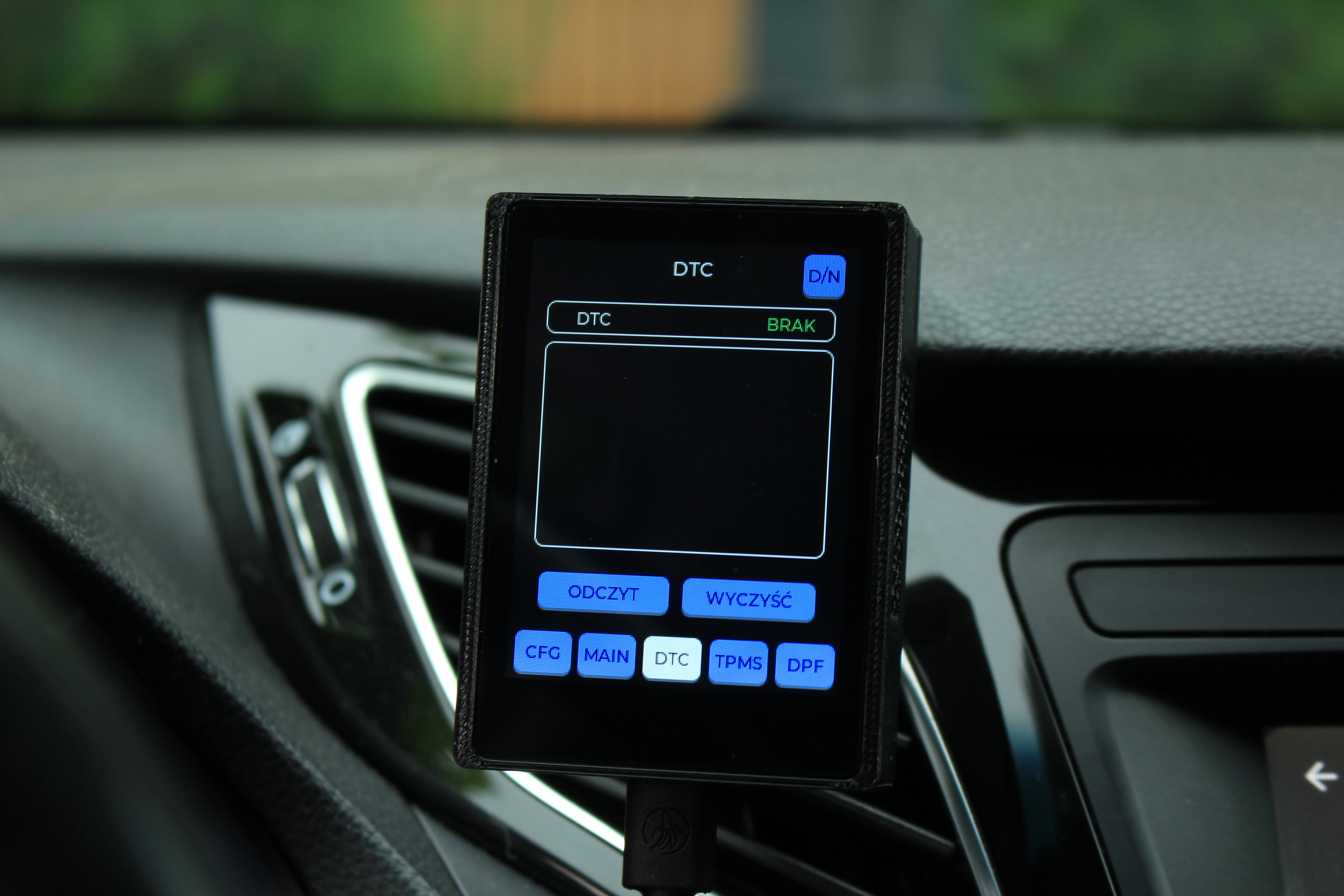

Reading and clearing DTCs
The current version allows standard OBD2 diagnostic trouble codes to be read and cleared, primarily those related to the engine ECU/ECM and the emissions system.
This function is not a complete scanner for all vehicle modules. It does not currently include full profile-based scanning of the following control units:
- BCM or BSI,
- ABS and ESP,
- TPMS,
- airbags,
- transmission,
- comfort modules.
Support for DTCs from additional modules may be added in future updates.
Build quality and technical specifications
The key specifications are presented in a shorter, clearer format instead of a long list.
Important compatibility information
The available parameters depend on:
- vehicle model and model year,
- engine code,
- ECU version,
- vehicle control unit software,
- ABS or TPMS system version,
- the OBD2 BLE adapter used.
The same vehicle model may be fitted with different control units and different sets of diagnostic parameters. For this reason, compatibility should be checked using the complete vehicle details and, for VAG vehicles, primarily the engine code.
Frequently asked questions
Does DPF Monitor PRO show active DPF/FAP regeneration?
Yes. In supported profiles, it displays the regeneration status, can wake the screen and play a voice notification when regeneration starts, finishes or is interrupted.
Does the monitor require a phone?

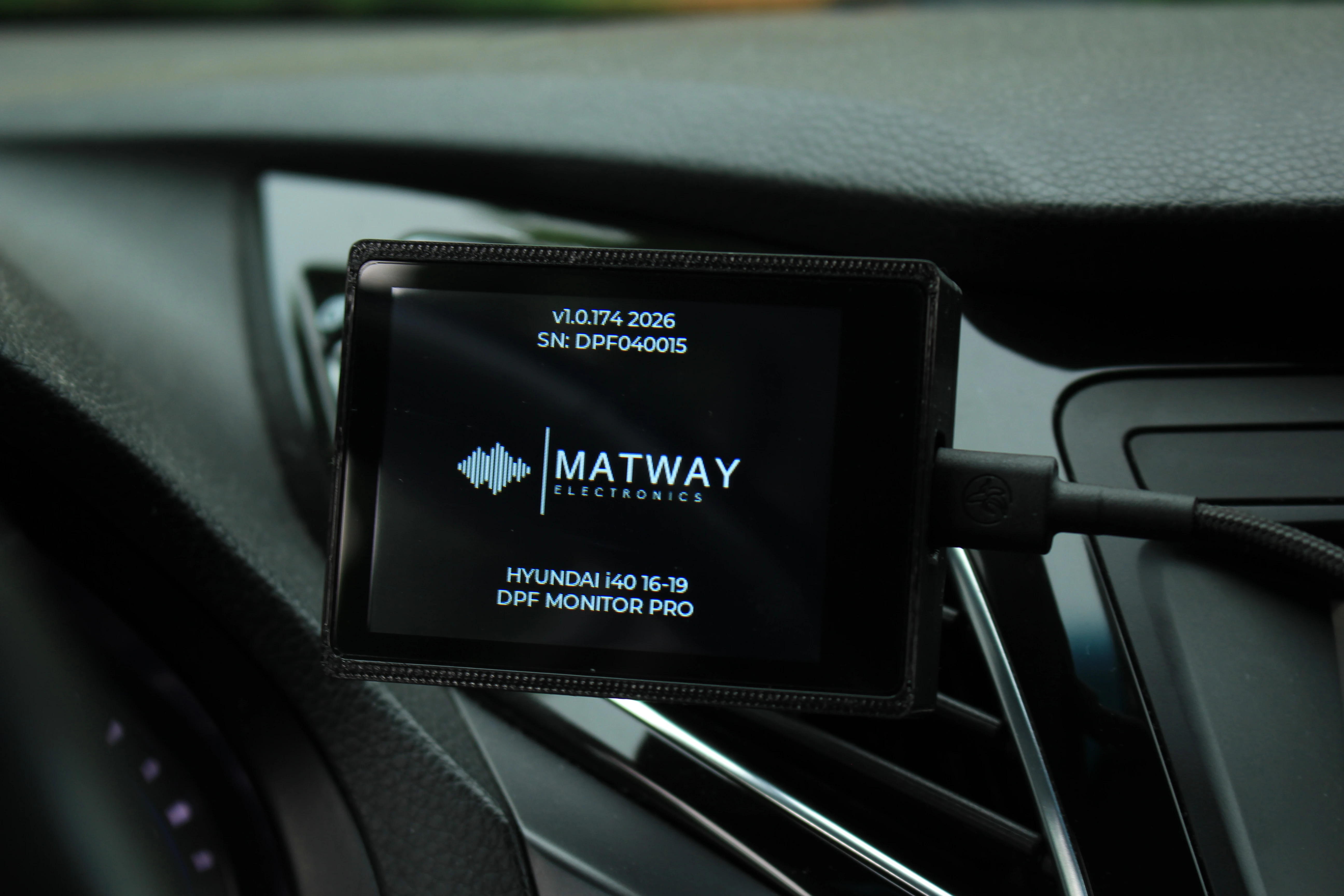

No. Once a compatible OBD2 BLE adapter has been saved, the monitor connects automatically when the vehicle is started.
Will a standard Bluetooth ELM327 adapter work?
The device requires a compatible Bluetooth 4.0 BLE adapter. Older Bluetooth Classic adapters may not be supported.
Do all parameters work in every vehicle?
No. The available data depends on the model, model year, engine code, ECU and the diagnostic commands made available by the vehicle.
Monitor DPF/FAP regeneration on every journey
DPF Monitor PRO lets you monitor the diesel particulate filter in real time without launching a phone and diagnostic app each time.
Automatic connection to the vehicle, a clear touchscreen, voice notifications and a view of DPF/FAP parameters make it easier to identify an active regeneration and complete the process consciously.
Send us the model, model year, engine capacity, power output and engine code — compatibility is best verified using the ECU and engine code rather than the vehicle model alone.
Software version history
v1.1.1
- added a double voice notification for the start and completion of regeneration
v1.1.2
- added support for iCar Pro 2S
v1.1.3
- enlarged frames on the MAIN, DPF, DPF1 and DPF2 screens
- increased parameter label font size by one step
- added the option to select a single or double voice notification in CFG
- added Slovak: menu and voice notifications
v1.1.4
- added support for PSA Peugeot/Citroën: DCM6.2 and DCM7.1
- added correction of the total distance-since-last-regeneration counter in the i40 2011–2015 profile
v1.1.5
- added support for Volvo XC60, XC90, S90, V90 and V90 Cross Country — B5 Diesel Mild Hybrid AWD 235 hp, 2020–2024
v1.1.6
- added support for universal OBD2 reading of basic parameters: speed, engine RPM, engine load, coolant temperature, oil temperature and battery voltage
v1.1.7
- added PSA support:
* 2.0 DCM3.5,
* 1.5 BlueHDi — MD1CS003
v1.1.8
- added support for VAG EA288 EVO with 29-bit communication (2022–2024)
Pliki do pobrania
DPF Monitor PRO - instrukcja PL v1.2.pdf
832.68 kB
DPF Monitor PRO - instrukcja v1.2 PL
DPF Monitor PRO - warunki gwarancji PL.pdf
583.81 kB
Warunki gwarancji - DPF Monitor PRO
Zaloguj przez Facebooka
Zaloguj przez Google
