EN - DPF Monitor PRO –– BMW / FORD / OPEL / HONDA / VOLVO

DPF Monitor PRO is a standalone touchscreen monitor for DPF/FAP regeneration and engine parameters. Via an OBD2 BLE adapter, the device displays, among other things, soot level, filter temperatures, differential pressure, distance since the last regeneration, and the current regeneration status.

The monitor automatically connects to the vehicle after startup and does not require a phone or an app. Voice notifications inform the driver when DPF/FAP regeneration starts, finishes, or is interrupted. Profiles are available for selected Hyundai, Kia, Volkswagen, Skoda, Audi, SEAT, Peugeot, and Citroën vehicles.

Przejdź do pełnego opisu
Cena 549,00 zł
w tym 23% VAT

Ceny podane bez kosztów dostawy.

Wybierz wariant produktu:

Poszczególne warianty mogą różnić się ceną

Wybierz DPF Monitor PRO + OBD2 (if you do not have your own BLE adapter) (+60,00 zł) + air vent mount (+35,00 zł) + OBD2 + air vent mount (+95,00 zł) 5% discount on the full package (monitor + OBD2 + mount) (+65,00 zł)
Wybierz HYUNDAI KIA VAG PSA TOYOTA HONDA BMW VOLVO FORD OPEL
Wybierz 9H glossy 8H matte hybrid (+10,00 zł)
szt.
Dostępność:
na wyczerpaniu
Zapytaj o produkt
Czas wysyłki (dni robocze): 10 dni

Opis

☰ Sections

DPF/FAP OBD2 MONITOR

DPF Monitor PRO

Standalone DPF/FAP, engine parameter and TPMS monitor - no phone required.

DPF regenerationVoice notificationsOTA Wi‑FiPL/EN/UA/SK/CZ/DE/GR/HR/RU
01Detects regeneration start
02Displays DPF parameters
03Provides voice notifications
04Works independently

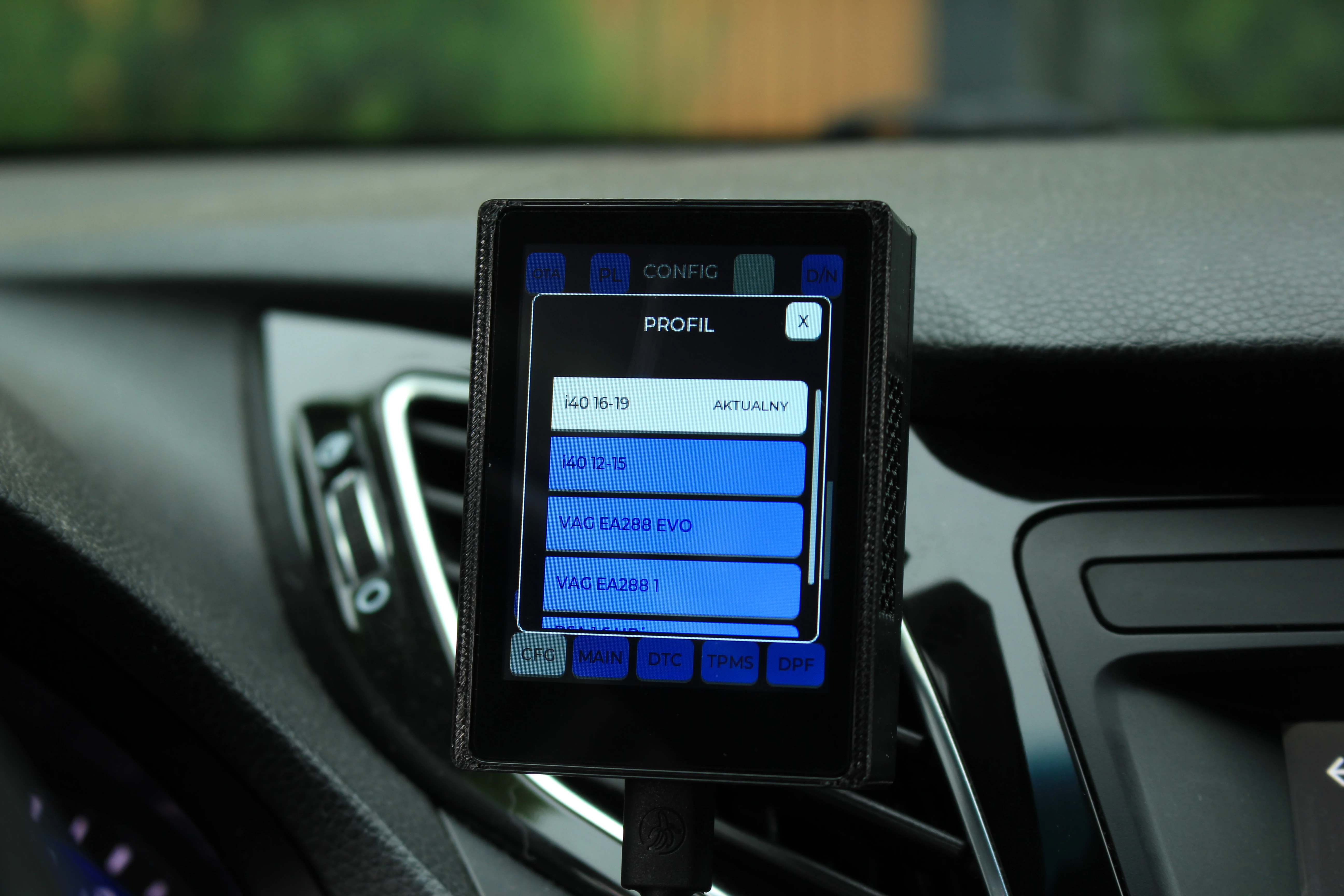

ONE MONITOR — ALL PROFILES

Access to all supported profiles at no additional cost

KIA • HYUNDAI • VAG • PSA • FORD • OPEL • VOLVO • BMW • HONDA and more

You do not buy separate profiles for additional brands.
Software updates are free for life.

Important information before purchase

Order processing time

Processing time may be longer during periods of high order volume. Every monitor is tested before shipping.

OBD2 adapter

The adapter is optional; you can use your own compatible Bluetooth 4.0 BLE adapter.

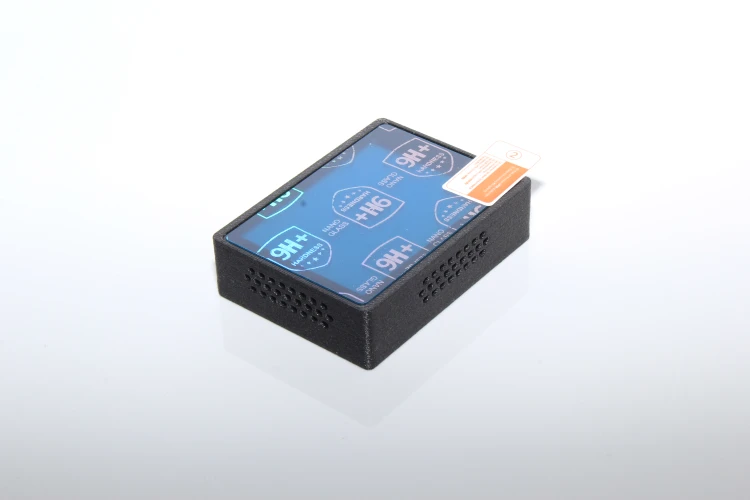

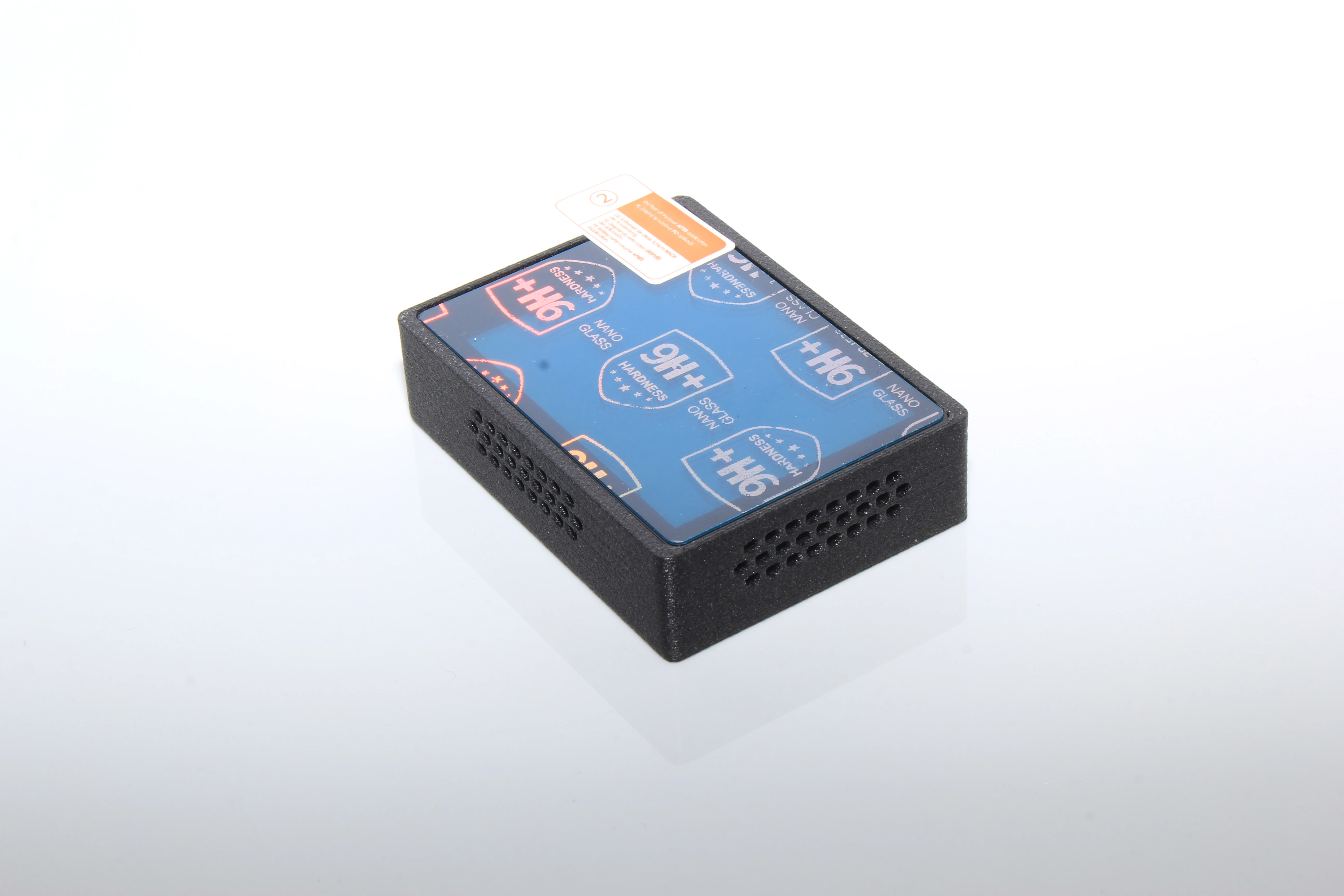

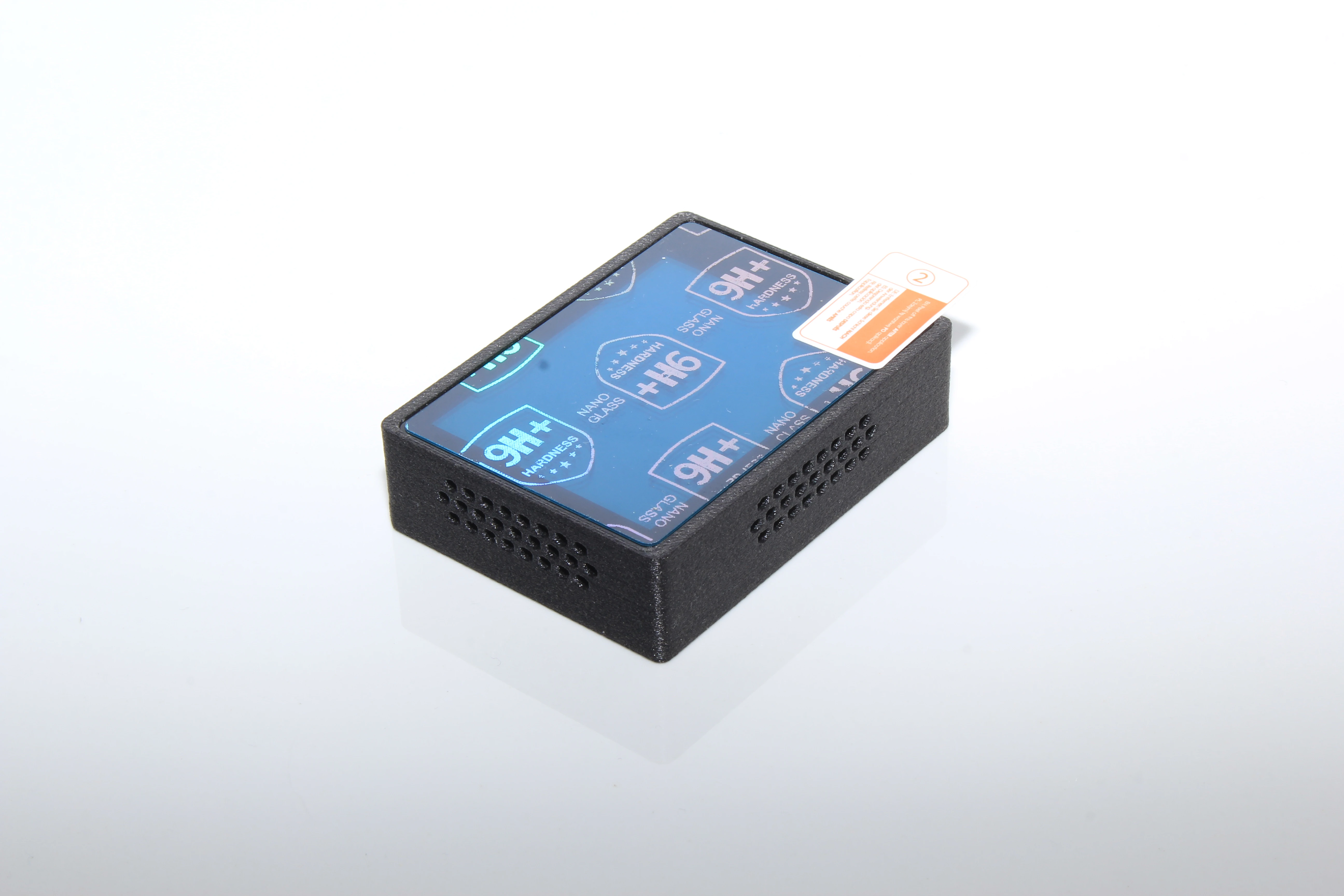

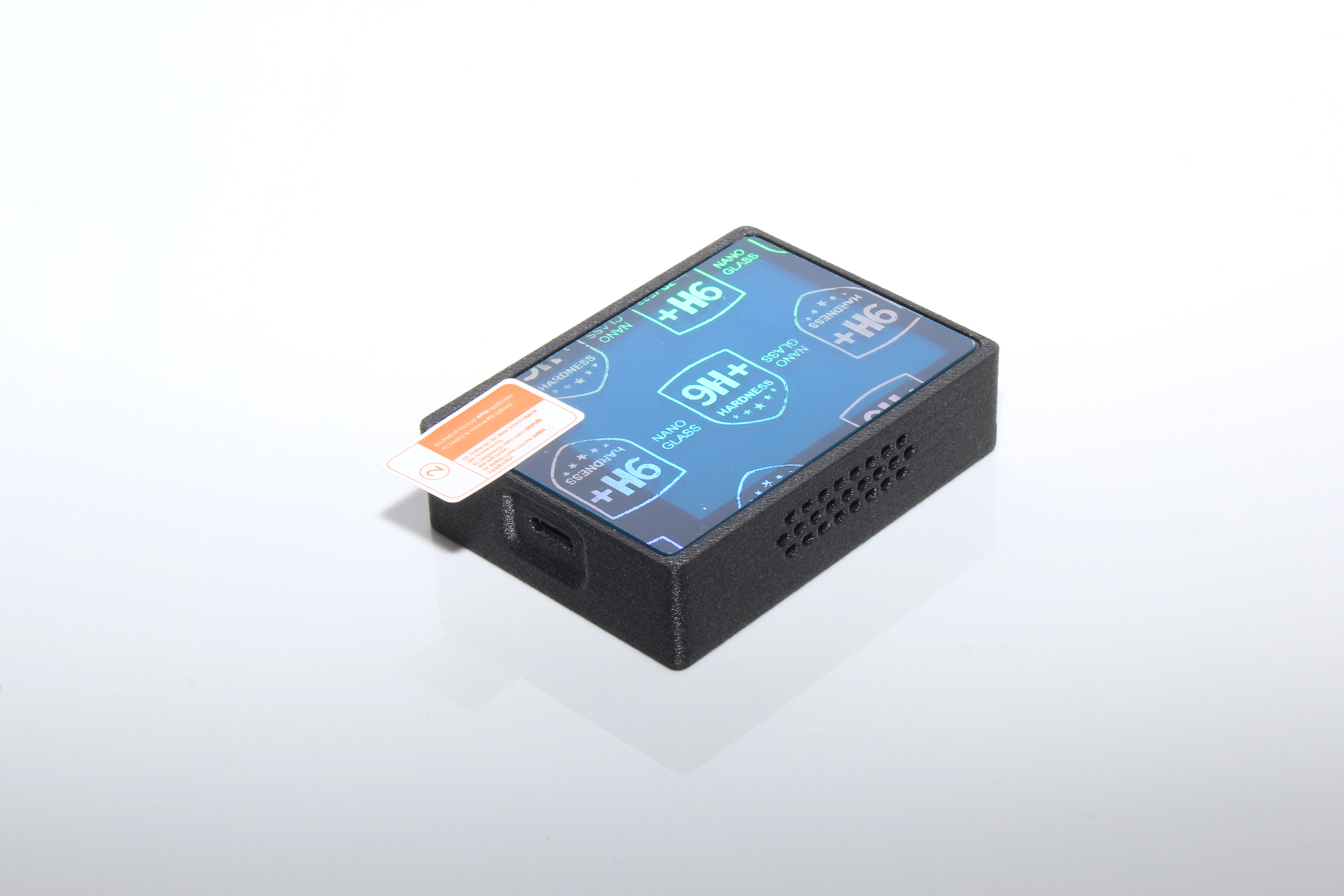

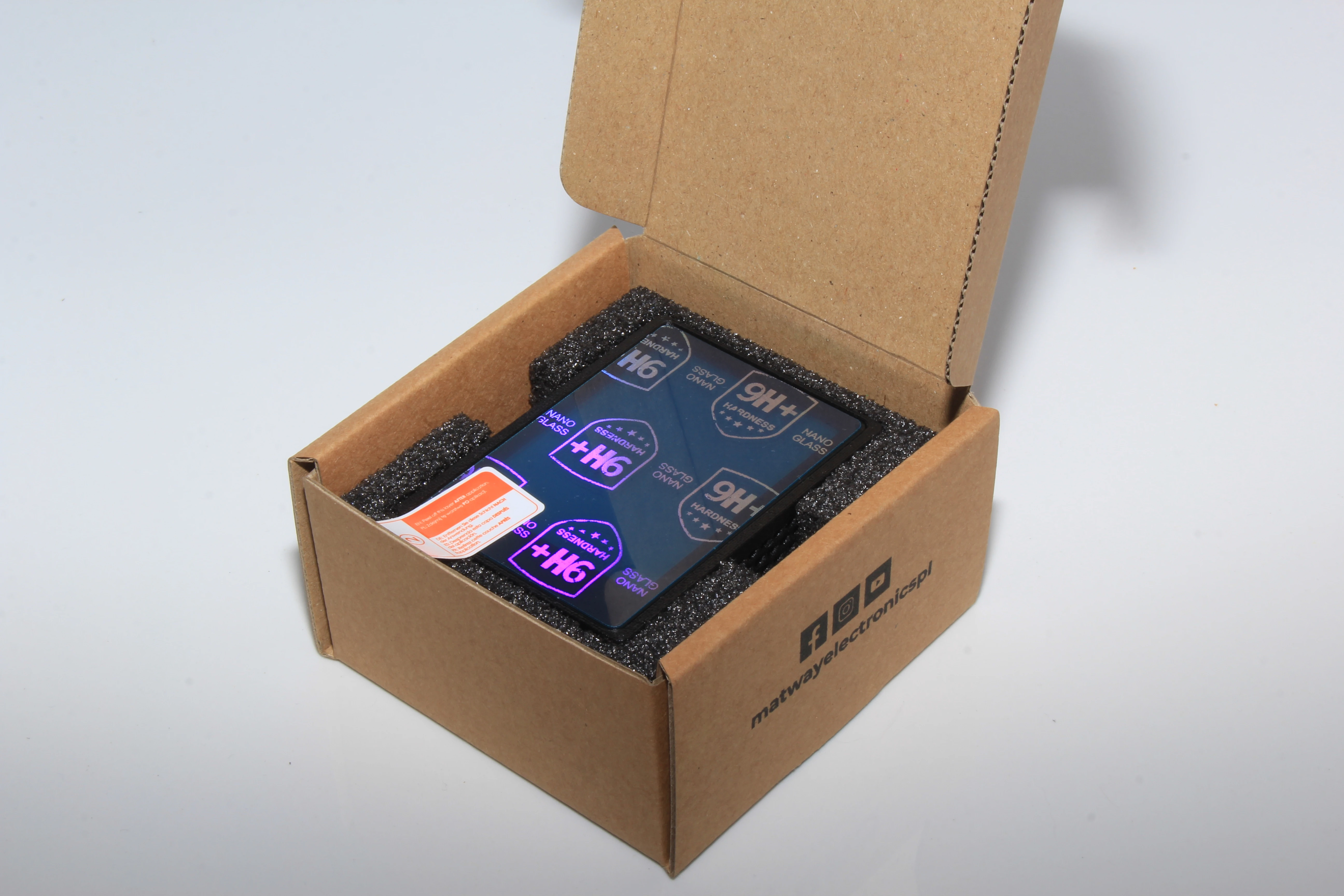

Display glass

Matte 8H glass reduces reflections and fingerprints; tempered 9H glass provides maximum clarity.

Profiles and updates

The purchase includes all current profiles and free updates.

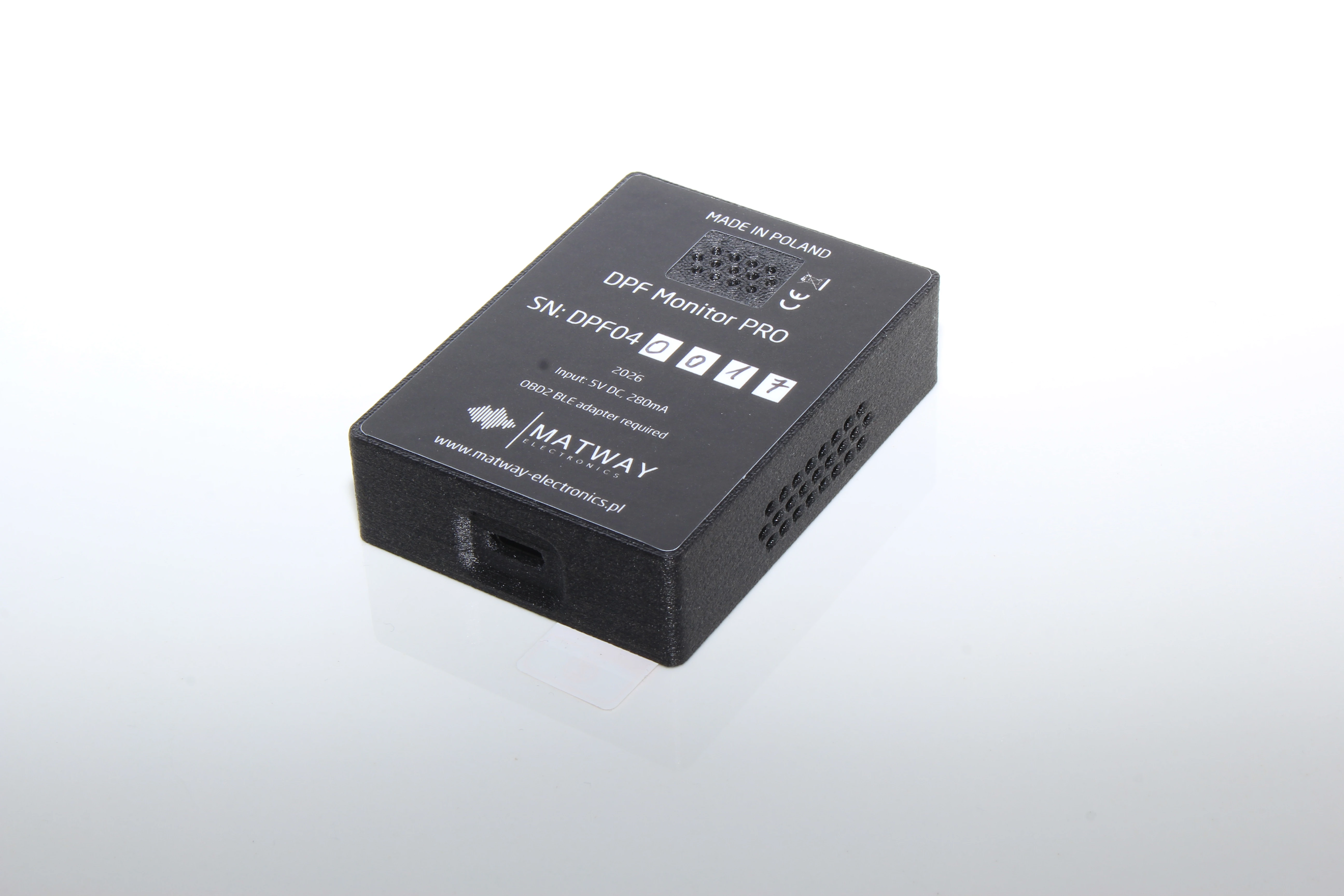

Dimensions: 56 × 76 × 20 mm2.8″ IPS displayTouch controlMenu PL/EN/UA/SK

DPF Monitor PRO - key features at a glance

DPF Monitor PRO is a standalone DPF/FAP OBD2 monitor for real-time monitoring of the particulate filter, engine parameters and - in supported vehicles - the TPMS system.

It displays, among other things, soot level, temperatures, differential pressure, distance and regeneration status.

Once the OBD2 BLE adapter has been saved, the monitor connects automatically when the vehicle is started.

What can you see at a glance?
✓ whether DPF/FAP regeneration is active
✓ filter temperatures and pressure
✓ soot level and distance since regeneration
✓ basic engine data

Follow us on Facebook:

Supported languages

The menu and voice notifications are available in:

PolishEnglishUkrainianSlovakCzechGermanGreekCroatianRussian
WORLDWIDE SHIPPINGDPF Monitor PRO ships across Europe and to many other countries worldwide. If your country is not listed in the store, please contact us.

Key DPF Monitor PRO features

DPF/FAP regeneration

Detection of regeneration start, completion and interruption.

Filter parameters

Soot, temperatures, differential pressure, distance and regeneration status.

Voice notifications

Notifications when regeneration starts and ends.

MAIN screen

Everyday view of basic engine operating parameters.

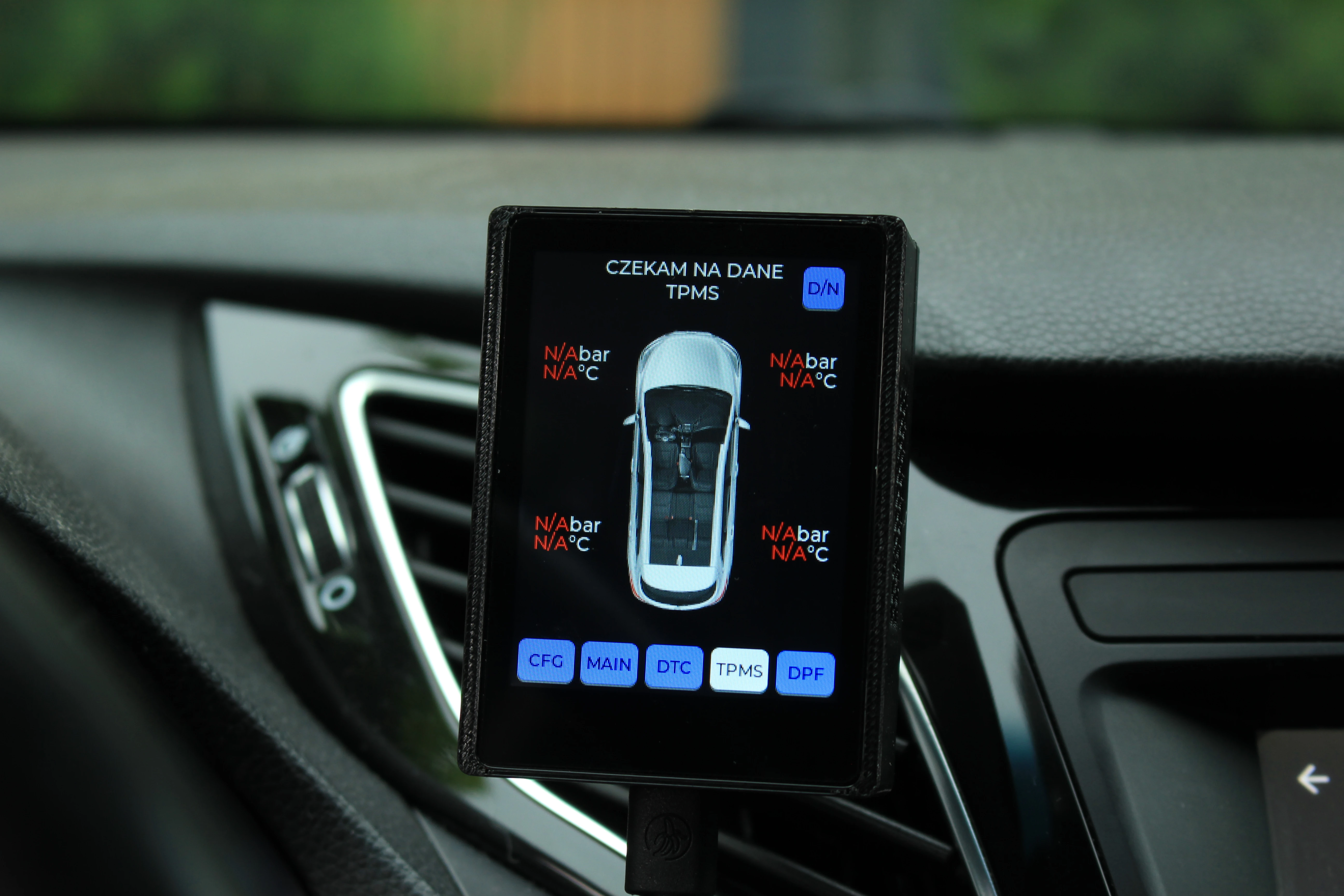

Hyundai/Kia TPMS

Direct reading of tyre pressure and temperature in supported versions.

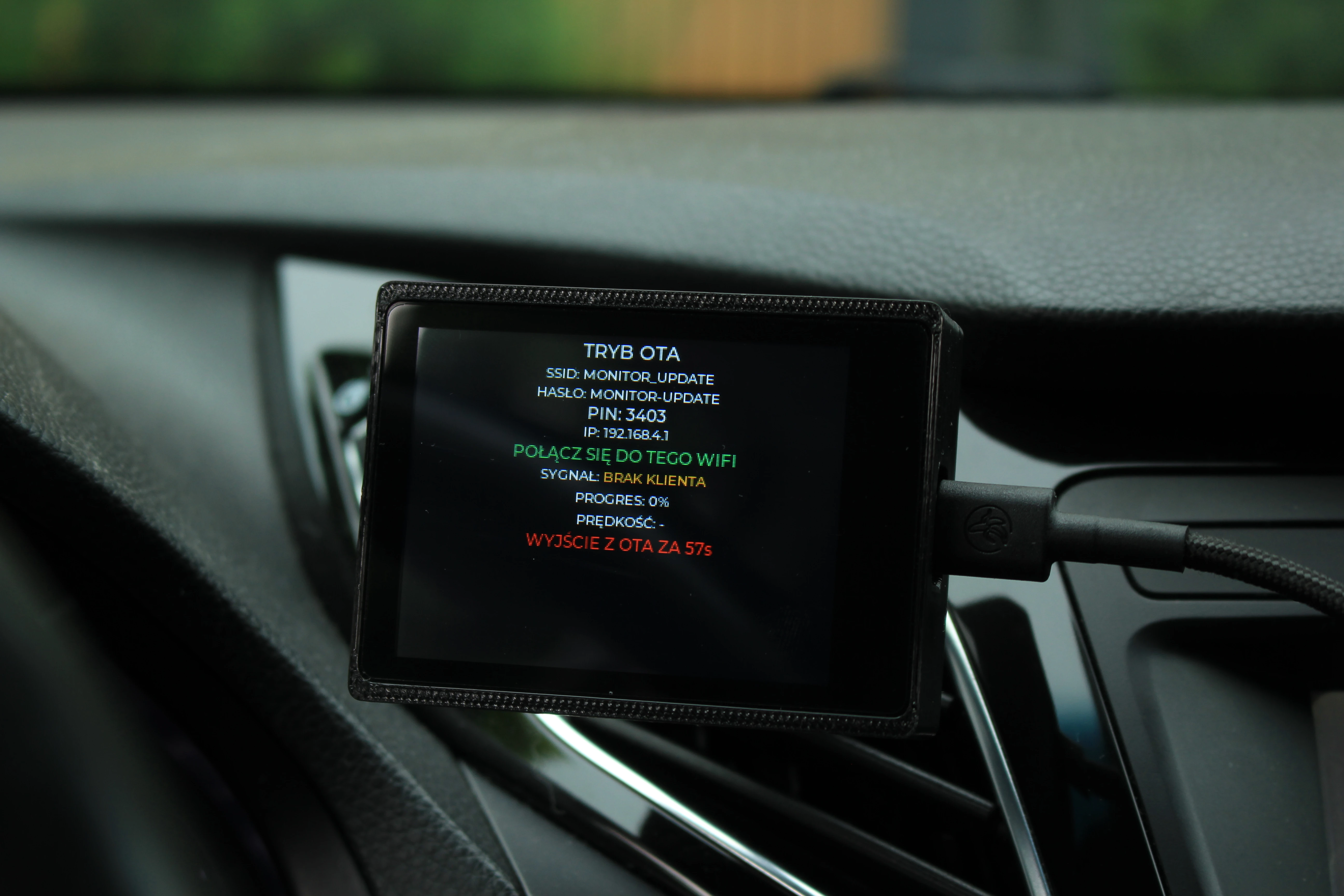

OTA updates

Wireless updates via Wi‑Fi without opening the enclosure.

Additional features:

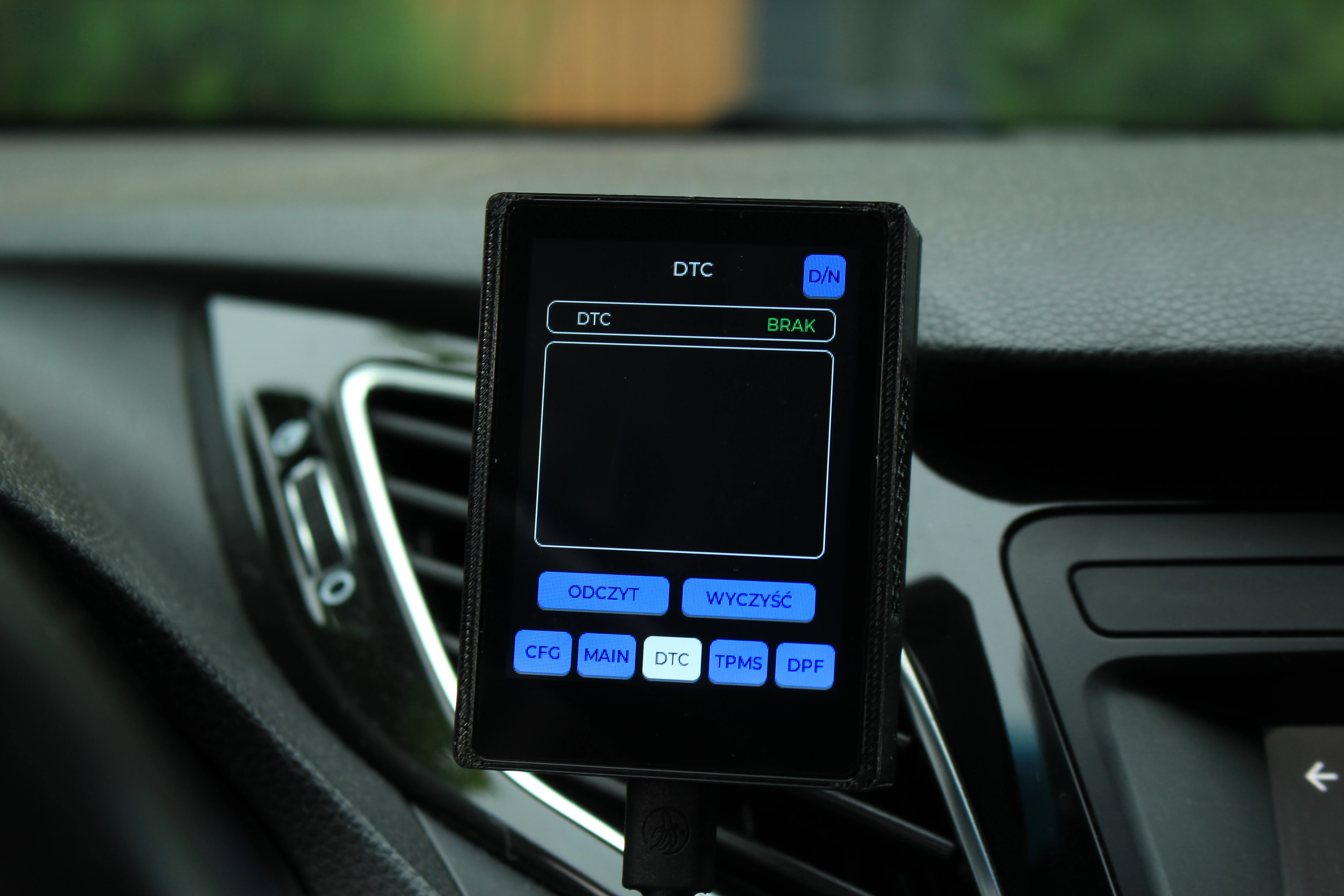

Auto LCDflashing DPF buttonoil interval counterOBD2 DTCvehicle profilesPolish characters

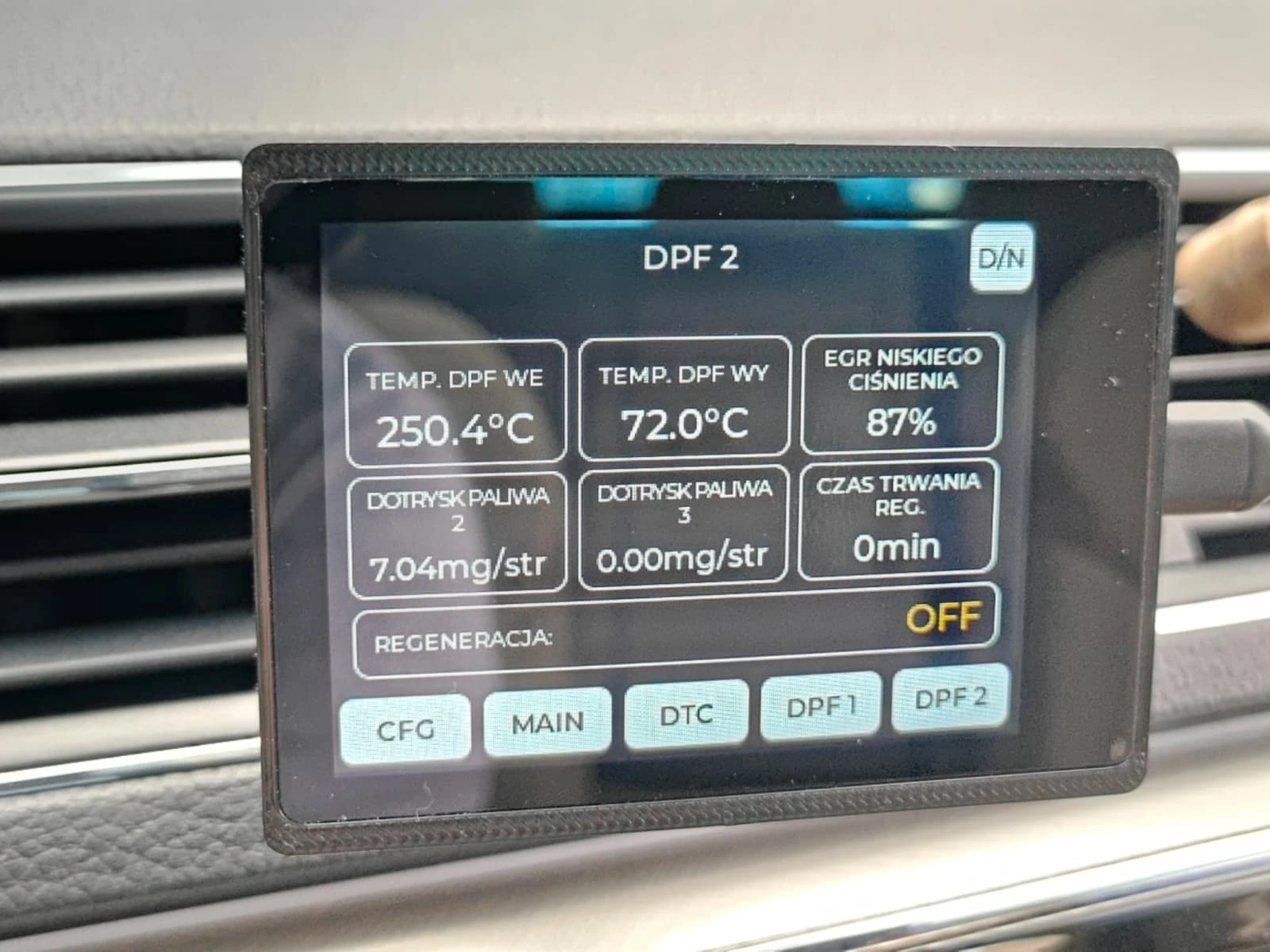

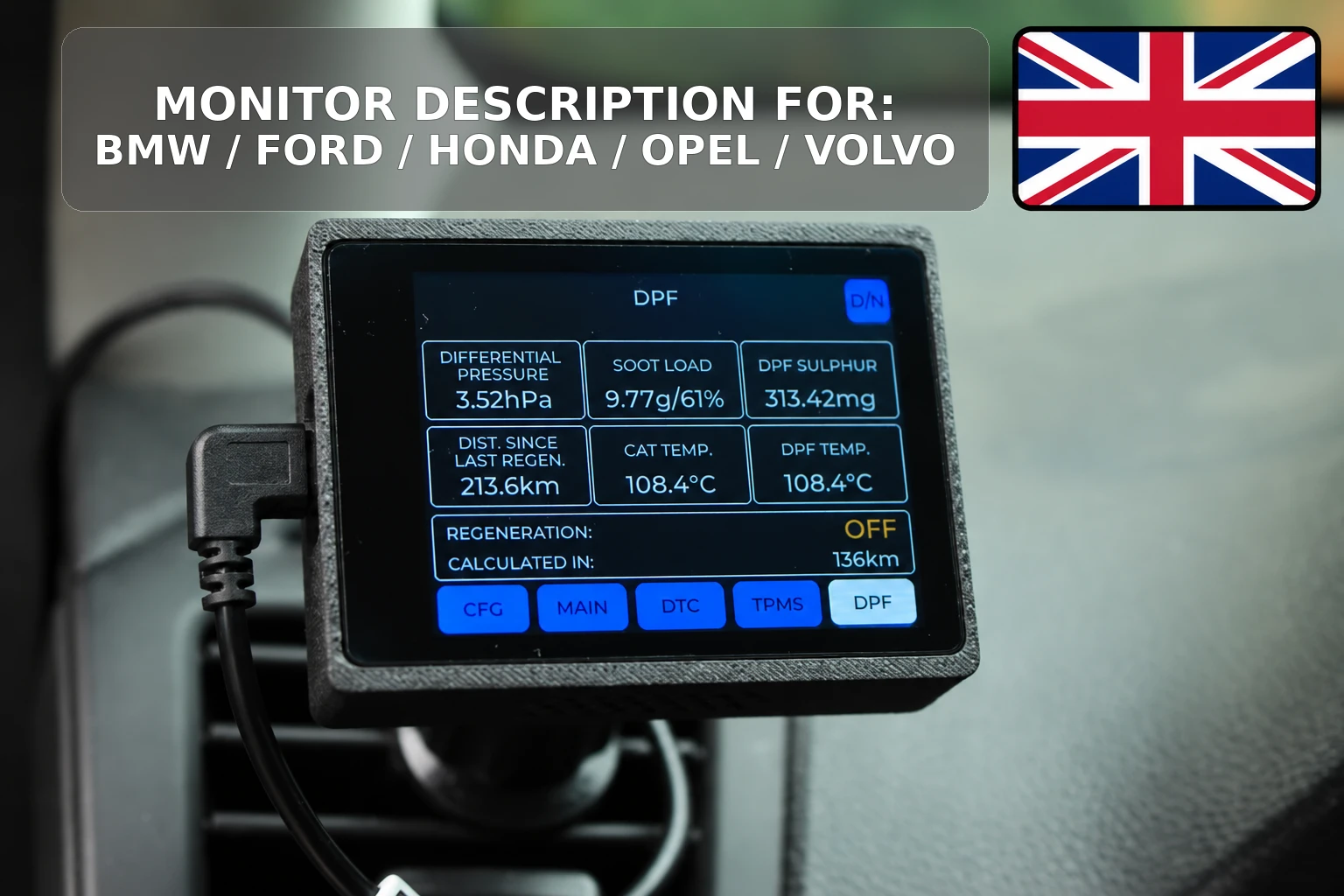

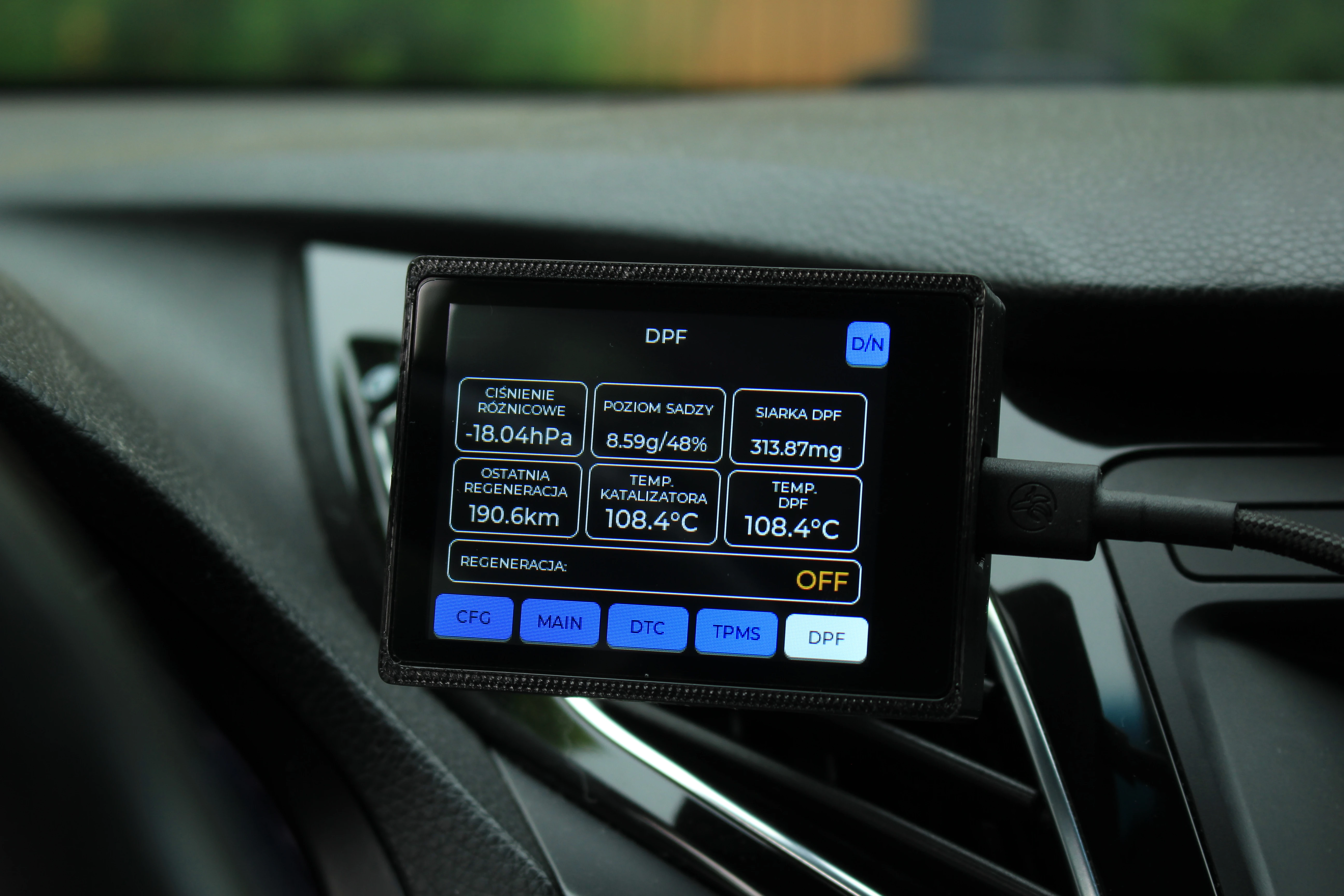

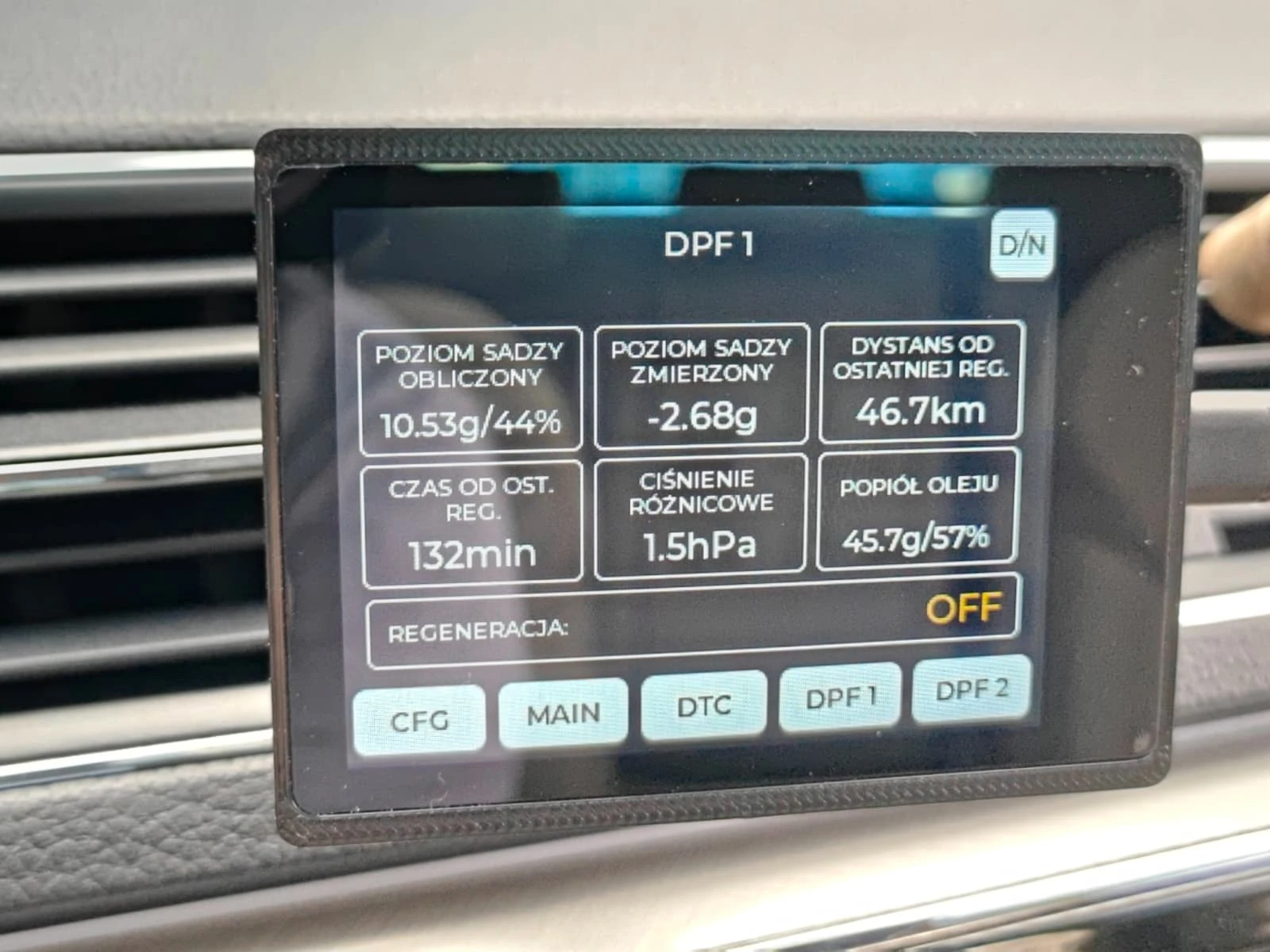

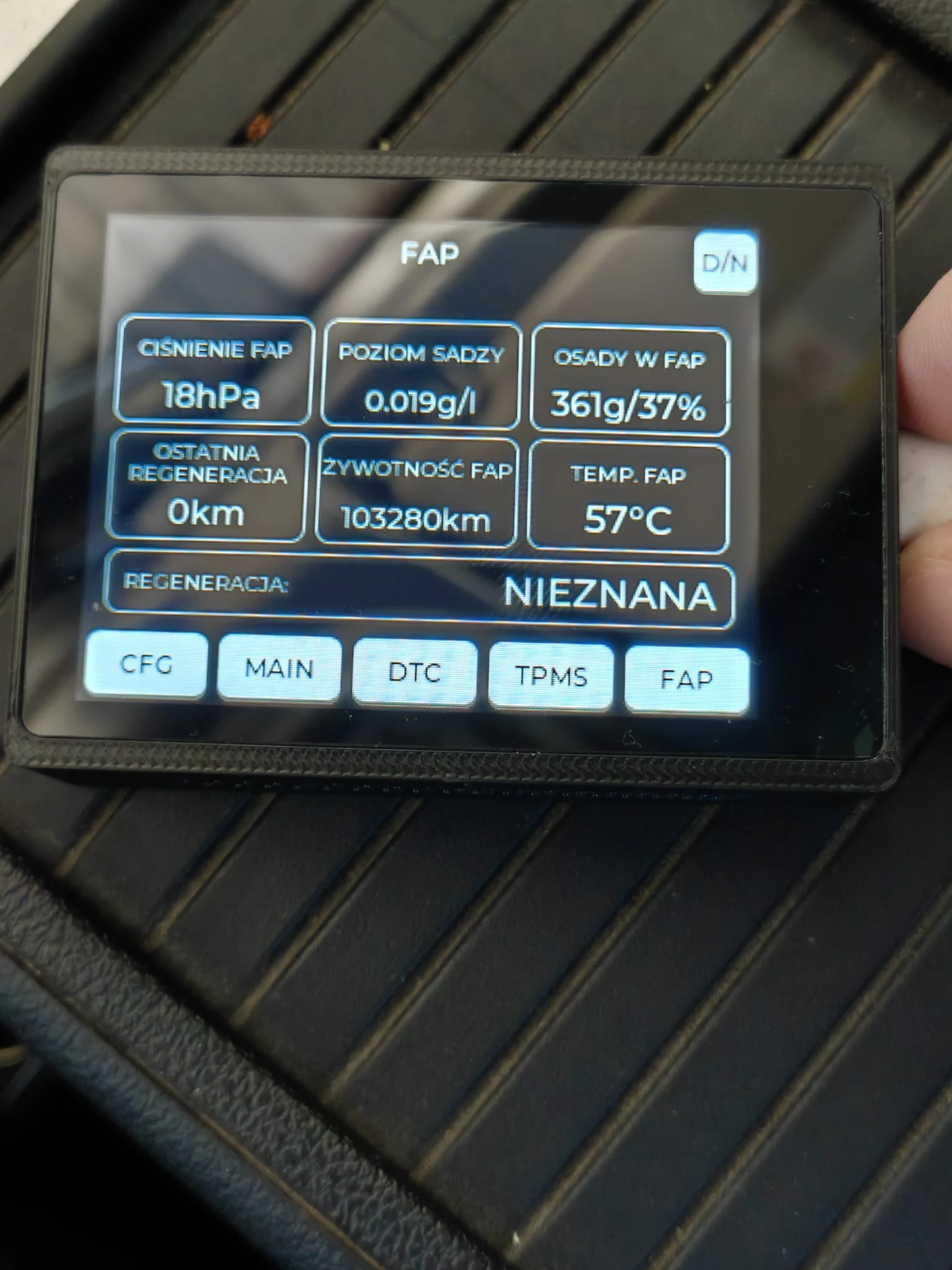

DPF/FAP regeneration monitoring

The DPF/FAP tab displays the most important filter data; the available range depends on the profile and ECU.

Sootsoot mass or filter loading level
Temperaturesfilter, catalyst, exhaust gas before or after the DPF
PressureDPF/FAP differential pressure
Regenerationdistance, time, mileage and current status

Important: not all parameters are available in every vehicle. The displayed values depend on the data provided by the specific ECU. In the PSA profile, the tab name changes from DPF to FAP.

Regeneration start notification

During regeneration, the DPF/FAP button flashes alternately in the selected colour and red.

With Auto LCD enabled, the start of regeneration wakes the screen and opens the DPF/FAP tab.

For safety, the voice notification is played twice - with a 1-minute interval for both the start and the end of regeneration.

Lower risk of interrupting DPF regeneration

Helps prevent the engine from being switched off during regeneration.

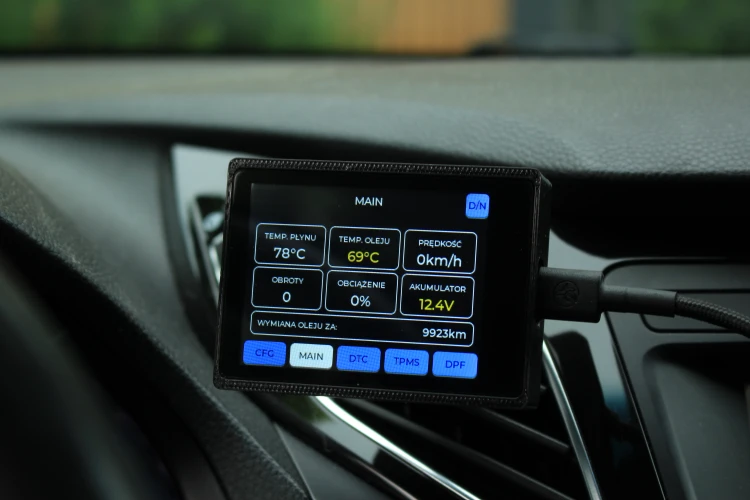

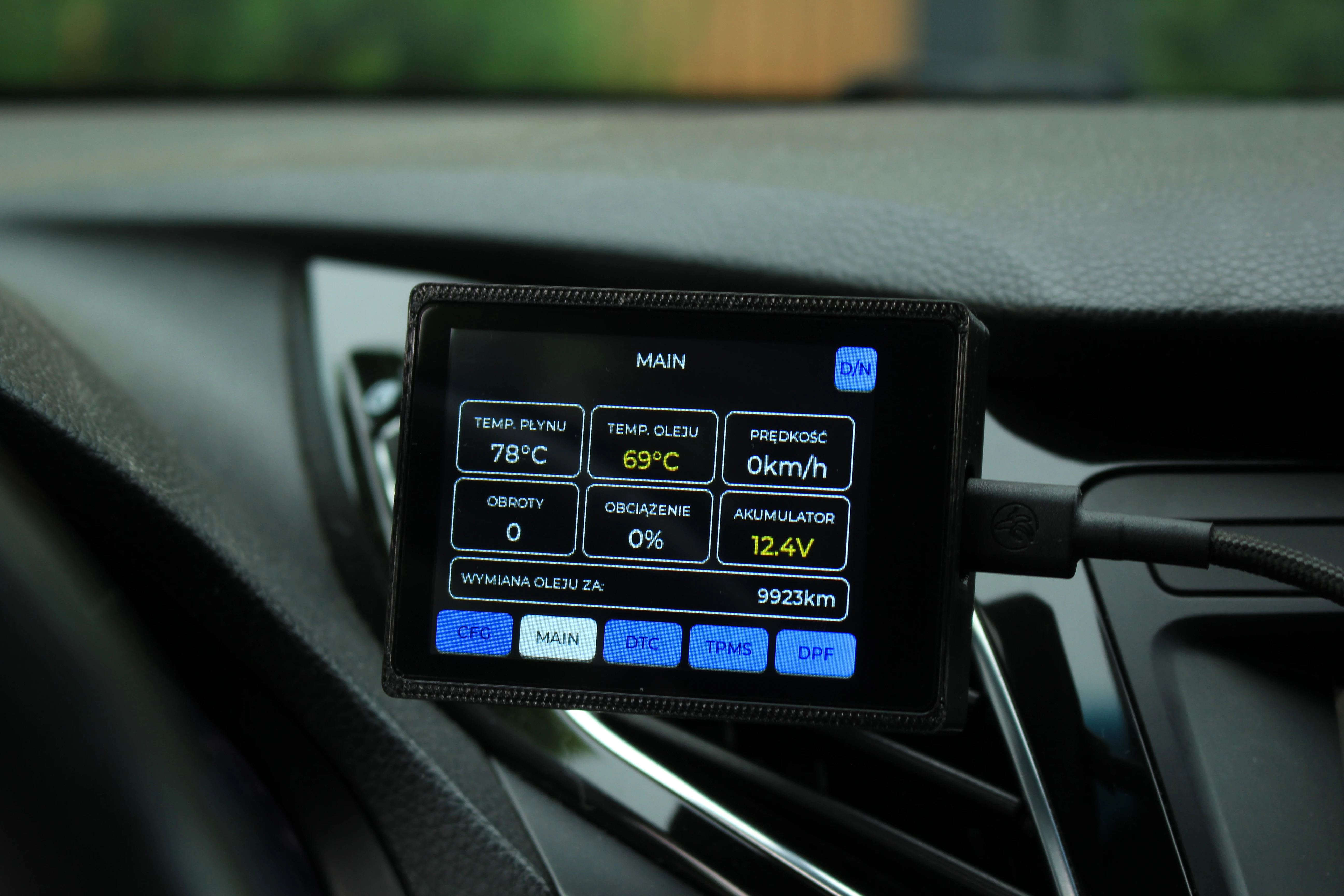

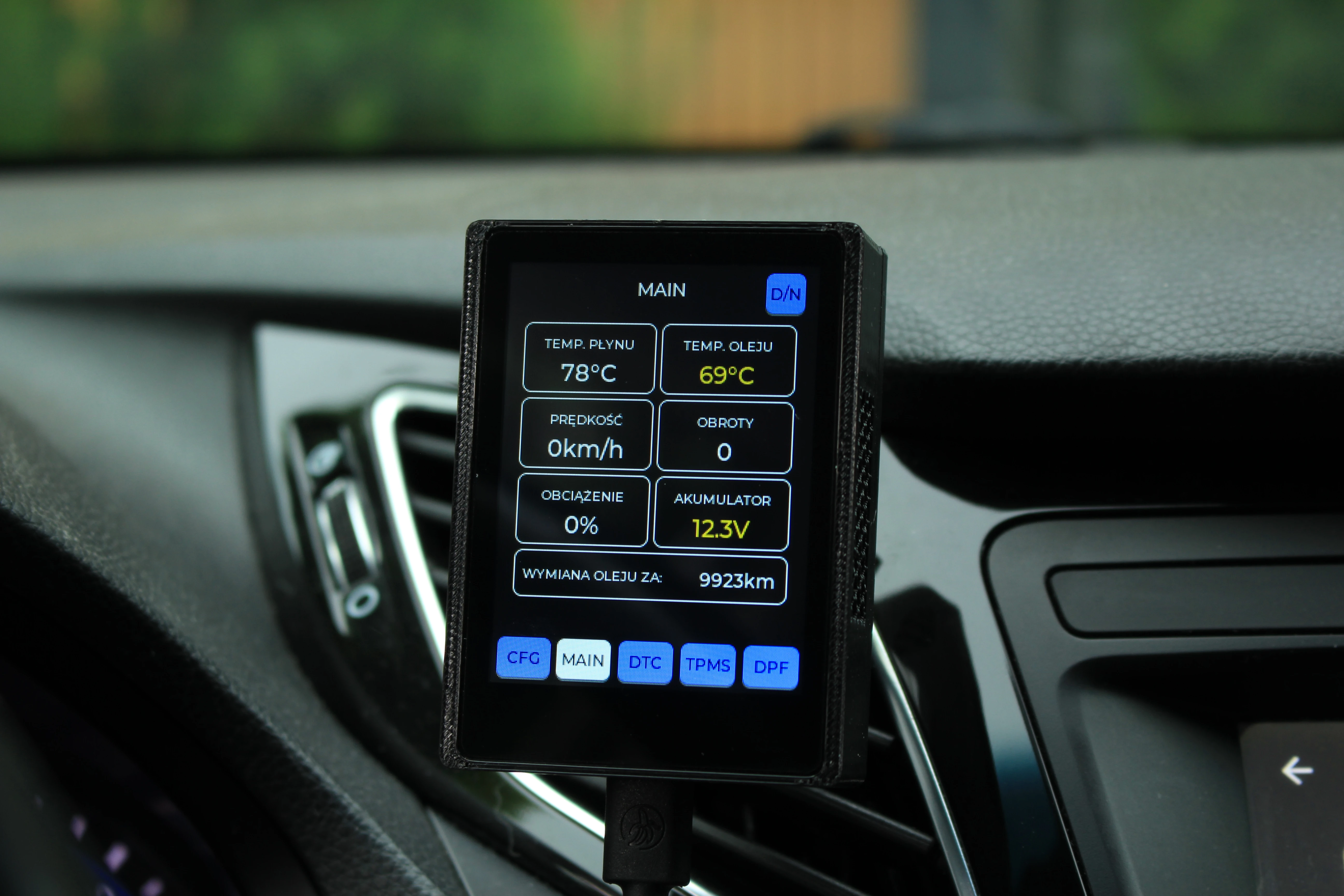

MAIN screen - basic engine parameters

MAIN displays, among other things, temperatures, speed, RPM, load, voltage and the oil interval counter.

coolant temperatureoil temperaturespeed and RPMbattery voltageengine loadoil interval

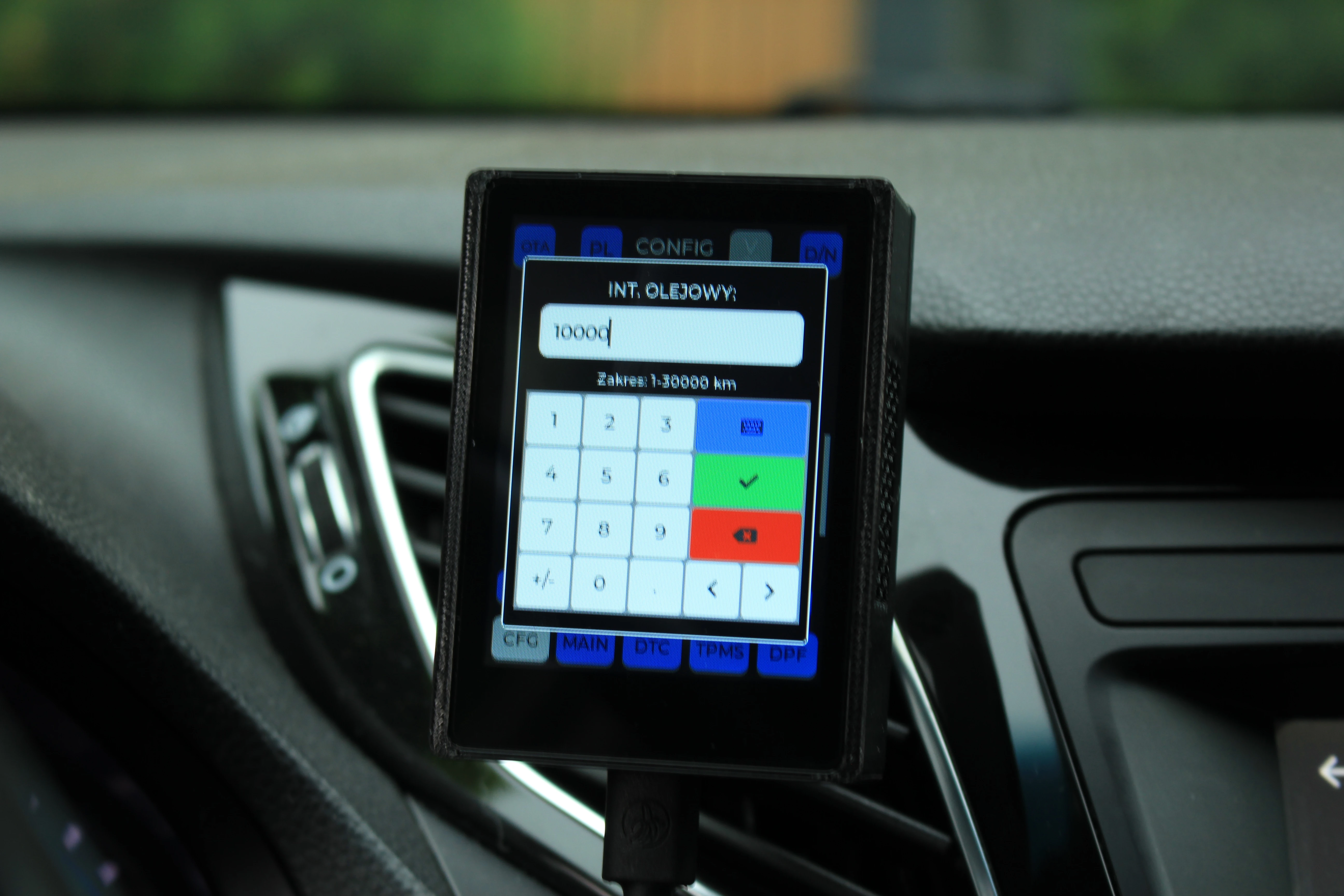

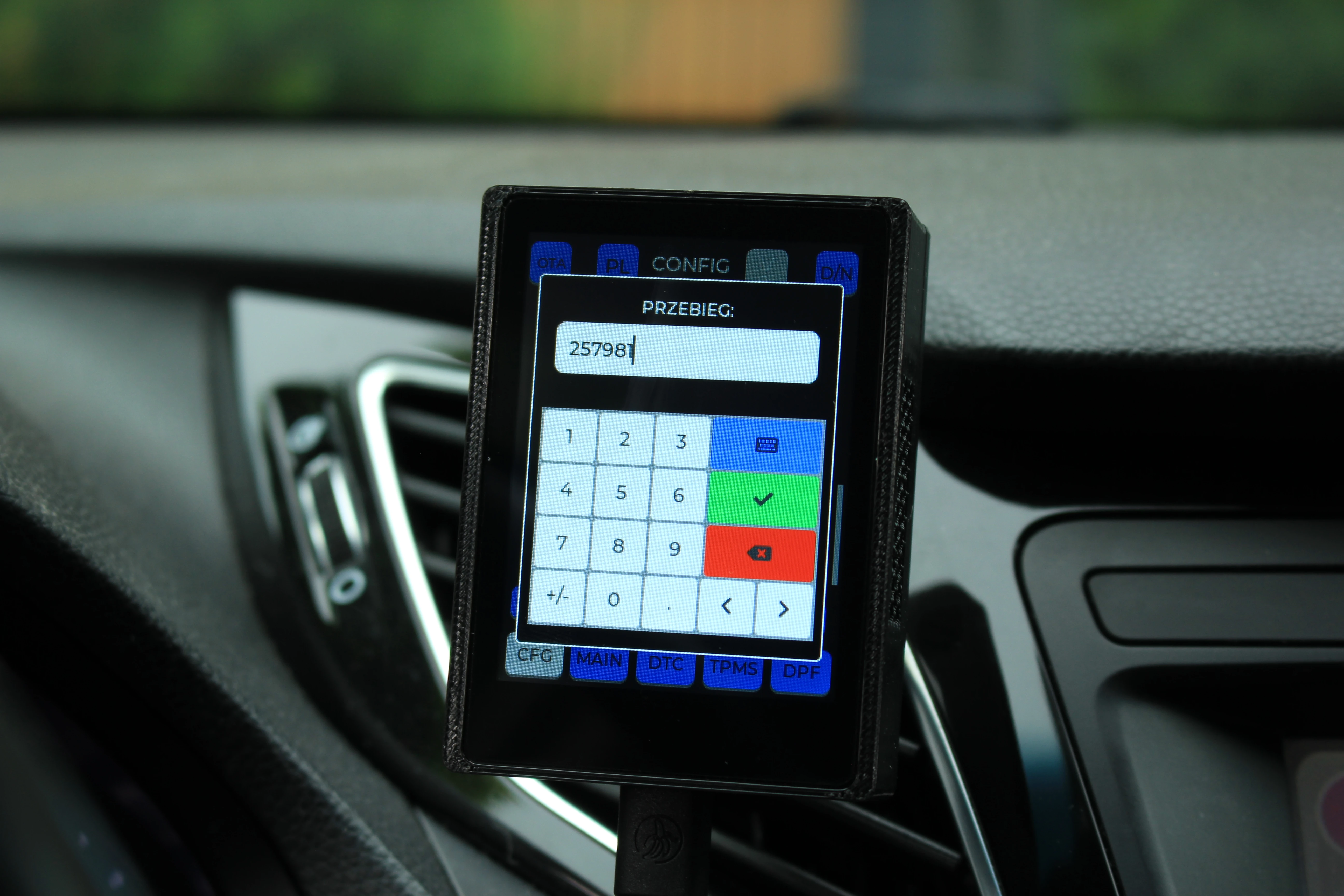

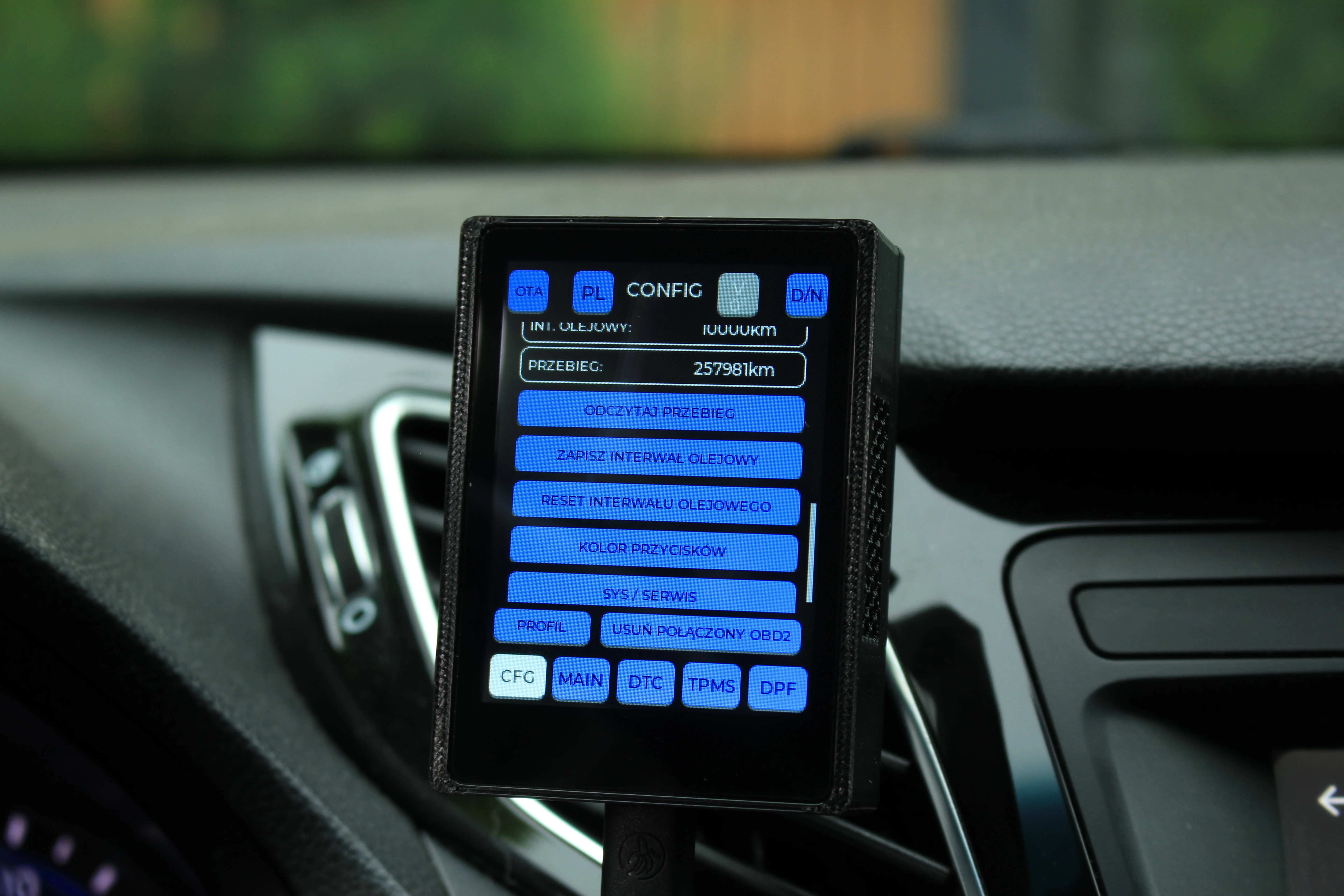

Once the interval is exceeded, the counter shows the kilometres overdue.

DPF Monitor for BMW DDE8

The BMW DDE8 profile supports DPF parameter monitoring in selected BMW models equipped with a compatible DDE8 ECU.

Additionally:
- injector correction values in the INJEC.
- target/actual oil pressure
- target/actual turbo pressure





Supported vehicles:

  • Seria 1 F20/F21: 118d, 120d — wybrane późne wersje z MD1CS001*
  • Seria 1 F40: 116d, 118d, 120d — 2019–2024*
  • Seria 2 F22/F23: 218d, 220d, 225d — wybrane późne wersje MD1*
  • Seria 2 F45/F46: 216d, 218d, 220d — do 2021*
  • Seria 2 Gran Coupé F44: 216d, 218d, 220d — 2020–2024*
  • Seria 2 G42: 220d — 2021–2024*
  • Seria 3 F30/F31: wybrane późne 320d — szczególnie końcówka produkcji*
  • Seria 3 G20/G21: 318d, 320d, 330d, M340d — 2019–2024*
  • Seria 4 F32/F33/F36: wybrane późne 420d z MD1*
  • Seria 4 G22/G23/G26: 420d, 430d, M440d — 2020/2021–2024*
  • Seria 5 G30/G31: 518d, 520d, 525d, 530d, 540d, M550d — 2017–2023*
  • Seria 6 GT G32: 620d, 630d, 640d — 2017–2023*
  • Seria 7 G11/G12: 725d, 730d, 740d, 750d — 2016–2022*
  • Seria 8 G14/G15/G16: 840d — 2018–2024*
  • X1 F48: 16d, 18d, 20d, 25d — 2015/2018–2022*
  • X2 F39: 16d, 18d, 20d, 25d — 2018–2022*
  • X3 G01: 18d, 20d, 25d, 30d, M40d — 2017–2024*
  • X4 G02: 18d, 20d, 25d, 30d, M40d — 2018–2024*
  • X5 G05: 25d, 30d, 40d, M50d — 2018–2022*
  • X6 G06: 30d, 40d, M50d — 2019–2022*
  • X7 G07: 30d, 40d, M50d — 2019–2022*

* Different ECU versions may be used in selected transition model years.

DPF Monitor for FORD

FORD profiles support DPF parameter monitoring and selected engine parameters in compatible ECU versions.

DW10C profile

2.0 TDCi Euro 5

Supported models:

  • Ford C-Max Mk2 / Grand C-Max — 08/2010–06/2015 — 2.0 TDCi
  • Ford Focus Mk3 — 01/2011–07/2015 — 2.0 TDCi
  • Ford Kuga Mk1 — 05/2010–11/2012 — 2.0 TDCi
  • Ford Kuga Mk2 — 11/2012–approx. 2014/15 — 2.0 TDCi
  • Ford Mondeo Mk4 / FL — 03/2010–12/2014 — 2.0 TDCi
  • Ford S-Max Mk1 — 03/2010–04/2015 — 2.0 TDCi
  • Ford Galaxy — 03/2010–04/2015 — 2.0 TDCi

DW10F / DW10FD / DW10FC / DW10FB / DW10FE profile

2.0 TDCi Euro 6

Supported models:

  • Focus Mk3 FL — 10/2014–2018 — 2.0 TDCi 150/185 HP
  • C-Max Mk2 FL — 04/2015–2019 — 2.0 TDCi 150/170 HP
  • Grand C-Max FL — 04/2015–2019 — 2.0 TDCi 150/170 HP
  • Kuga Mk2 / FL — 10/2014–2019 — 2.0 TDCi 150/180 HP
  • Mondeo Mk5 — 09/2014–2019 — 2.0 TDCi 120/150/180/210 HP
  • S-Max Mk2 — 05/2015–2019 — 2.0 TDCi 150/180/210 HP
  • Galaxy — 05/2015–2019 — 2.0 TDCi 150/180/210 HP
  • Edge — 01/2016–2019 — 2.0 TDCi 180/210 HP

Additional parameters in selected modelsInjector / cylinder correction values and fuel pressure can be read: target and actual values.

Bosch EDC17C70

1.5 TDCi

Supported models:

  • Ford B-Max — 2012–2017 — 1.5 TDCi
  • Ford Fiesta Mk7 / Mk7 FL — 2012–2017 — 1.5 TDCi
  • Ford Transit Courier — 2014–2018 — 1.5 TDCi
  • Ford Tourneo Courier — 2014–2018 — 1.5 TDCi
  • Ford Focus Mk3 FL — 2014–2018 — 1.5 TDCi
  • Ford C-Max Mk2 FL — 2015–2019 — 1.5 TDCi
  • Ford Grand C-Max FL — 2015–2019 — 1.5 TDCi
Additional parametersCylinder correction values 1–4, target and actual Rail fuel pressure, and extended DPF parameters including soot, differential pressure, EGT, distance and time since the last regeneration.

Bosch MD1CS005

1.5 EcoBlue / TDCi

Supported models:

  • Ford Focus Mk4 — 2018–2022 — 1.5 EcoBlue 95 / 120 HP
  • Ford Transit Connect II — 2018–2022 — 1.5 EcoBlue 75 / 100 / 120 HP
  • Ford Tourneo Connect II — 2018–2022 — 1.5 EcoBlue 75 / 100 / 120 HP
  • Ford Grand Tourneo Connect II — 2018–2022 — 1.5 EcoBlue
  • Ford Kuga Mk3 — 2019–2022 — 1.5 EcoBlue 120 HP
  • Ford Puma — 2020–2021 — 1.5 EcoBlue 120 HP
  • Ford EcoSport — 2018–2020 — 1.5 TDCi / EcoBlue 100 / 120 / 125 HP

Continental SID212 / SID212EVO

2.0 EcoBlue

Supported models:

  • Ford Focus Mk4 — 2018–2022 — 2.0 EcoBlue 150 HP
  • Ford Mondeo Mk5 FL — 2019–2021 — 2.0 EcoBlue 120 / 150 / 190 HP
  • Ford S-MAX Mk2 FL — 2019–2023 — 2.0 EcoBlue
  • Ford Galaxy Mk3 FL — 2019–2023 — 2.0 EcoBlue 150 / 190 HP
  • Ford Transit — 2019–2024 — 2.0 EcoBlue
  • Ford Transit Custom — 2019–2024 — 2.0 EcoBlue
  • Ford Tourneo Custom — 2019–2024 — 2.0 EcoBlue
  • Ford Ranger — 2019–2022 — 2.0 EcoBlue 170 / 213 HP
  • Ford Everest / Endeavour — 2019–2022 — 2.0 EcoBlue

Note: support depends on the engine ECU used. Ford may have used different ECUs in individual model years and equipment versions.

DPF Monitor for VOLVO

VOLVO profiles support DPF parameter monitoring and selected engine parameters in compatible ECU versions.

SPA / CMA — D4204T* / D420T*

Supported models:

  • Volvo XC90 II — 2015–2023/24
  • Volvo XC60 II — 2017–2023/24
  • Volvo XC40 — 2018–2021
  • Volvo V90 — 2017–2023/24
  • Volvo V90 Cross Country — 2017–2023/24
  • Volvo S90 — 2017–2023/24
  • Volvo V60 II — 2019–2023/24
  • Volvo V60 Cross Country — 2019–2023/24

VEA

Supported models:

  • Volvo V40 II — 2014–2019
  • Volvo S60 II — 2014–2018
  • Volvo V60 I — 2014–2018
  • Volvo S80 II — 2014–2016
  • Volvo V70 III — 2014–2016
  • Volvo XC70 II — 2014–2016
  • Volvo XC60 I — 2014–2016

P3 — 5-cylinder diesel engines D3 / D4 / D5

D5204T* / D5244T*

Supported models:

  • Volvo S80 II — 2006–2016
  • Volvo V70 III — 2007–2016
  • Volvo XC70 II — 2008–2016
  • Volvo XC60 I — 2009–2017
  • Volvo S60 II — 2011–2018
  • Volvo V60 I — 2011–2018
  • Volvo S60 Cross Country — 2016–2018
  • Volvo V60 Cross Country — 2016–2018

Distance since last regeneration The engine ECU in this group does not directly provide the parameter “DISTANCE SINCE LAST REGENERATION”. DPF Monitor PRO calculates it using its own algorithm based on detected regenerations. After the first complete regeneration performed with the monitor connected, the parameter is initialised and its value is displayed on the screen from that point onward.

DPF Monitor for HONDA

HONDA profiles support DPF parameter monitoring and injector correction values in compatible engine ECU versions.

Supported HONDA parameters

Depending on the installed ECU, the monitor can display: DPF soot mass, DPF temperature, differential pressure, distance and time since the last regeneration, and current regeneration status.

For profiles N15A1, N16A1, N16A2, N16A3 and N22B, DPF oil ash is also available. The N16A4 profile displays exhaust gas flow instead of oil ash.

INJEC tab: injector correction values C1–C4 and Rail fuel pressure — target and actual.



N15A1-1 / N15A1-2

1.5 i-DTEC — DPF / BS6 versions

Supported models:

  • Honda City V — 2020–2023 — 1.5 i-DTEC — N15A1-1
  • Honda Amaze II — 2020–2023 — 1.5 i-DTEC — N15A1-1
  • Honda WR-V — 2020–2023 — 1.5 i-DTEC — N15A1-2

N16A1 / N16A2 / N16A3

1.6 i-DTEC 120 HP

Supported models:

  • Honda Civic IX — approx. 2013–2017 — 1.6 i-DTEC 120 HP — N16A1
  • Honda Civic IX Tourer — approx. 2014–2017 — 1.6 i-DTEC 120 HP — N16A1
  • Honda Civic X — approx. 2018–2019 — 1.6 i-DTEC 120 HP — N16A1
  • Honda CR-V IV — 2013–2018 — 1.6 i-DTEC 120 HP 2WD — N16A2
  • Honda HR-V II — 2015–2018 — 1.6 i-DTEC 120 HP — N16A3

N16A4

1.6 i-DTEC BiTurbo 160 HP AWD

Supported models:

  • Honda CR-V IV FL — 2015–2018 — 1.6 i-DTEC BiTurbo 160 HP AWD
N16A4 profile differenceInstead of the DPF oil ash parameter, the monitor displays exhaust gas flow.

N22B1 / N22B2 / N22B3 / N22B4

2.2 i-DTEC 150 / 180 HP

Supported models:

  • Honda Accord VIII — 2008–2015 — 2.2 i-DTEC 150 HP — N22B1
  • Honda Accord VIII — approx. 2011–2015 — 2.2 i-DTEC 180 HP — N22B2
  • Honda CR-V III — approx. 2010–2012 — 2.2 i-DTEC 150 HP — N22B3
  • Honda Civic IX — 2012–2015 — 2.2 i-DTEC 150 HP — N22B4
  • Honda CR-V IV — 2012–2015 — 2.2 i-DTEC 150 HP — N22B4

Note: different ECU versions may be used in some model years. Compatibility should be checked primarily by engine code and ECU version.

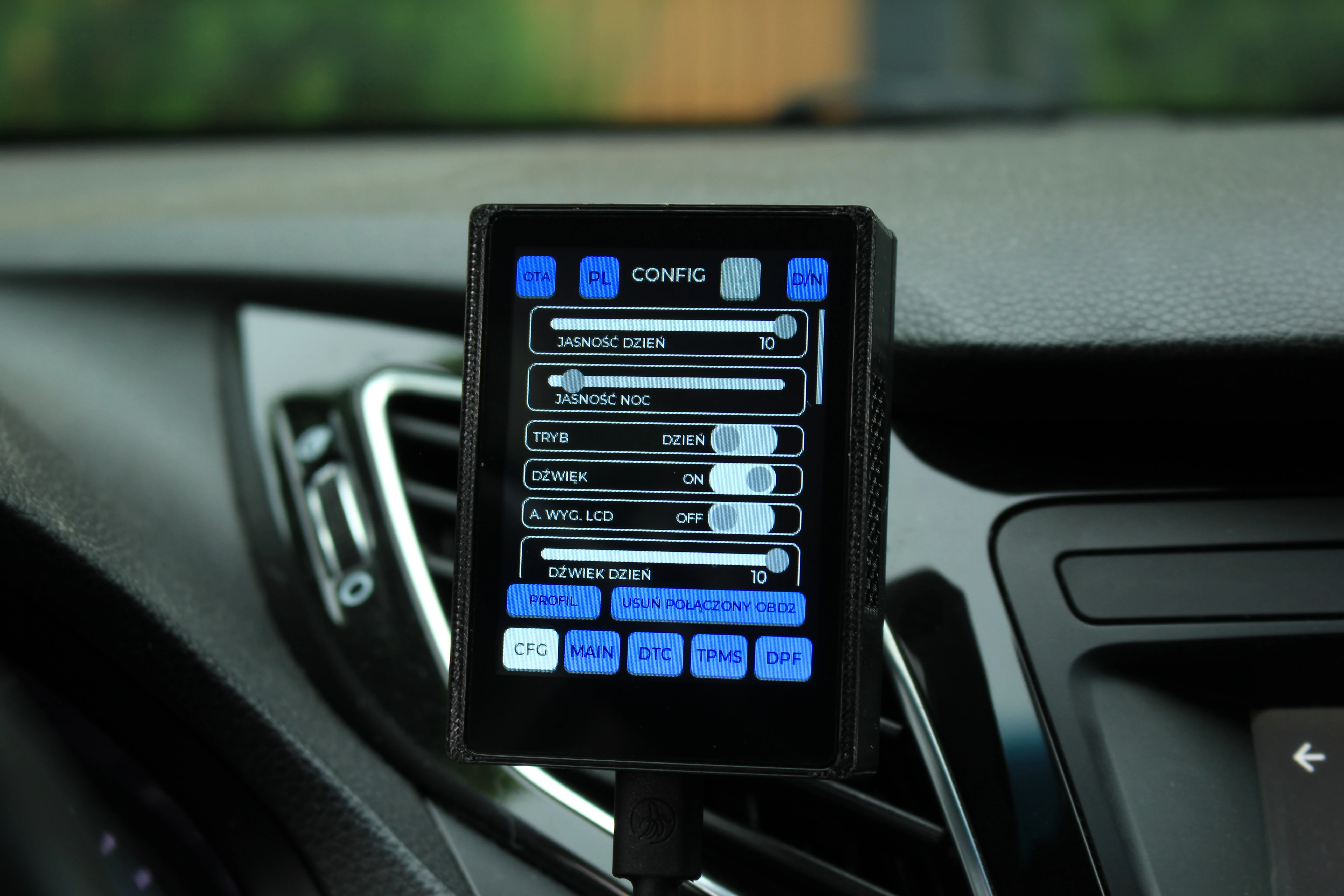

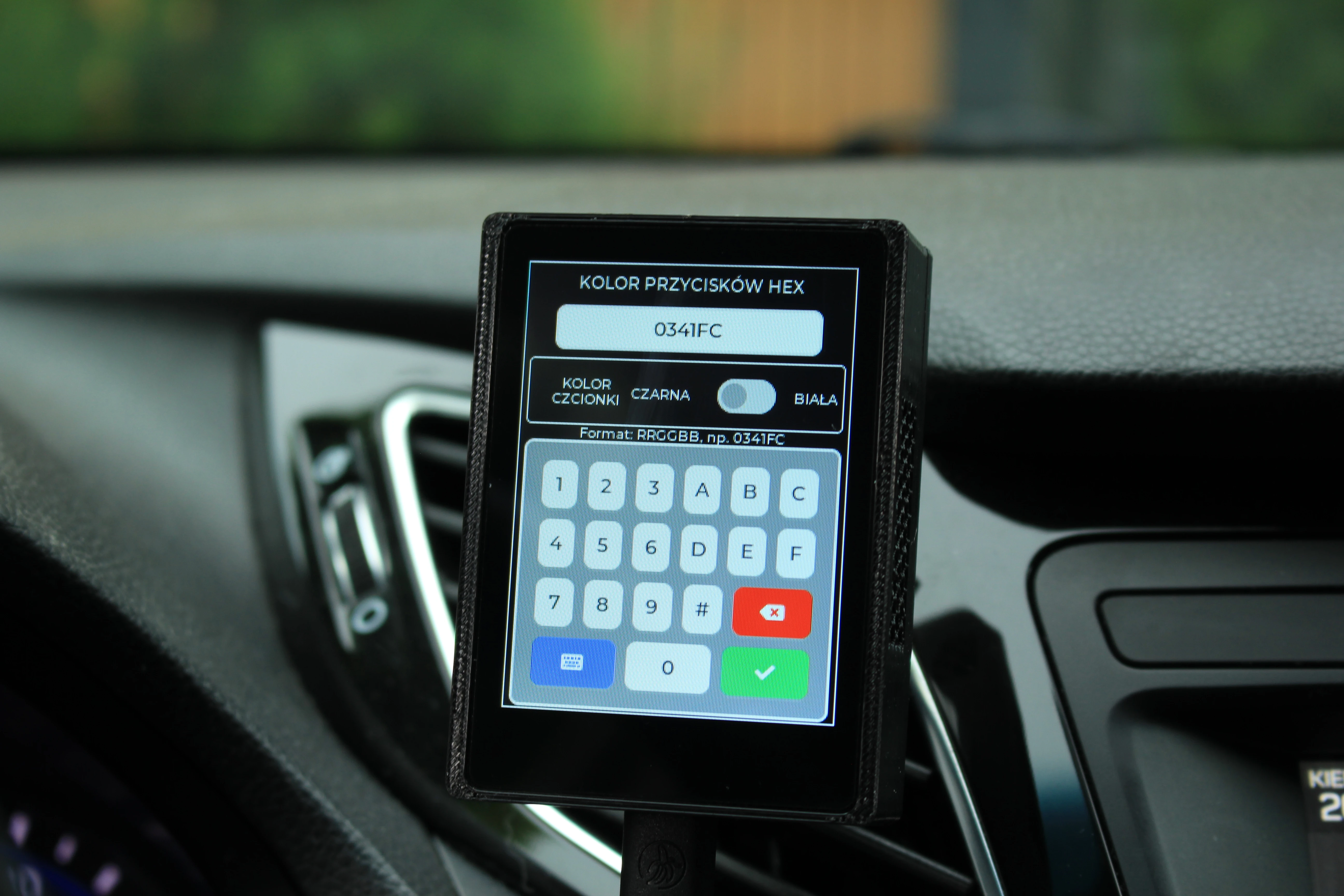

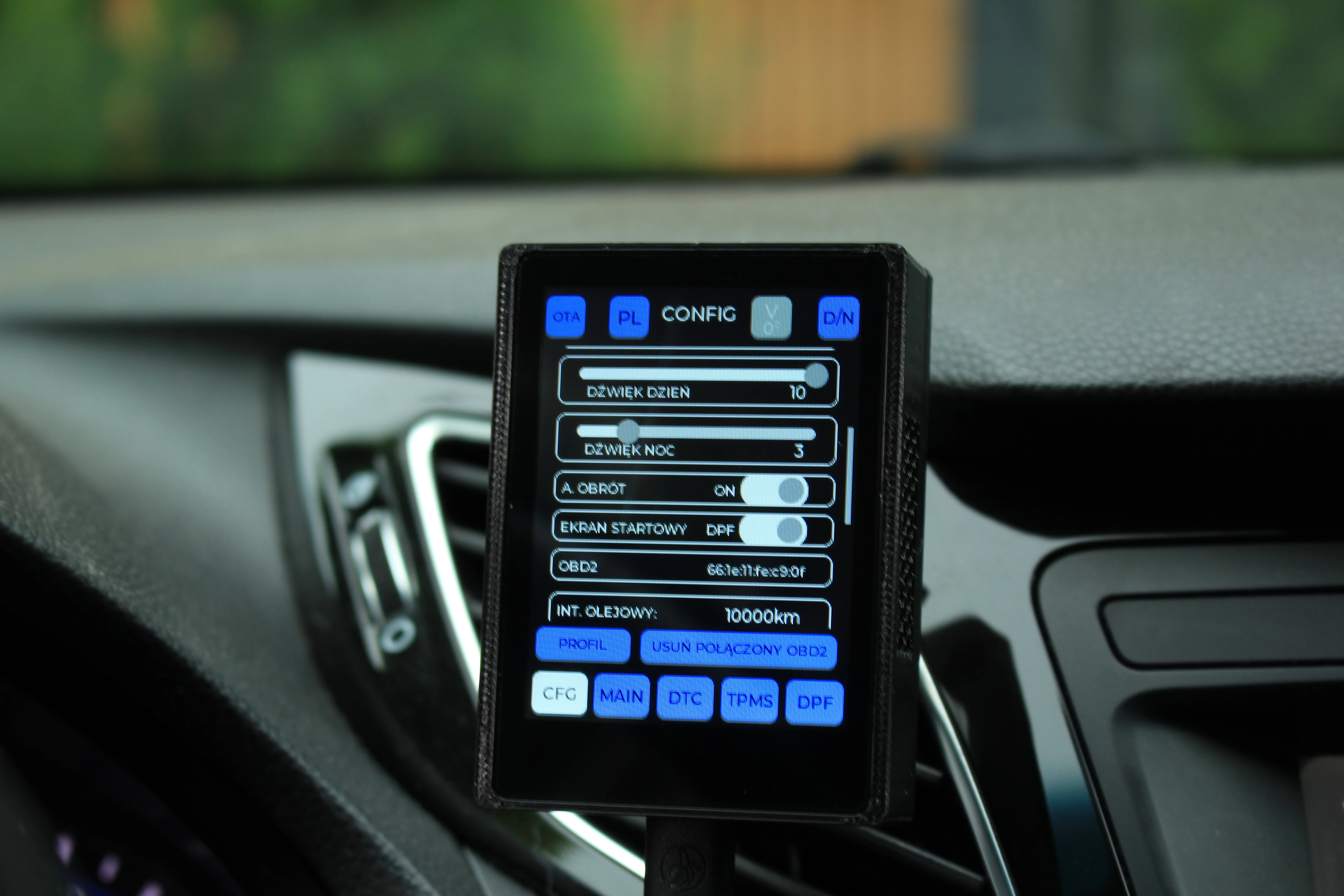

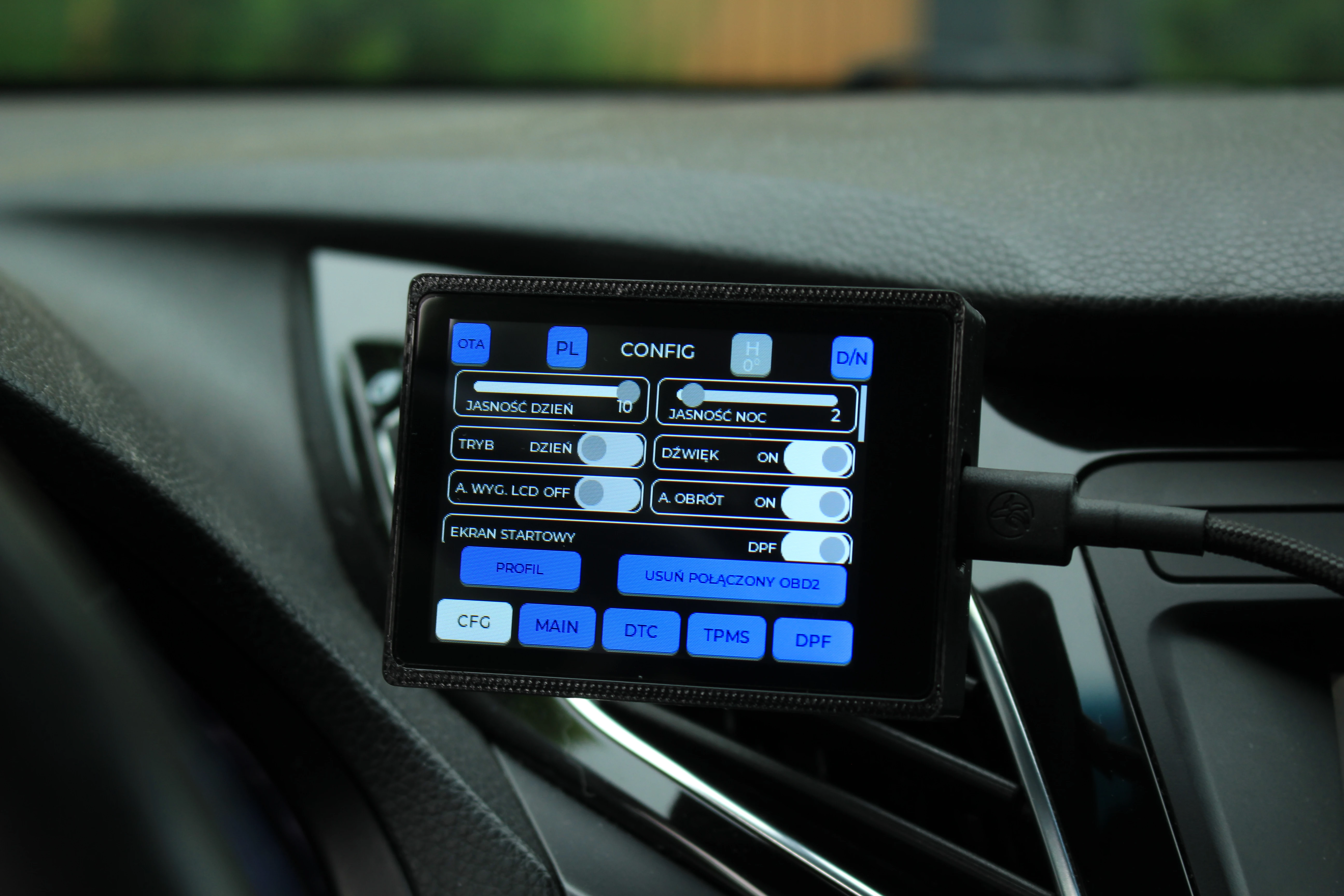

Appearance and operation customisation

Adjust the monitor to your vehicle and your preferences. Settings are stored in the device memory, so after a restart the monitor returns to the selected appearance and operating mode.

Day/nightseparate brightness and volume
Orientationportrait, landscape and 180° rotation
Auto LCDscreen sleep and wake
Colourscustom HEX and light/dark text
Most convenient options
✓ MAIN or DPF/FAP startup screen✓ single or double voice notification✓ manual screen-off with a double tap✓ automatic rotation using the IMU sensor✓ separate colours for vehicle profiles

Free Wi-Fi OTA updates

DPF Monitor PRO updates wirelessly via Wi-Fi without opening the enclosure.

OTA mode creates a Wi-Fi network and displays the installation PIN.

Updates are free and may include:

  • support for additional models and ECUs,
  • additional parameters,
  • communication fixes,
  • new features,
  • interface changes,
  • stability improvements.

Files and the changelog are published on the product page.





Reading and clearing DTCs

Reading and clearing standard OBD2 fault codes from the engine ECU/ECM and emissions system.

This function is not a full scanner for all modules and does not cover:

  • BCM or BSI,
  • ABS and ESP,
  • TPMS,
  • airbags,
  • transmission,
  • comfort modules.

Additional modules may be added in future updates.

Build and technical specifications

Key technical specifications:

Display2.8″ IPS, touch, 240 × 320 px, wide viewing angle.
Glassstandard 9H tempered glass or optional matte 8H hybrid glass.
Power supplyUSB-C 5 V, maximum current draw below 280 mA.
Enclosurecompact dimensions 56 × 76 × 20 mm, metal plate for a magnetic mount.
CommunicationOBD2 BLE adapters, including vGate vLinker MC+ and vLinker MC-iOS, vGate PRO 2s
SoftwarePL/EN/UA/SK menu, Polish characters, voice notifications and Wi‑Fi OTA updates.
In practice, this means:
compact sizeclear displaymagnetic mountingfree OTA updatessupport for PL/EN/UA/SK/CZ/DE/GR/HR/RU

Important compatibility information

The range of available parameters depends on:

  • vehicle model and model year,
  • engine code,
  • ECU version,
  • vehicle control-module software,
  • ABS or TPMS system version,
  • OBD2 BLE adapter used.

The same model may use different ECUs. Check compatibility using the vehicle’s full details, and for VAG vehicles, primarily by engine code.

Frequently asked questions

Does DPF Monitor PRO show active DPF/FAP regeneration?

Yes. It shows the regeneration status, can wake the screen and play a voice notification.

Does the monitor require a phone?

No. Once the OBD2 BLE adapter has been saved, the monitor connects automatically.

Will a standard Bluetooth ELM327 adapter work?

A compatible Bluetooth 4.0 BLE adapter is required; Bluetooth Classic may not work.

Do all parameters work in every vehicle?

No. The available data depends on the model, engine code and ECU.

Monitor DPF/FAP regeneration on every drive

DPF Monitor PRO lets you monitor the filter without opening a phone app.

Automatic connection, the touchscreen and voice notifications help you recognise and complete regeneration.

Not sure whether your vehicle is supported?

Send us the model, model year, engine capacity, power and engine code - we will check compatibility.

Software version history

v1.2.1

  • New CFG menu — completely redesigned with a clearer settings layout, created to make operation as simple as possible.
  • VAG 3.0 V6 TDI — added support for ASB, BMK, BKS, BUG, BUN, BNG and BKN engines.
  • VAG — added injector correction value display for supported profiles.
  • VAG AdBlue — added AdBlue level/status display in selected models; from version 1.2.1 the function is disabled by default and can be enabled in settings.
  • KIA/HYUNDAI — added support for the DCM7.1AP ECU.
  • FORD — added support for the DW10F, MD1CS005 and SID212/SID212EVO families.
  • VOLVO — added support for SPA, VEA and P3 platforms.
  • HONDA — added support for N15A, N16A and N22B engines.
  • BMW — added support for the DDE8 ECU.
  • KIA/HYUNDAI 7DCT — added 7DCT transmission parameter display, including clutch temperatures.
  • KIA/HYUNDAI 1.7 CRDi 2015–2019 — added injector correction value display.
  • Regeneration reminders — option for a recurring “REGENERATION IN PROGRESS” voice notification every 1, 2, 3, 4 or 5 minutes; setting 0 disables reminders.
  • Custom name on the startup screen — option to enter custom text, e.g. a name or vehicle model.
  • Screen-off function — added an option to disable the “double tap to turn off the screen” function.
  • Peugeot / Citroën / DS — added permanent deactivation and reactivation of the Start-Stop system in MD1CS003, EDC17C60, DCM7.1 and DCM6.2.

Pliki do pobrania

File icon DPF Monitor PRO - warunki gwarancji PL.pdf 583.81 kB

Warunki gwarancji - DPF Monitor PRO

File icon v1.1.5_SU_28072026.dpf 4.01 MB
File icon EN - DPF Monitor PRO - manual 11092026.pdf 1.08 MB
File icon CHANGELOG - EN.txt 2.03 kB
